The new NTS25 No-Till Seeder, available in 7′ (2.13m), 9′ (2.74m) , and 11′ (3.35m) widths, makes quick work of your seeding tasks in renovating pastures, reclaiming rights-of-way, and planting food plots. Our NTS25 Series Seeder comes with a variety of features built in and with ease of use in mind. The unit is ground-driven by spikes incorporated into the rear packer-roller; however, the operator can easily disengage any of the seed boxes with simple lockout pins on each drive sprocket or lock out all boxes with one pin on the main sprocket. This American-made seeder comes standard with a main, a small seed and native grass (or fluffy) seed box installed. The NTS is available as a 3-point model or pull-type model with transport wheels. The main and small seeds boxes are calibrated by opening the seed cups with the seed-rate regulator. The native grass box is calibrated with a 4-speed, single-lever gearbox. Aggressiveness of the NTS is controlled by manually angling the front spiked rollers. Seed is dropped and broadcast to the soil below, protected by a metal wind shield, and gently pressed into the soil with the rear cast packer. The digital acre meter keeps track of acres planted.

SPECIFICATIONS

	NTS2507	NTS2509	NTS2511
Model Info	No-Till Seeder (Broadcasting)	No-Till Seeder (Broadcasting)	No-Till Seeder (Broadcasting)
Tractor Attachment	Drawbar	Drawbar	Drawbar
Horsepower	40-120	40-120	40-120
Hitch	Pull-Type with transport wheels	Pull-Type with transport wheels	Pull-Type with transport wheels
Working Width	7′ (2.13m)	9′ (2.74m)	11′ (3.35m)
Length	11′ 1″ (pull-type)	11′ 1″ (pull-type)	11′ 1″ (pull-type)
Height	42″ (1.07m)	42″ (1.07m)	42″ (1.07m)
Weight Pull-Type lbs. (kg)	2787lbs. (1264kg)	3124 (1417kg)	3882(1760kg)
Main Box Capacity	7.5 bu. (264L)	8.8 bu. (310L)	11.3 bu. (398L)
Small Seeds Box	1.7 bu. (60L)	2.0 bu.(70L)	2.6 bu. (92L)

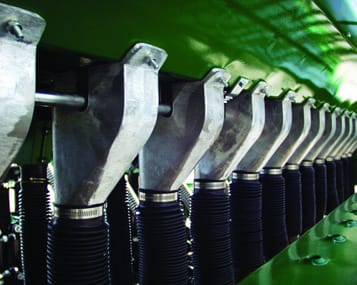

Native Grass Box	8.5 bu. (300L)	9.8 bu. (345L)	12.7 bu. (448L)
Output	Varies by seed, drop spread	Varies by seed, drop spread	Varies by seed, drop spread

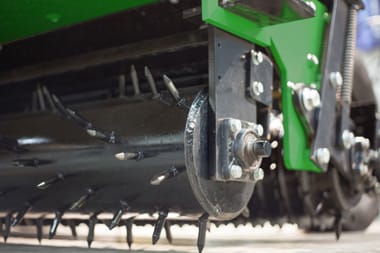

Front Rollers	8-5/8″ diameter, 1″ spindles with greaseable ball bearings	8-5/8″ diameter, 1″ spindles with greaseable ball bearings	8-5/8″ diameter, 1″ spindles with greaseable ball bearings
Front Roller Angle	Up to 18 degrees	Up to 18 degrees	Up to 18 degrees
Front Roller Spikes	1/2″ x 2″, Heat-treated steel, replaceable	1/2″ x 2″, Heat-treated steel, replaceable	1/2″ x 2″, Heat-treated steel, replaceable
Front Packer Roller	11-3/8″ diameter, cast and notched gray iron rings	11-3/8″ diameter, cast and notched gray iron rings	11-3/8″ diameter, cast and notched gray iron rings
Seed Cups-Main Box and Small seeds box (each box)	12	14	18
Standard Factory Equipment
Pull Kit w/ Tongue, Jack, Cylinders, and Hoses – Axle and 2 – 15” Impl. Tires, Recap (4 on 11’) – Rim: 5 bolt (4.5”)	✔	✔	✔
Cylinders Master/Slave: Hitch Cylinder 3.5” x 6” Axle Cylinders 3.25”x 6” and 3” x 6”	✔	✔
Formed Plate A-Frame	✔	✔	✔
3” x 4” Tube Frame	✔	✔	✔
Heavy Duty Lid w/ Seed Splash Guard	✔	✔	✔
Ground Drive Metering	✔	✔	✔
Seed Box Lockouts	✔	✔	✔
Anti-Reverse Clutch to prevent Seed Cup Damage	✔	✔	✔
Fluted Seed Cups for Accurate Metering	✔	✔	✔
Wide Range of Calibration Settings w/ Gearbox and Sprocket and Chain.	✔	✔	✔
Wind Guarded Seed Drop	✔	✔	✔
#40 Chain that is Spring Loaded and has Easy Access.	✔	✔	✔
2 Front Spiked Rollers, adjustable up to 18 Degrees 8 5/8” Diameter, 1” Spindles with Greasable Ball Bearings	✔	✔	✔
Roller Spike: ½” x 2”, Heat Treated Steel, Replaceable	✔	✔	✔
Rear Roller is Straight: 11 3/8” Diameter, Notched, Cast Gray Iron Rings. Single Rear Roller on 7’ Model, Two Rollers on 9’ and 11’.	✔	✔	✔
Lift Hooks	✔	✔	✔
KTA Mandatory Factory Options
Small Seeds Box	✔	✔	✔
Native Grass Box	✔	✔	✔

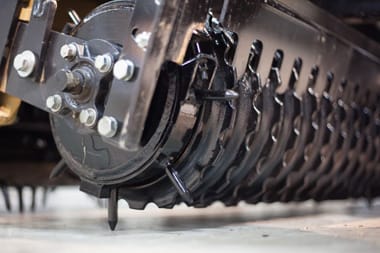

Dual Front Spike Roller with Scraper Bundle	✔	✔	✔
Drawbar Pull Package	✔	✔	✔
Digital Acre Meter	✔	✔	✔
