Great Plains designed its 5′ (154m) 3P500 and 6′ (1.83m) 3P600 Min-Till Drill to get into places big drills simply can’t – like wooded areas, orchards, and vineyards. It is ground-driven and is excellent for seeding into fully prepared and minimum tillage plots. They feature 4-speed gearboxes for fast seed rate changes. It has a seedbox capacity ranges of 10 bushel (352L). A small seeds box with agitator is standard on our 3P500 and 3P600 models to plant two different seeds at the same time.

Other features found on these models include a highly visible seed level indicator; extremely accurate fluted feed cups; V-bottom inserts on the inside of the seedbox that allow all the seed to be metered; a convenient crank to calibrate seed; watertight lids that stay open for easy filling; and splash guards that prevent seed loss.

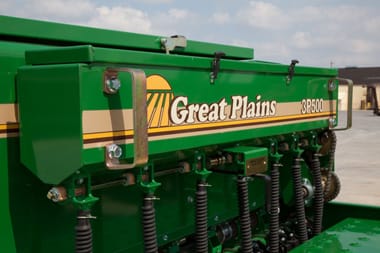

Small Seeds Attachment

Utilises a smaller version of the fluted feed cup to accurately meter tiny seeds like alfalfa and wildflowers

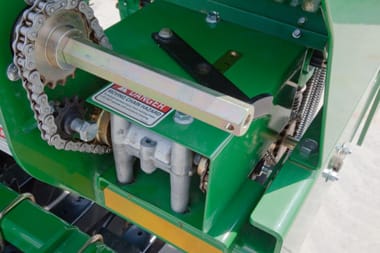

4-speed Gearbox

Lifetime lubricated heavy-duty gearboxes make seed rate changes quick and effortless.

3-point Mounted

Category 1 and Category 2 hitches for easy mounting to different tractors.

Ground Drive

Positive ground drive with eight positions to get the right planting depth for your seed.

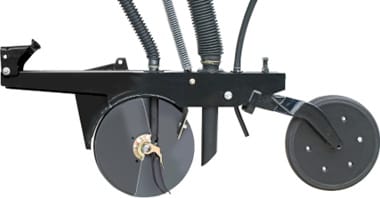

“00” Series Openers

Great Plains 00 Series Openers are designed for min-till fluted feed drills. The 00 Opener features 13.5″ (34cm), 4mm blades mounted on 205 triple-lip sealed bearings. The 00 Opener has a 1/4″ (6mm) leading opener blade to help cut through tough residue. A rear gauge wheel uses a T-handle adjuster to provide 18 depth control settings. Standard 2 x 13 press wheels.

Range of 90 to 180lbs (41kg to 82kg) of consistent down-pressure on press wheels.

	3P500	3P600
Primary Design	Min-Till	Min-Till
Tractor Attachment	3 Point Linkage	3 Point Linkage
Row Spacing	6″ (15.24 cm) 7.5″ (19.05 cm)	6″ (15.24 cm) 7.5″ (19.05 cm)
Number of Rows	9 – 6″ spacing 7 – 7.5″ spacing	11 – 6″ spacing 79-7.5″ spacing
Tyre Size	5.70Lx8	5.70Lx8
Min Engine Horsepower	35 hp	40 hp
Weight approx. (kg)	1,200lbs* (544 kg)	1,500 lbs* (680 kg)
Working Width	52.5″ (133.4 cm)	67.5″ (171.5 cm)
Width	59.3″ (151 cm)	74.1″ (188 cm)
Length (Transport)	57″ (145cm)	57″ (145cm)
Clearance (Transport)	Varies	Varies
Height (Transport)	Varies	Varies
Opener Series	00 Series	00 Series
Opener Travel	6.5″ (16.51 cm)	6.5″ (16.51 cm)
Opener Depth Range	0-3.5″ (0-8.89 cm)	0-3.5″ (0-8.89 cm)
Opener Down Pressure	90-180 lbs (40.82-81.64 kg)	90-180 lbs (40.82-81.64 kg)
Coulter
Main Box Capacity	352L	423L
Small Seed Box	35L	35L
Native Grass Box	✗	✗
Fertiliser	✗	✗
2nd Main Box	✗	✗
Standard Factory Equipment
Category I & II Lower Hitch plates	✔	✔
Center Mounted Single Drive Wheels	✔	✔
Acremeter	✔	✔
231L/m Box Capacity	✔	✔
1 ¾” Fluted Feed Cups w/ Powdered metal flutes	✔	✔
4 Speed Gearbox	✔	✔
“00” Series Openers on 6” & 7 ½” spacing	✔	✔
Direct Link Press Wheel for Depth Control	✔	✔
Heavy Duty Coil Springs	✔	✔
T-Handle Opener Depth Adjustment	✔	✔
Seed tubes & flaps	✔	✔
Walkboard w/Steps	✔	✔
Manual Holder	✔	✔
Light kit	✔	✔
KTA Mandatory Factory Options
Presswheel – 6” & 7 ½” spacing (03)	2×13 Single	2×13 Single
Small Seeds Attachment – 6” & 7 ½” spacing (91)	✔	✔
SeedBox Agitator w/o drive – 6” & 7 ½” spacing	✔	✔
