The Great Plains 3P806NT and 3P1006NT are No-Till Drills and are 2-Point Mounted with lift assist wheels to ensure safe operation and transport. Plant up to three different seeds, at separate rates with lift assist wheels, at the same time with our 2-point mounted 10′ (3.05m) no-till drill with lift-assist wheels. They utilise the 06 Series Openers to properly place seed. The coulters are pre-loaded to 450lbs. (204kg) to ensure proper penetration, even in the toughest conditions. The spring pre-load coulter design adds stability and improved tracking on slopes. Our double disk configuration and full length seed tube ensures that the seed is placed consistently at the chosen depth. Additional seed tubes are used to place both native grass and small seeds. This allows three different seeds to be planted at separate rates and different depths at the same time. Depth control is handled by the 18-position T-handle press wheel adjustment. Coulter blade is our exclusive 5/8″ (16mm) Turbo blades. The main seedbox is a fluted feed design. The seeding rate is set with the 4-speed transmission and the adjustable gate opening. The native grass box which is standard on our machine uses our proven “picker wheel” to meter the seed. Rates are adjusted by varying the speed of the drive. Lastly the small seeds attachment which is also standard is a smaller version of our fluted feed system, and seeding rates are set by changing the opening of the fluted feed. The ground drive system automatically disengages when lifted, simplifying the unit and enhancing its reliability.

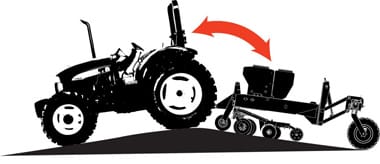

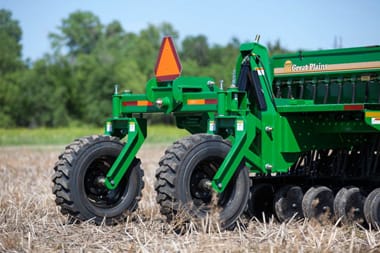

2-point With Lift Assist

Allows for unmatched ground gauging in rough, rolling terrain while ensuring safe operation and transport.

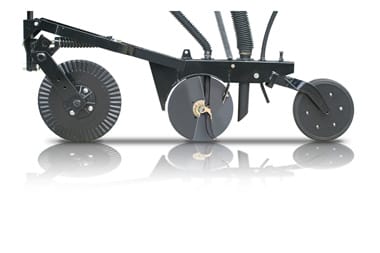

“06” Series Opener

The 06 Series Row unit by Great Plains utilises the “Fluff and Plant” no-till system with an integrally mounted coulter to cut residue and prepare a mini seedbed for the trailing double disc opener. Opener discs are 13.5″ (34cm) in diameter with 4mm thick blades, 205 triple-lip sealed bearings, and 1/4″ (19mm) opener disc lead. A unique seed tube design and trailing flap control the seed all the way to the bottom of the seed trench where the seed stays in place. Pre-loader coulter springs offer 405lbs (204kg) of down pressure per row on the leading coulter with a range of 90 to 180lbs (41kg to 82kg) of consistent down-pressure on press wheels.

SPECIFICATIONS

	3P606NT	3P806NT	3P1006NT
Primary Design	No-Till	No-Till	No-Till
Tractor Attachment	3 Point Linkage	2 Point Linkage	2 Point Linkage
Row Spacing	7.5″ (19.05 cm)	7.5″ (19.05 cm)	7.5″ (19.05 cm)
Number of Rows	9	13	15
Tyre Size	5.70Lx8	265/70B 16.5	265/70B 16.5
Min Engine Horsepower	60 hp	80 hp	100 hp
Weight approx. (kg)	2,280 lbs* (1,034 kg)	4,350 lbs* (1,973 kg)	5,460 lbs* (2,476 kg)
Working Width	67.5″ (171.5 cm)	8′ (2.43 m)	10′ (3.05 m)
Width	72.5″ (184.2 cm)	8’3″ (2.51 m)	9’8″ (2.95 m)
Length (Transport)	61″ (154.9 cm)	12’4″ (3.76 m) w/ lift assist	12’4″ (3.76 m) w/ lift assist
Clearance (Transport)	Varies	Varies by Tractor	Varies by Tractor
Height (Transport)	Varies	7’11” (2.41 m)	7’11” (2.41 m)
Opener Series	06 Series	06 Series	06 Series
Opener Travel	6.5″ (16.51 cm)	6.5″ (16.51 cm)	6.5″ (16.51 cm)
Opener Depth Range	0-3.5″ (0-8.89 cm)	0-3.5″ (0-8.89 cm)	0-3.5″ (0-8.89 cm)
Opener Down Pressure	90-180 lbs (40.82-81.64 kg)	90-180 lbs (40.82-81.64 kg)	90-180 lbs (40.82-81.64 kg)
Coulter	5/8″ Turbo	5/8″ Turbo	5/8″ Turbo
Coulter Pre Load	450 lbs (203 kg)	450 lbs (203 kg)	450 lbs (203 kg)
Main Box Capacity	423L	564L	705L
Small Seed Box	51L	67L	85L
Fertiliser	n/a	210L	261L
Standard Factory Equipment
Category II Lower Hitch plates	Cat II	Cat II	Cat II or III
Acremeter	✔	✔	✔
Center Mounted Single Drive Wheel	✔	✗	✗
2 bu/ft. Box Capacity	✔	✔	✔
1 ¾” (4.4cm) Fluted Feed Cups w/ Powdered metal flutes	✔	✔	✔
Calibration Crank	✔	✔	✔
Grease Bank	✔	✔	✔
4 Speed Gearbox	✔	✔	✔
Direct Link Press Wheel for Depth Control	✔	✔	✔
Heavy Duty Coil Springs	✔	✔	✔
T-Handle Opener Depth Adjustment	✔	✔	✔
Walkboard w/Steps	✔	✔	✔
Spring-Steel Coulter Mounting Bars	✔	✔	✔
Folding Rear Ladder	✗	✔	✔
Safety Lighting	✔	✔	✔
Manual Storing Pak	✔	✔	✔
Seed Level Indicator	✗	✔	✔
Gas Shock Assisted Lids	✗	✔	✔
Rear Lift Assist Wheels	✗	✔	✔
Light Kit	✔	✔	✔
center>KTA Mandatory Factory options
Presswheel	3×13 Ctr Rib	3×13 Ctr Rib	3×13 Ctr Rib
Coulter	5/8″ Turbo	5/8″ Turbo	5/8″ Turbo
Seed and Series II Native Grass If ordered w/95 – (43)	✔	✗	✗
Smallseeds Box	✔	✗	✗
Seed and Fertilzer w/smallseeds – (47)	✗	✔	✔
Agitator w/o drive – Dealer Installed	✔	✔	✔
Weight Bracket and Hardware – (66)	✔	✔	✔
Compact Extension Hitch – provides more clearance between tractor and drill	✗	✔	✔
Europeon Light and Decal Package	✗	✗	✔
