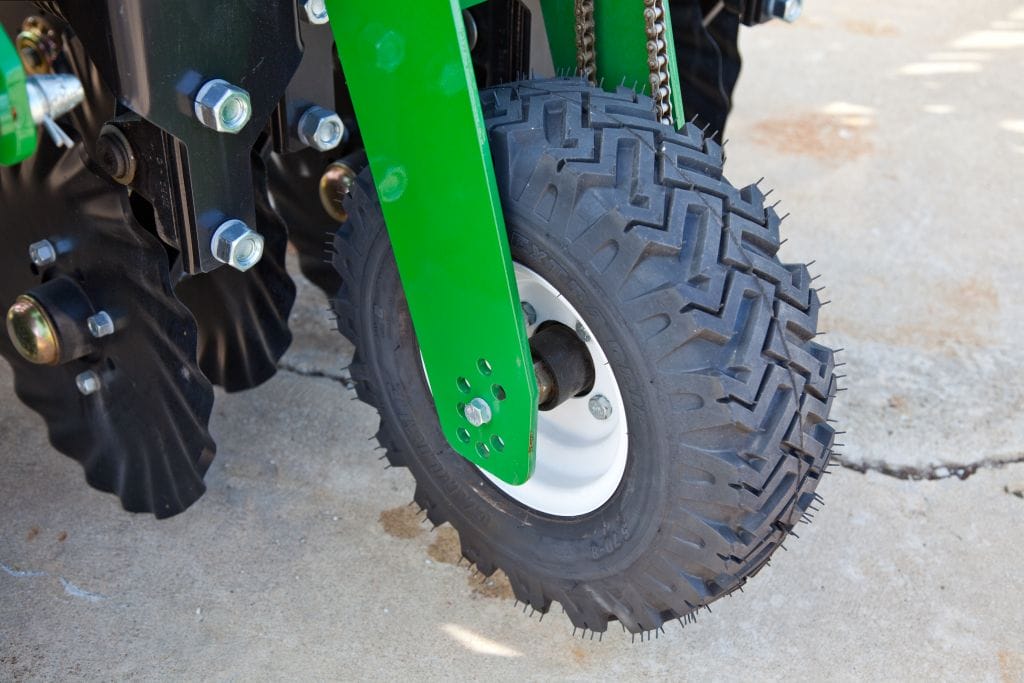

Great Plains 3P606NT 3-Point Mounted No-Till Drills allow you to get close to field edges and, with our proven ground drive, no hydraulics are needed. Standard equipment on this machine is small seed box with agitator and weight brackets. This 6′ (1.83m), 3-point mounted no-till drill is ideal for manoeuvring around obstacles when space is limited or for seeding close to field edges. This heavy-duty no-till drill is loaded with features, including 450-pound (204kg) pre-loaded coulters, a calibration crank that is convenient to access, a ground-driven metering system, rain-tight seedbox lids, and our finest double disk no-till opener. This rugged 6′ (1.83m) seeder is ideal when space is limited or when maneuvering among trees and other obstacles is required. The lead coulters have 4″ (10cm) of stagger to aid in residue flow while preparing a mini-seedbed for the 06 Series Openers to plant into. Coulter blade is our exclusive 5/8″ (16mm) Turbo blades.

SPECIFICATIONS



	3P606NT	3P806NT	3P1006NT
Primary Design	No-Till	No-Till	No-Till
Tractor Attachment	3 Point Linkage	2 Point Linkage	2 Point Linkage
Row Spacing	7.5″ (19.05 cm)	7.5″ (19.05 cm)	7.5″ (19.05 cm)
Number of Rows	9	13	15
Tyre Size	5.70Lx8	265/70B 16.5	265/70B 16.5
Min Engine Horsepower	60 hp	80 hp	100 hp
Weight approx. (kg)	2,280 lbs* (1,034 kg)	4,350 lbs* (1,973 kg)	5,460 lbs* (2,476 kg)
Working Width	67.5″ (171.5 cm)	8′ (2.43 m)	10′ (3.05 m)
Width	72.5″ (184.2 cm)	8’3″ (2.51 m)	9’8″ (2.95 m)
Length (Transport)	61″ (154.9 cm)	12’4″ (3.76 m) w/ lift assist	12’4″ (3.76 m) w/ lift assist
Clearance (Transport)	Varies	Varies by Tractor	Varies by Tractor
Height (Transport)	Varies	7’11” (2.41 m)	7’11” (2.41 m)

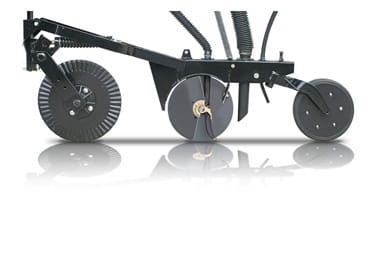

Opener Series	06 Series	06 Series	06 Series
Opener Travel	6.5″ (16.51 cm)	6.5″ (16.51 cm)	6.5″ (16.51 cm)
Opener Depth Range	0-3.5″ (0-8.89 cm)	0-3.5″ (0-8.89 cm)	0-3.5″ (0-8.89 cm)
Opener Down Pressure	90-180 lbs (40.82-81.64 kg)	90-180 lbs (40.82-81.64 kg)	90-180 lbs (40.82-81.64 kg)
Coulter	5/8″ Turbo	5/8″ Turbo	5/8″ Turbo
Coulter Pre Load	450 lbs (203 kg)	450 lbs (203 kg)	450 lbs (203 kg)
Main Box Capacity	423L	564L	705L
Small Seed Box	51L	67L	85L
Fertiliser	n/a	210L	261L
Standard Factory Equipment
Category II Lower Hitch plates	Cat II	Cat II	Cat II or III
Acremeter	✔	✔	✔
Center Mounted Single Drive Wheel	✔	✗	✗
2 bu/ft. Box Capacity	✔	✔	✔
1 ¾” (4.4cm) Fluted Feed Cups w/ Powdered metal flutes	✔	✔	✔
Calibration Crank	✔	✔	✔
Grease Bank	✔	✔	✔
4 Speed Gearbox	✔	✔	✔
Direct Link Press Wheel for Depth Control	✔	✔	✔
Heavy Duty Coil Springs	✔	✔	✔
T-Handle Opener Depth Adjustment	✔	✔	✔
Seed tubes & flaps	✔	✔	✔
Walkboard w/Steps	✔	✔	✔
Spring-Steel Coulter Mounting Bars	✔	✔	✔
Folding Rear Ladder	✗	✔	✔
Safety Lighting	✔	✔	✔
Manual Storing Pak	✔	✔	✔
Seed Level Indicator	✗	✔	✔
Gas Shock Assisted Lids	✗	✔	✔
Rear Lift Assist Wheels	✗	✔	✔
Light Kit	✔	✔	✔
center>KTA Mandatory Factory options
Presswheel	3×13 Ctr Rib	3×13 Ctr Rib	3×13 Ctr Rib
Coulter	5/8″ Turbo	5/8″ Turbo	5/8″ Turbo
Seed and Series II Native Grass If ordered w/95 – (43)	✔	✗	✗
Smallseeds Box	✔	✗	✗
Seed and Fertilzer w/smallseeds – (47)	✗	✔	✔
Agitator w/o drive – Dealer Installed	✔	✔	✔
Weight Bracket and Hardware – (66)	✔	✔	✔
Compact Extension Hitch – provides more clearance between tractor and drill	✗	✔	✔
Europeon Light and Decal Package	✗	✗	✔
