OVERVIEW

COMMON APPLICATIONS

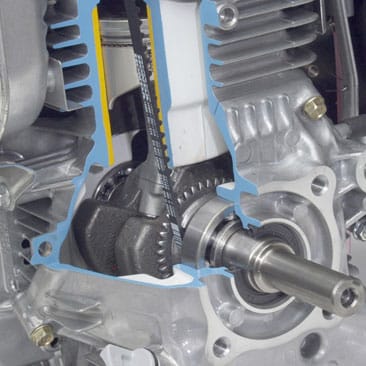

The GSV190 is a smooth operator, perfect for powering everyday products like Commercial & Domestic LawnmowersAgricultural equipment, too, is also found across Australia with a GSV190 offering the power and reliability that Honda is known for.With quiet, smooth performance provided by an internal timing belt and precision engineered and machined components, no matter how you use it, the GSV190 will work quietly for you.

COMPACT AND LIGHTWEIGHT

The GSV190 offers the best of two worlds. It’s built for higher durability, with features like a cast iron cylinder liner and three-piece oil control.And the benefits of a lightweight (it’s the lightest engine in its class), durable, quiet Overhead Cam design mean it’s an excellent choice for demanding homeowner applications and light commercial equipment alike.Honda’s engines are Emissions compliant, with applicable models meeting the strictest world standards. They go a long way to ensure Honda leaves Blue Skies For Our Children.

PROVEN RELIABILITY

A Ball Bearing-supported crankshaft and a dual element air cleaner are incorporated into the GSV190 for an increased work life.A Dua-Lube System provides superior engine lubrication, and it also harbours a proven lifetime timing belt design. You’re in safe hands!And with an easily accessible oil drain & fill and spark plug, and an Auto Choke System available, the GSV190 is easy to use and maintain.

2 YEAR DOMESTIC & COMMERCIAL WARRANTY

A horizontal cross-flow intake port is incorporated in the design to smooth the flow of fuel, and electronic ignition & automatic mechanical de-compression make for easy starting.And, being a Honda, the GSV190 Engine is covered by Honda’s comprehensive 2 Year Domestic and Commercial Warranty.Throw in a network of over 400 authorised Honda dealers around Australia, and you’ve got all the back-up you should ever need!

SPECIFICATIONS

MODEL GSV190
TYPE 4-stroke, overhead cam, single-cylinder, vertical shaft
BORE & STROKE 69 x 50 mm (2.7 x 2.0 in)
DISPLACEMENT 187 cm3 (11.4 cu in)
COMPRESSION RATIO 8.5:1
NET POWER 3.8kW (5.1HP) at 3,600 rpm
CONTINUOUS RATED POWER 2.6 kW (3.5 HP) at 3000 rpm
MAXIMUM NET TORQUE 11.3 Nm (8.3 lbs ft) at 2,500 rpm
IGNITION SYSTEM Transistorised magneto ignition
STARTING SYSTEM Recoil
COOLING SYSTEM Forced-air
PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION AT RATED POWER 1.3 L/hr at 3000 rpm
RECOMMENDED FUEL Unleaded
LUBRICATION SYSTEM Forced Splash
RECOMMENDED OIL 10W/30 API SG
OIL CAPACITY 0.55l
FUEL TANK CAPACITY 0.93l
DIMENSIONS 371mm x 343mm x 368mm
DRY WEIGHT 13.0kg
