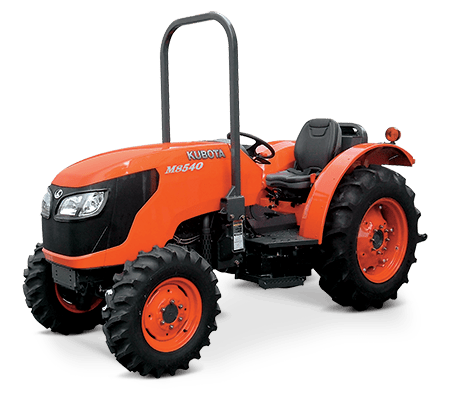

M8540DN
Narrow ROPS Tractor

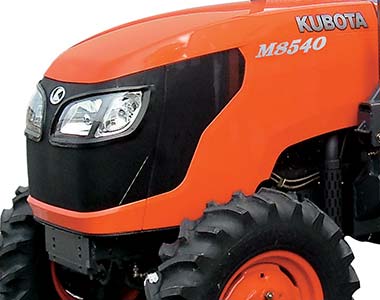

Kubota’s M8540DN speciality tractor is ideal for orchards and vineyards with a narrow build powered by a reliable Kubota 85HP, tier III compliant, 4 cylinder, E-CDIS turbo charged engine. Hydraulic shuttle transmission and Kubota’s Bi-Speed comes as standard, delivering smooth and quick operation. Offers high torque and boasts incredible pulling power.
PERFORMANCE
M8540DCN
Narrow CAB Tractor
Kubota’s M8540DCN speciality tractor is ideal for orchards and vineyards with a narrow build powered by a reliable Kubota 85HP, tier III compliant, 4 cylinder, E-CDIS turbo charged engine. Hydraulic shuttle transmission and Kubota’s Bi-Speed comes as standard, delivering smooth and quick operation. Offers high torque and boasts incredible pulling power. CAB model offers exceptional comfort with ample head clearance and maximum visibility.
| M8540DN | M8540DCN | M8540NPK | ||
|---|---|---|---|---|
| Engine | V3800-DI-TE3 | V3800-DI-TE3 | V3800-DI-TE3 | |
| Make | Kubota | Kubota | Kubota | |
| Type | E-CDIS, Direct Injection | E-CDIS, Direct Injection | E-CDIS, Direct Injection | |
| No. of cylinders | 4 | 4 | 4 | |
| Aspiration | Turbocharged | Turbocharged | Turbocharged | |
| Engine net power HP (kW) | 85.5 | 85.5 | 83.7 (62.4) | |
| PTO power HP (kW) | 76 | 76 | 76.0 (56.6) | |
| Total displacement (cc) | 3769 | 3769 | 3769 | |
| Engine rpm | 2600 | 2600 | 2600 | |
| Fuel tank capacity (L) | 60 | 76 | 70 | |
| Air cleaner | – | – | Dry, dual-element | |
| Alternator (Amp) | 45 | 60 | 60 (80 option) | |
| Transmission | No. of speeds | F15 / R15 (w/ creep | F15 / R15 (w/ creep) | F12 / R12 (w/ creep) |
| Main gear shift | 5 / Fully synchronised | 5 / Fully synchronised | 4 / Fully synchronised | |
| Hydraulic shuttle | Standard | Standard | Standard | |
| Max. speed (km/h) | 33.4 | 33.4 | – | |
| Main clutch type | Hydraulic multi-plate wet disc | Hydraulic multi-plate wet disc | Multi-plate wet disc | |
| Brake type | Hydraulic wet discs, 4 wheel braking | Hydraulic wet discs, 4 wheel braking | Mechanical multi-plate wet discs | |
| Mechanical differential lock | Rear mechanical standard | Rear mechanical standard | Rear mechanical standard | |
| 4WD clutch type | Electro-hydraulic | Electro-hydraulic | Electric-hydraulic | |
| Four wheel braking | – | – | Standard | |
| PTO | Type | Live-independent PTO, electro-hydraulic clutch | Live-independent PTO, electro-hydraulic clutch | Hydraulic independent PTO with PTO brake, wet disc |
| Speed (rpm) | 540/540E | 540/540E | 540/540E | |
| Hydraulics | Pump capacity (3-Point Hitch) (L/min) | 61 | 61 | 61 |
| 3-Point Hitch | Rigid lower link ends | Rigid lower link ends | Telescopic stabiliser | |
| 3-Point Hitch Category | I (II link ends) | I (II link ends) | Cat. I, II (link ends) | |
| 3-Point Hitch Control system | Position, draft (top link sensing) & mix control | Position, draft (top link sensing) & mix control | Position, draft (top link sensing) & mixed control | |
| 3-Point Hitch Lift capacity at 24 in. behind lift point (kg) | – | – | 1800 | |
| 3-Point Hitch Lift capacity at link end (kg) | 2300 | 2300 | 2300 | |
| No. of standard remote valves | 2 standard (3rd & flow control valve optional) | 2 standard (3rd & flow control valve optional) | 2 (3rd and flow control valve optional) | |
| Other features | 4WD drive system | – | – | Bevel gear type |
| Bi-speed turn | Standard | Standard | Standard | |
| Steering | Hydrostatic power steering | Hydrostatic power steering | Hydrostatic power steering | |
| Tilt steering | Standard | Standard | Standard | |
| Hood type | Full-open, slanted, steel | Full-open, slanted, steel | One-Piece full-open, slanted | |
| Pedal type | – | – | Hanging | |
| Deck type (ISO-mounted) | – | – | Semi-flat | |
| Panel type | Electronic | Electronic | LED electronic panel w/ LCD readout (mph & PTO speed) | |
| Standard tyre size | Standard Front | 280 / 70R18 | 280 / 70R18 | 280 / 70R18 |
| Standard Rear | 380 / 70R24 | 380 / 70R24 | – | |
| Rear Crawler | Width (mm) | – | – | 300 |
| Lug height (mm) | – | – | 40 | |
| Grounding pressure (psi kg/cmВІ) | – | – | 4.12 (0.29) | |
| Rocking angle (degrees) | – | – | +10 / -10 | |
| Dimensions & weight | Overall length (mm) | 3620 | 3620 | 3675 |
| Overall height (top of steering) (mm) | 1460 | – | – | |
| Overall height (top of CAB) (mm) | – | 2310 | 2340 | |
| Overall width (Minimum) (mm) | – | – | 1370 | |
| Wheelbase (mm) | 2050 | 2050 | 2153 | |
| Crop clearance (Drawbar Bracket) (mm) | 325 | 325 | 360 | |
| Front tread width (mm) | 1150 | 1150 | 1045 | |
| Rear tread width (mm) | 1066 | 1066 | 1070 | |
| Turning Radius (w/o brake) (m) | 3.5 | 3.5 | 4.0 | |
| Tractor weight (kg) | 2305 | 2460 | 3000 | |
Price on application
