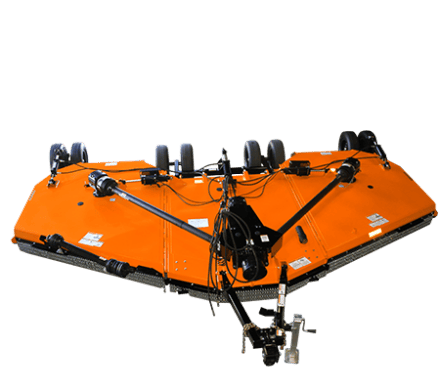

Right of ways, roadsides, pastures, open areas, and row crop fields are all candidates for the RC4620. It handles brush up to 3″ in diameter, and has blade tip speeds up to 18,000 fpm. The gearboxes are rated at 250 HP and 210 HP, centre and wing respectively, and boast 20-spline, 1.75″ input shafts and 2.375″ output shafts. Our gearboxes come with a 7-Year Limited Warranty but unlike the competition, Land Pride pays parts AND labor for a full 5-Years! The main driveline is available as a Cat 6 Constant Velocity, wing drivelines are Cat 5. Rephasing axles allow for shorter axles which in turn leads to less weight on the tractor draw bar. Also included is a new diamond blade bar with an optional bolt-on stump jumper. Decks feature 1⁄4″ side skirts and smooth-top, 10 gauge decks.

---



SPECIFICATIONS



		RCM4620
Horsepower		70-250 HP
Hitch		Pull-Type; LP Performance Self Leveling
Working Width (cm)		20; (609)
Overall Width (cm)		20′ 10″ (636)
Min. Transport Width (cm)		9′ 11″ (302)
Overall Length (cm)		17′ 8″ (540)
Machine Weight – lb (kg)		6,280 (2,849)
Cutting Height (mm)		2″ – 12″ (50-300)
Cutting Capacity (mm)		3″ (76) Diameter
Tongue Weight – lb (kg)		1,750 (794)
Max. Turning Angle		80° with Constant Velocity U-Joint
Deck Height (mm)		13″ (330)
Deck Thickness		10 Gauge
Deck Shock Protection		Spring Cushioned Axle
Deck Rings		Optional
Side Thickness (mm)		14″ (6)
Safety Guards		Front & Rear: Single Chain
Skid Shoes		1 Each Wing, 2 on Center Section, Replaceable
Blades (mm)		1/2″ x 4″ (13 x 100) High Lift
Blade Bolt		Keyed with Hardened Flatwasher & Lock Nut
Blade Tip Speed		1000 RPM: (91.4m/s)
Blade Overlap (mm)		6″ (15)
Blade Bar		1″ Thick, Standard
Dishpan		Round, Dish Shaped, Optional
Hydraulics		Wings: 3″ x 12″ Cylinder, Hoses and Fittings Axle: LG Wing-2-3/4″ x 8″ Cylinder, RH Wing-3-1/4″ x 8″ Hoses, Fittings and Stroke Control Spaces
Gearbox		1000 RPM: 250 HP Splitter, 210 HP Center & Wings
Gearbox Output Shaft (mm)		2-3/8″ (60)
Gearbox Input Shaft		1-3/4″ 20 Spline
Input Driveline		Cat. 6 CV
Connecting Drivelines		Cat. 5
Tires 6 or 8		29′ Used Aircraft
Transport Lights		Standard
