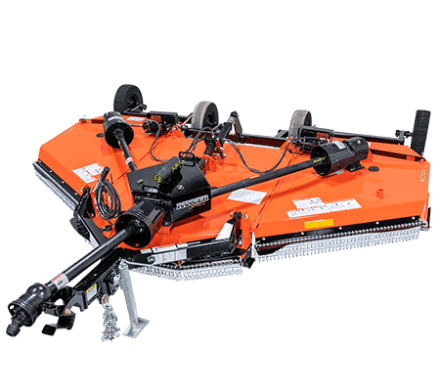

| RC2512 | ||
|---|---|---|
| Horsepower | 40-100 HP | |
| Hitch | Pull-Type; LP Performance Self- Leveling | |
| Working Width (cm) | 12′ (366) | |
| Min. Transport Width (cm) | 7’11” (241) | |
| Overall Width (cm) | 12’7″ (384) | |
| Overall Length (cm) | 13’3″ (404) | |
| Machine Weight – lb (kg) | 2,540 (1152) | |
| Tongue Weight – lb (kg) | 793 (360) | |
| Cutting Height (mm) | 1-1/2″ -12″ (38-300) | |
| Cutting Capacity (mm) | 1-1/2″ (38) | |
| Deck Thickness | 10 Gauge | |
| Deck Height (mm) | 11″ (279) | |
| Deck Shock Protection | Spring Cushioned Center Axle | |
| Side Skirt Thickness (mm) | 3/16″ (4.7) Plate | |
| Safety Guards | Front and Rear Chain – Std. | |
| Skid Shoes | Wings & Center, Replaceable | |
| Blades – 2 per Section | 1/2″ x 3″ (13 .x 75) heat Treated Free Swinging Alloy Steel w/Uplift | |
| Blade Bolt | Keyed with Hardened Flatwasher & Lock Nut | |
| Blade Overlap (mm) | 83.826″ (150) | |
| Blade Speed | Center: 83.82m/s, Wings: 81.28m/s | |
| Dishpan | 10 Gauge, Round, Dish Shaped with 1″ x 3-1/2″ Blade Bar | |
| Wing Cutting Angle | 22° Down, 45° Up | |
| Wing Transport Locks | Standard | |
| Wing Hydraulics | 2″ x 8″ Cylinder, Hoses & Fittings | |
| Height Adjustments | 2-1/2″ x 8″ Cylinder, Hose, Fittings & Stroke Control Spacers | |
| Gearbox Rating^ | 540 RPM: 160 HP Divider; 100 HP Center & Wings | |
| Gearbox Input Shaft (mm) | 1-3/8″ 6 Spline | |
| Gearbox Output Shaft (mm) | 1-1/2″ (38) | |
| Input Driveline | Constant Velocity U-Joint, Cat. 4 | |
| Connecting Driveline | Cat. 3 Slip-Clutch | |
| Wheels (4) | 20.5″ Aircraft Tires Tapered Roller Bearings & Cast Iron 5-Bolt Hubs with 1-3/4″ Shaft | |
| Transport Lights | Standard |
