The Center Pivot Hitch (CPH) is designed to turn your basic 3-point drill (1200 & 1500) into a fully featured no-till drill, complete with coulters and adjustable down-pressure. The CPH allows you to choose between having the drill rigid or float independently of the hitch.
To increase the coulter depth, simply shorten the tongue cylinder. The unique design of CPHs and PFHs transfer weight from the tractor to the coulters to aid in penetration.
Great Plains is the only no-till system that plants properly on curves and contours. Our CPH (Center Pivot Hitch) and PFH (Precision Fertilizer Hitch) aligns the coulters with the openers for perfect tracking. As the illustration demonstrates, competitive brand pivoting coulters cannot maintain proper tracking.

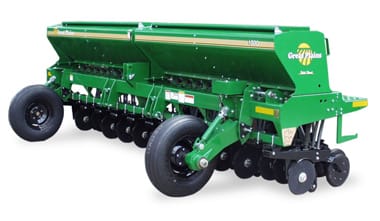

The 1200 & 1500 3-Point Drills are 12′ (3.66m) and 15′ (4.57m) Mounted Min-Till Drills that, when combined with a CPH (Center Pivot Hitch), turns into a formidable no-till machine.
| 800 | 1200 | 1300F | 1500 Indent only | CPH12 | CPH15 Indent only | |
|---|---|---|---|---|---|---|
| Primary Design | End Wheel Min-Till | Min-Till (No-Till w/CPH or PFH) | End Wheel Min-Till | Min-Till (No-Till w/CPH or PFH) | No-Till Centre Pivot Hitch req. for 1200 | No-Till Centre Pivot Hitch req. for 1500 |
| Tractor Attachment | Drawbar | 3 Point Linkage | Drawbar | 3 Point Linkage | Drawbar | Drawbar |
| Row Spacing | 6″ (15.24 cm) | 6″ (15.4 cm) | 6″ (15.4 cm) | 6″ (15.4 cm) | 6″ (15.4 cm) | 6″ (15.4 cm) |
| Number of Rows | 15 – 6″ spacing | 24 – 6″ spacing | 24 – 6″ spacing | 30 – 6″ spacing | ||
| Tyre Size | 7.00-15LT 8-ply | 9.5Lx15 | 7.5 x 20, 4-ply Rib Implement | 9.5Lx15 | 9.5L x 15″ | 9.5L x 15″ |
| Min Engine Horsepower | 45 hp | 85+ (63 kw) | 65+ | 110+ (82kw) | – | – |
| Weight approx. (kg) | 2,379 lbs* (1,079 kg) | 2,359-2,959 lbs (1,070-1,342 kg) | 3,900 – 8,100lbs (1769-3674kg) | 3,093-3,573 lbs (1,403-1,621 kg) | – | – |
| Working Width | 8′ (2.44m) | 12′ (3.66 m) | 13′ (3.96m) | 15′ (4.57m) | 12′ (3.66 m) | 15′ (4.57m) |
| Width | 9’9″ (2.97 m) | 12′ 11″ (3.94 m) | 15′ 7″ (4.74m) | 15′ 11″ (4.85m) | 12′ 2″ | 15′ 4″ |
| Length (Transport) | 12′ (3.66 m) | 12′ 6″ (3.81m) | 17′ 8″ | 17′ 8″ | ||
| Clearance (Transport) | 9″ (22.86 cm) | 1′ 5″ (43.2 cm) | 9″ (22.9cm) | 17″ (43.2cm) | – | – |
| Height (Transport) | 5’4″ (1.63 m) | Varies by Tractor | 5′ 6″ (1.68m) | Varies by Tractor | 8′ 11″ | 8′ 11″ |
| Opener Series | 00 Series | 00 Series | 00F Series | 00 Series | – | – |
| Opener Travel | 8″ (20.32 cm) | 8″ (20.32 cm) | 8″ (20.32 cm) | 8″ (20.32 cm) | – | – |
| Opener Depth Range | 0-3.5″ (0-8.89 cm) | 0-3.5″ (0-8.89 cm) | 0-3.5″ (0-8.89 cm) | 0-3.5″ (0-8.89 cm) | 0 to 6″ | 0 to 6″ |
| Opener Down Pressure | 90-180 lbs (40.82-81.64 kg) | 90-180 lbs (40.82-81.64 kg) | 90-180 lbs (40.82-81.64 kg) | 90-180 lbs (40.82-81.64 kg) | – | – |
| Coulter | – | – | – | – | 5/8″ Turbo | 5/8″ Turbo |
| Coulter Pre Load | – | – | – | – | 203kg | 203kg |
| Main Box Capacity | 16 bu. (564L) | 28.8 bu (1015L) | 43.2 bu (1522L) | 36 bu (1269L) | – | – |
| Small Seed Box | 2 bu. (67L) | 2.62 bu (92.3L) | 3.2 bu (112L) | 3.6 bu (127L) | – | – |
| Fertiliser | 8 cu./ft. (227L) | 12 cu/ft (339L) | Up to 45% seed box | 15 cu ft (529L) | – | – |
| 4 speed gearbox | ✔ | ✔ | ✔ | ✔ | – | – |
| Electronic acre meter | ✔ | ✔ | ✔ | ✔ | – | – |
| Walkboard & ladder/step | ✔ | ✔ | ✔ | ✔ | – | – |
| Safety lighting package w/brake signal function module | ✔ | ✔ | – | ✔ | – | – |
| Seed cup w/ powdered metal flutes | ✔ | ✔ | ✔ | ✔ | – | – |
| Lock-out hub | ✔ | ✔ | ✔ | – | – | |
| Weather proof lids | ✔ | ✔ | ✔ | – | – | |
| V-bottom dividers | ✔ | ✔ | ✔ | ✔ | – | – |
| Seed box level indicator | ✔ | ✔ | ✔ | ✔ | – | – |
| Folding tongue | ✔ | – | – | – | – | – |
| Jack stand | ✔ | – | ✔ | – | – | – |
| Cylinder kit | ✔ | – | – | – | – | – |
| Calibration crank | ✔ | ✔ | ✔ | ✔ | – | – |
| 700-15 LT tires | ✔ | – | – | – | – | – |
| Safety chain | ✔ | – | ✔ | – | – | – |
| T-handle depth control adjustment | ✔ | ✔ | ✔ | ✔ | – | – |
| Light Kit | ✔ | ✔ | ✔ | ✔ | – | – |
| Category II, II & III N hitch | – | ✔ | – | ✔ | Cat II | Cat II |
| Slotted clevis gauge wheel turnbuckle | – | ✔ | – | ✔ | – | – |
| Gauge wheel brake | – | ✔ | – | ✔ | – | – |
| Protected gauge wheel drive chain | – | ✔ | – | ✔ | – | – |
| Lift assist cylinder on box lid | – | ✔ | – | ✔ | – | – |
| Seed tubes & flaps | – | ✔ | – | ✔ | – | – |
| Hex drive shafts | – | ✔ | – | ✔ | – | – |
| Press Wheel | 2×13 Single | 2×13 Single | 2×13 Single | 2×13 Single | ||
| 2×13 Adjustable Press Wheel Scraper | – | ✔ | ✔ | ✔ | – | – |
| Box – Seed, Smallseeds & Fertilizer (48) | ✔ | ✔ | – | – | – | – |
| Box – Smallseeds (93) | – | – | ✔ | – | – | – |
| Main Box Agitator w/o drive – Dealer Fitment | ✔ | ✔ | ✔ | ✔ | – | – |
| (57) Single GW Skid Steer Wheels | – | – | ✔ | – | – | |
| Reversible Fertiliser Partition (1300F Only) | – | – | ✔ | – | – | – |
| Hydraulic Bypass Kit use with LS | – | – | – | – | ✔ | ✔ |
