Our Great Plains 8′ (2.43m) Min-Till Drill (800) uses the field-proven 00 Series Opener to properly place seed. This rugged opener utilises 13-1/2″ (34cm), 4mm thick disk blades with 205 triple lip seals for long life. It also features full length seed tubes and an 18-position T-handle press wheel to precisely control depth. Changing the 5-position, centrally located down-pressure adjustment is quick and easy, ensuring the correct pressure regardless of the conditions.
Other features include a 1-3/4″- (4.4cm) wide fluted feed metering system. It utilises a 4-speed gearbox and adjustable gate opening to accurately set a wide variety of planting rates for seeding crops from alfalfa to peas. A dry fertiliser and a small seeds attachment are standard equipment for Australian conditions.
Lockout hubs free the drive component system during transport. Safety lighting, electronic acre meter, lift cylinder with hoses, calibration crank, V-bottom dividers for easy cleanout, a folding tongue and agitators inside the seed box are all standard equipment.
Disengages all drive components, reducing wear and tear during tr

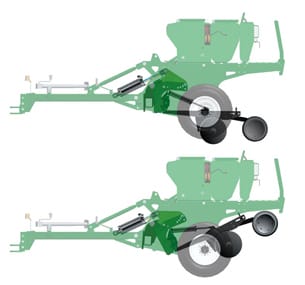

Tractor hydraulics raise and lower the openers quickly. They also apply static down-pressure to the row units.
Specialty seeds are expensive. Calibrating your machine allows you to control the amount you use.

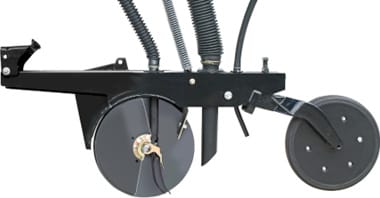

Equipped with our rugged 00 Series Openers to provide accurate and consistent seed placement. Our 00 Openers have 7″ of stagger to allow residue to easily flow through the unit. Inside the opener, our full length seed tube gently guides the seed all the way to the bottom of the trench while the seed flap ensures the seed stays in place, eliminating the seed “bounce” that is created by competitive drills. The trailing press wheels maintain proper opener depth, close the seed trench, and firm the seed into the soil. T-handles quickly adjust the press wheels and allow for small incremental changes in planting depth.
Range of 90 to 180lbs (41kg to 82kg) of consistent down-pressure on press wheels.
| 800 | 1200 | 1300F | 1500 Indent only | CPH12 | CPH15 Indent only | |
|---|---|---|---|---|---|---|
| Primary Design | End Wheel Min-Till | Min-Till (No-Till w/CPH or PFH) | End Wheel Min-Till | Min-Till (No-Till w/CPH or PFH) | No-Till Centre Pivot Hitch req. for 1200 | No-Till Centre Pivot Hitch req. for 1500 |
| Tractor Attachment | Drawbar | 3 Point Linkage | Drawbar | 3 Point Linkage | Drawbar | Drawbar |
| Row Spacing | 6″ (15.24 cm) | 6″ (15.4 cm) | 6″ (15.4 cm) | 6″ (15.4 cm) | 6″ (15.4 cm) | 6″ (15.4 cm) |
| Number of Rows | 15 – 6″ spacing | 24 – 6″ spacing | 24 – 6″ spacing | 30 – 6″ spacing | — | — |
| Tyre Size | 7.00-15LT 8-ply | 9.5Lx15 | 7.5 x 20, 4-ply Rib Implement | 9.5Lx15 | 9.5L x 15″ | 9.5L x 15″ |
| Min Engine Horsepower | 45 hp | 85+ (63 kw) | 65+ | 110+ (82kw) | — | — |
| Weight approx. (kg) | 2,379 lbs* (1,079 kg) | 2,359-2,959 lbs (1,070-1,342 kg) | 3,900 – 8,100lbs (1769-3674kg) | 3,093-3,573 lbs (1,403-1,621 kg) | — | — |
| Working Width | 8′ (2.44m) | 12′ (3.66 m) | 13′ (3.96m) | 15′ (4.57m) | 12′ (3.66 m) | 15′ (4.57m) |
| Width | 9’9″ (2.97 m) | 12′ 11″ (3.94 m) | 15′ 7″ (4.74m) | 15′ 11″ (4.85m) | 12′ 2″ | 15′ 4″ |
| Length (Transport) | 12′ (3.66 m) | — | 12′ 6″ (3.81m) | — | 17′ 8″ | 17′ 8″ |
| Clearance (Transport) | 9″ (22.86 cm) | 1′ 5″ (43.2 cm) | 9″ (22.9cm) | 17″ (43.2cm) | — | — |
| Height (Transport) | 5’4″ (1.63 m) | Varies by Tractor | 5′ 6″ (1.68m) | Varies by Tractor | 8′ 11″ | 8′ 11″ |
| Opener Series | 00 Series | 00 Series | 00F Series | 00 Series | — | — |
| Opener Travel | 8″ (20.32 cm) | 8″ (20.32 cm) | 8″ (20.32 cm) | 8″ (20.32 cm) | — | — |
| Opener Depth Range | 0-3.5″ (0-8.89 cm) | 0-3.5″ (0-8.89 cm) | 0-3.5″ (0-8.89 cm) | 0-3.5″ (0-8.89 cm) | 0 to 6″ | 0 to 6″ |
| Opener Down Pressure | 90-180 lbs (40.82-81.64 kg) | 90-180 lbs (40.82-81.64 kg) | 90-180 lbs (40.82-81.64 kg) | 90-180 lbs (40.82-81.64 kg) | — | — |
| Coulter | — | — | — | — | 5/8″ Turbo | 5/8″ Turbo |
| Coulter Pre Load | — | — | — | — | 203kg | 203kg |
| Main Box Capacity | 16 bu. (564L) | 28.8 bu (1015L) | 43.2 bu (1522L) | 36 bu (1269L) | — | — |
| Small Seed Box | 2 bu. (67L) | 2.62 bu (92.3L) | 3.2 bu (112L) | 3.6 bu (127L) | — | — |
| Fertiliser | 8 cu./ft. (227L) | 12 cu/ft (339L) | Up to 45% seed box | 15 cu ft (529L) | — | — |
| 4 speed gearbox | ✔ | ✔ | ✔ | ✔ | — | — |
| Electronic acre meter | ✔ | ✔ | ✔ | ✔ | — | — |
| Walkboard & ladder/step | ✔ | ✔ | ✔ | ✔ | — | — |
| Safety lighting package w/brake signal function module | ✔ | ✔ | — | ✔ | — | — |
| Seed cup w/ powdered metal flutes | ✔ | ✔ | ✔ | ✔ | — | — |
| Lock-out hub | ✔ | ✔ | — | ✔ | — | — |
| Weather proof lids | ✔ | ✔ | — | ✔ | — | — |
| V-bottom dividers | ✔ | ✔ | ✔ | ✔ | — | — |
| Seed box level indicator | ✔ | ✔ | ✔ | ✔ | — | — |
| Folding tongue | ✔ | — | — | — | — | — |
| Jack stand | ✔ | — | ✔ | — | — | — |
| Cylinder kit | ✔ | — | — | — | — | — |
| Calibration crank | ✔ | ✔ | ✔ | ✔ | — | — |
| 700-15 LT tires | ✔ | — | — | — | — | — |
| Safety chain | ✔ | — | ✔ | — | — | — |
| T-handle depth control adjustment | ✔ | ✔ | ✔ | ✔ | — | — |
| Light Kit | ✔ | ✔ | ✔ | ✔ | — | — |
| Category II, II & III N hitch | — | ✔ | — | ✔ | Cat II | Cat II |
| Slotted clevis gauge wheel turnbuckle | — | ✔ | — | ✔ | — | — |
| Gauge wheel brake | — | ✔ | — | ✔ | — | — |
| Protected gauge wheel drive chain | — | ✔ | — | ✔ | — | — |
| Lift assist cylinder on box lid | — | ✔ | — | ✔ | — | — |
| Seed tubes & flaps | — | ✔ | — | ✔ | — | — |
| Hex drive shafts | — | ✔ | — | ✔ | — | — |
| Press Wheel | 2×13 Single | 2×13 Single | 2×13 Single | 2×13 Single | — | — |
| 2×13 Adjustable Press Wheel Scraper | — | ✔ | ✔ | ✔ | — | — |
| Box – Seed, Smallseeds & Fertilizer (48) | ✔ | ✔ | — | — | — | — |
| Box – Smallseeds (93) | — | — | ✔ | — | — | — |
| Main Box Agitator w/o drive – Dealer Fitment | ✔ | ✔ | ✔ | ✔ | — | — |
| (57) Single GW Skid Steer Wheels | — | — | — | ✔ | — | — |
| Reversible Fertiliser Partition (1300F Only) | — | — | ✔ | — | — | — |
| Hydraulic Bypass Kit use with LS | — | — | — | — | ✔ | ✔ |
