| 800 | 1200 | 1300F | 1500 Indent only | CPH12 | CPH15 Indent only | |
|---|---|---|---|---|---|---|
| Primary Design | End Wheel Min-Till | Min-Till (No-Till w/CPH or PFH) | End Wheel Min-Till | Min-Till (No-Till w/CPH or PFH) | No-Till Centre Pivot Hitch req. for 1200 | No-Till Centre Pivot Hitch req. for 1500 |
| Tractor Attachment | Drawbar | 3 Point Linkage | Drawbar | 3 Point Linkage | Drawbar | Drawbar |
| Row Spacing | 6″ (15.24 cm) | 6″ (15.4 cm) | 6″ (15.4 cm) | 6″ (15.4 cm) | 6″ (15.4 cm) | 6″ (15.4 cm) |
| Number of Rows | 15 – 6″ spacing | 24 – 6″ spacing | 24 – 6″ spacing | 30 – 6″ spacing | — | — |
| Tyre Size | 7.00-15LT 8-ply | 9.5Lx15 | 7.5 x 20, 4-ply Rib Implement | 9.5Lx15 | 9.5L x 15″ | 9.5L x 15″ |
| Min Engine Horsepower | 45 hp | 85+ (63 kw) | 65+ | 110+ (82kw) | — | — |
| Weight approx. (kg) | 2,379 lbs* (1,079 kg) | 2,359-2,959 lbs (1,070-1,342 kg) | 3,900 – 8,100lbs (1769-3674kg) | 3,093-3,573 lbs (1,403-1,621 kg) | — | — |
| Working Width | 8′ (2.44m) | 12′ (3.66 m) | 13′ (3.96m) | 15′ (4.57m) | 12′ (3.66 m) | 15′ (4.57m) |
| Width | 9’9″ (2.97 m) | 12′ 11″ (3.94 m) | 15′ 7″ (4.74m) | 15′ 11″ (4.85m) | 12′ 2″ | 15′ 4″ |
| Length (Transport) | 12′ (3.66 m) | 12′ 6″ (3.81m) | 17′ 8″ | 17′ 8″ | ||
| Clearance (Transport) | 9″ (22.86 cm) | 1′ 5″ (43.2 cm) | 9″ (22.9cm) | 17″ (43.2cm) | — | — |
| Height (Transport) | 5’4″ (1.63 m) | Varies by Tractor | 5′ 6″ (1.68m) | Varies by Tractor | 8′ 11″ | 8′ 11″ |

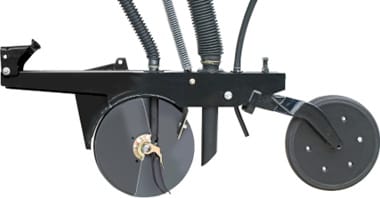

| Opener Series | 00 Series | 00 Series | 00F Series | 00 Series | — | — |
| Opener Travel | 8″ (20.32 cm) | 8″ (20.32 cm) | 8″ (20.32 cm) | 8″ (20.32 cm) | — | — |
| Opener Depth Range | 0-3.5″ (0-8.89 cm) | 0-3.5″ (0-8.89 cm) | 0-3.5″ (0-8.89 cm) | 0-3.5″ (0-8.89 cm) | 0 to 6″ | 0 to 6″ |
| Opener Down Pressure | 90-180 lbs (40.82-81.64 kg) | 90-180 lbs (40.82-81.64 kg) | 90-180 lbs (40.82-81.64 kg) | 90-180 lbs (40.82-81.64 kg) | — | — |
| Coulter | — | — | — | — | 5/8″ Turbo | 5/8″ Turbo |
| Coulter Pre Load | — | — | — | — | 203kg | 203kg |
| Main Box Capacity | 16 bu. (564L) | 28.8 bu (1015L) | 43.2 bu (1522L) | 36 bu (1269L) | — | — |
| Small Seed Box | 2 bu. (67L) | 2.62 bu (92.3L) | 3.2 bu (112L) | 3.6 bu (127L) | — | — |

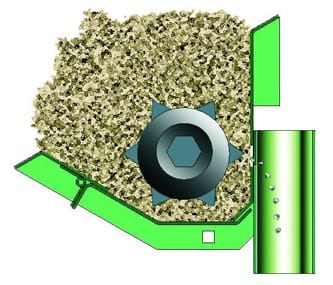

| Fertiliser | 8 cu./ft. (227L) | 12 cu/ft (339L) | Up to 45% seed box | 15 cu ft (529L) | — | — |
| Standard Factory Equipment | ||||||
| 4 speed gearbox | ✔ | ✔ | ✔ | ✔ | — | — |
| Electronic acre meter | ✔ | ✔ | ✔ | ✔ | — | — |
| Walkboard & ladder/step | ✔ | ✔ | ✔ | ✔ | — | — |
| Safety lighting package w/brake signal function module | ✔ | ✔ | — | ✔ | — | — |

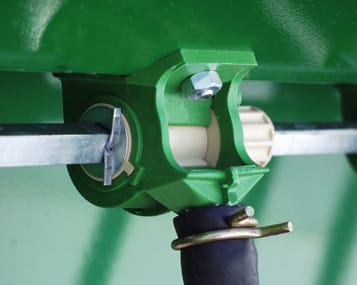

| Seed cup w/ powdered metal flutes | ✔ | ✔ | ✔ | ✔ | — | — |
| Lock-out hub | ✔ | ✔ | — | ✔ | — | — |
| Weather proof lids | ✔ | ✔ | — | ✔ | — | — |
| V-bottom dividers | ✔ | ✔ | ✔ | ✔ | — | — |
| Seed box level indicator | ✔ | ✔ | ✔ | ✔ | — | — |
| Folding tongue | ✔ | — | — | — | — | — |
| Jack stand | ✔ | — | ✔ | — | — | — |
| Cylinder kit | ✔ | — | — | — | — | — |
| Calibration crank | ✔ | ✔ | ✔ | ✔ | — | — |
| 700-15 LT tires | ✔ | — | — | — | — | — |
| Safety chain | ✔ | — | ✔ | — | — | — |
| T-handle depth control adjustment | ✔ | ✔ | ✔ | ✔ | — | — |
| Light Kit | — | — | — | — | — | — |
| Category II, II & III N hitch | ✔ | ✔ | Cat II | Cat II | ||
| Slotted clevis gauge wheel turnbuckle | — | ✔ | — | ✔ | — | — |
| Gauge wheel brake | — | ✔ | — | ✔ | — | — |
| Protected gauge wheel drive chain | — | ✔ | — | ✔ | — | — |
| Lift assist cylinder on box lid | — | ✔ | — | ✔ | — | — |
| Seed tubes & flaps | — | ✔ | — | ✔ | — | — |
| Hex drive shafts | — | ✔ | — | ✔ | — | — |
| KTA Mandatory Factory options | ||||||
| Press Wheel | 2×13 Single | 2×13 Single | 2×13 Single | 2×13 Single | ||
| 2×13 Adjustable Press Wheel Scraper | ✔ | ✔ | ✔ | — | — | |
| Box – Seed, Smallseeds & Fertilizer (48) | ✔ | ✔ | — | — | — | — |
| Box – Smallseeds (93) | — | — | ✔ | — | — | — |
| Main Box Agitator w/o drive – Dealer Fitment | ✔ | ✔ | ✔ | ✔ | — | — |
| (57) Single GW Skid Steer Wheels | — | — | — | ✔ | — | — |
| Reversible Fertiliser Partition (1300F Only) | — | — | ✔ | — | — | — |
| Hydraulic Bypass Kit use with LS | — | — | — | — | ✔ | ✔ |
