The powerful WX10 is an economical 1″ volume pump with a 36m head that delivers a maximum of 140 litres per minute.

OVERVIEW

LIGHTWEIGHT & POWERFUL

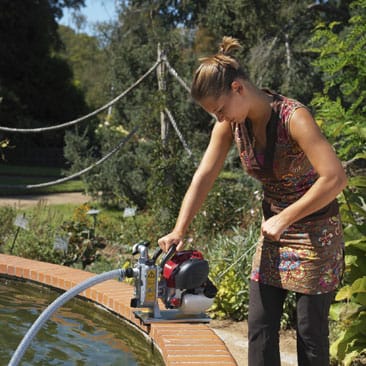

A portable and versatile pump, the WX10 is able to handle large volumes of clean water, making it ideal for irrigation, drainage, general purpose cleaning and many other applications.It’s powered by Honda’s Generation II mini 4-Stroke GX25 engine, a leader of its class and the same engine that powers many of Honda’s handheld products.Featuring an economical 1″ volume pump, a maximum suction head of 8m and a total head of 36m, it delivers up to 140 litres of water per minute.

EASY & FRIENDLY

Like most Honda Power Equipment products, the WX10 starts first time, every time with Honda’s famous one pull easy start system.Being powered by a long-lasting, efficient Honda engine, you’ll never have to mix oil and petrol again.That makes the WX10 an environmentally-friendly Volume Pump with low emissions, less noise than the competition and low fuel consumption.

HONDA PUMP RANGE

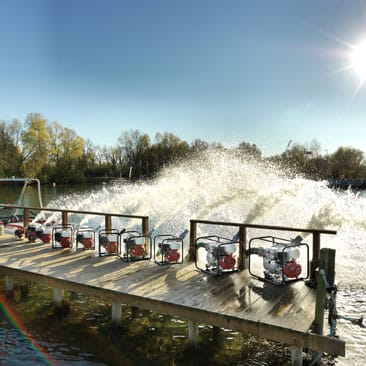

Honda Water Pumps offer a level of uncompromising performance to a wide variety of water transfer applications.Designed for easy starting, priming and dependable service, used throughout the world for over 20 years, Honda water pumps have earned a reputation for unsurpassed reliability and performance.These pumps are known for their durable construction, quality engines and easy portability; features that apply to all categories of Honda pumps.

WARRANTY

All Honda pumps come with an impressive 4 Year Domestic Warranty and 1 Year Commercial Warranty, giving you added peace of mind.When combined with a network of over 450 authorised independent dealers around Australia, you’ve got some serious back-up with a Honda pump.There’s no question; if you’re after a quality investment that won’t let you down, the Honda WX10 is just the pump for you.

SPECIFICATIONS

ENGINE GX25
DISPLACEMENT (CC) 25cc
FUEL TYPE Unleaded
FUEL TANK CAPACITY 0.55 litres
FUEL CONSUMPTION 0.54 l/hr
TOTAL HEAD 36m
SUCTION HEAD 8m
MAXIMUM PUMPING CAPACITY 140 litres
SUCTION PORT DIAMETER 25mm
DISCHARGE PORT DIAMETER 25mm
MAXIMUM PUMPING CAPACITY 140 l/min
SELF PRIMING TIME (AT 5m) 80 sec at 5m
PUMP TYPE Centrifugal volume pump
OIL ALERT No
DIMENSIONS 325 x 220 x 300
DRY WEIGHT (KG) 6.1
MOUNTING TYPE No
HOSE BAND/STAINER Yes
