T Series

Powerful, efficient and comfortable, Kubota’s T Series ride-on mower range has been created with the residential customer in mind. We know your time is valuable, that’s why we created the T Series range to help you get more out of your day, achieving perfectly manicured lawns without the fuss. With easy maintenance and long service life, you will come to rely on the Kubota T Series for years of dependable use.

The New Kubota T90 Series

T2090BR/T2290KW/T2290KWT

The Kubota T Series lawn tractor range combines powerful performance, efficiency and comfort, creating perfectly manicured lawns without the fuss. Built with fabricated mower decks, a durable tubular frame structure, and cast iron front axle for years of dependable work. Powered by 20 and 22HP petrol engines and hydrostatic transmissions, the Kubota T Series makes even the biggest jobs effortless.

Features

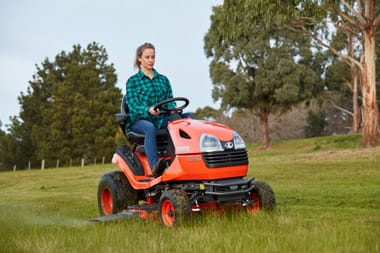

PERFORMANCE

• Rugged and dependable petrol engines have plenty of power to get you up the hill without stalling. Both the T2090 and T2290 have powerful 2-cylinder V-twin engines.
• Hydrostatic transmissions make operation easy and precise. A single pedal controls speed and direction changes quickly, without shifting or clutching. This system keeps your hands free for precise steering at all times, especially when working in confined spaces.
• Cruise control feature allows you to maintain a constant mowing speed without having to hold down the speed control pedal.
• One step parking brake makes parking quick, easy and safe.
• Just 14″ is all you need to turn a T Series lawn tractor. This best in class turning radius is very handy when maneuvering around posts, garden beds, and other hard to mow-around objects.
• Cast from ductile cast iron, the T Series strong and durable front axle easily handles bumps and shocks of mowing jobs to ensure a long and dependable service life.
• A tubular-frame structure enhances the T series already exceptional durability, rigidity, and strength. Even under tough terrain conditions—irregular lawn layouts, or steep slopes, your T series lawn tractor will continue to provide years of dependable service.

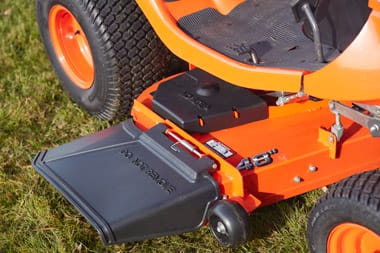

MOWER DECK

• Built with Kubota’s reputation for quality, fabricated mower decks are featured on T Series’ mowers providing excellent rigidity and strength for years of trouble-free operation, reduced maintenance and dependable service.
• An optional mulching kit can be fitted to convert the mower deck into a high-precision mulching deck that produces a fine mulch and sends it straight back into the turf.
• Two sized mower decks are available, 42″ for easy access into tight areas, or 48″ for a wider cutting width.
• Optional grass catchers are available. Due to the powerful flow of the fabricated mower deck, a blower is not needed—the deck does all the work. With this design, attaching the grass catcher is simple, making it easier to switch between grass catching and discharging.

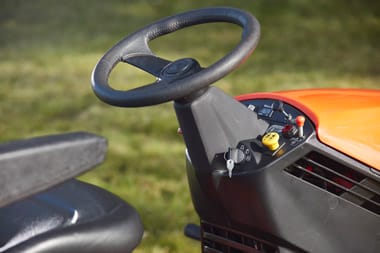

COMFORT

• Adjust the mower decks cutting height easily with Kubota’s simple dial type design, that’s ergonomically positioned on the right hand fender. Simply turn the control dial to your desired cutting height.
• The lift lever releases the mower deck easily to raise or lower as needed.
• The T Series features the flattest foot rest in its class— no bumps, no humps, nothing to get in the way of your feet and your comfort as you work. Getting on and off are easier too!
• Deluxe 21″ high back seat adjusts easily to accommodate different sized operators. Armrest are standard on T2290 models.
• The T2290 features a high-back suspension seat with parallel link suspension that provides an even greater level of comfort and support. The seat adjusts a full 4 inches forward and back, letting you find just the right seating position.
• A thick, easier to grip steering wheel ensures maximum control and ease of operation while reducing vibrations. The steering wheel is positioned higher to enhance operator comfort and control.

SPECIFICATIONS

T Series Specifications

Model			T2090BR-42-AU	T2290KW-42-AU	T2290KWT-48-AU
Engine	Model		GH660V	GH739V-3
	Type		Air cooled 2 cylinders petrol engine
	Gross Horsepower	HP	20*	21.5**
	Total displacement	cu.in. (cc)	40.0 (656)	44.3 (726)
	Starting system		Key switch
Dimensions	Overall length	mm	1900		1910
	Overall width w/ Mower	mm	1392		1540
	Overall width w/o Mower	mm	1010
	Overall height	mm	1305	1310
Minimum ground clearance		mm	140		145
Wheelbase		mm	1295
Tyre / Tread	Front tread	mm	816
	Rear tread	mm	760		755
	Front tyre size		15 x 6.0 – 8		16 x 6.0 – 8
	Rear tyre size		20 x 10.0 – 10		22 x 10.0 – 10
Weight (w/ Mower)		kg	270	282	300
Minimum turning radius		in. (mm)	14 (356)
Transmission			Hydro-Gear® T3HD®		Hydro-Gear® G730®
Transmission system			1-HST w/ Gear Reduction
Speed control			Foot Pedal
Travelling speed range	Forward	km/h	0 – 9.2		0 – 10.8
	Reverse	km/h	0 – 5.6		0 – 6.4
Braking system (Parking brake)			Disc brake / Foot pedal
PTO	Type		Belt drive
	Clutch Type		Electric clutch
	PTO brake		Dry disc
Mower deck	Model		RCK42P-90T		RCK48P-90T
	Mower deck type		Side discharge
	Mower lift system		Mechanical / Hand Lever
	Deck depth	mm	114
	Belt type		Single-Belt
	Deck steel thickness	mm	3.0		3.4
	Anti scalp roller		Rigid
	Cutting width of mower	in. (mm)	42 (1067)		48 (1219)
	Number of blades		2		3
	Cutting height	in. (mm)	1.0 – 4.0 (25 – 102), 1/4″ increment
	Mounting system of mower		Parallel linkage
Seat			Deluxe high back seat	Deluxe high back seat with armrest and suspension
Engine stop system			Key stop
Fuel tank capacity		l	13.6
Battery			U1 (12V, RC:45min, CCA:300, CA:410)
Generator capacity		amp	16	15
Hour meter			Standard
