Equipped with superior power and flexibility, the Kubota KX057-4 excavator delivers the performance every operator is looking for. Powered by a Kubota 47.6HP, renowned worldwide for their outstanding reliability, the KX057-4 will give you the confidence to tackle any job with ease. Redefining the 5.5 tonne class, the KX057-4 offers the ultimate in performance and luxury in comfort.

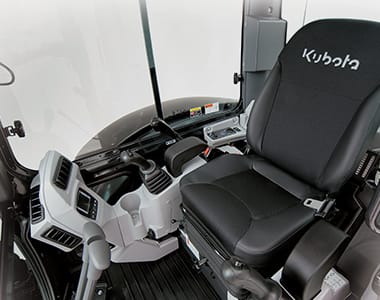

Comfort
| KX057-4 | ||
|---|---|---|
| Type of ROPS | Canopy / Cab | |
| Type of tracks | Rubber / Steel | |
| Engine | Model | Kubota V2607-DI |
| Output (SAE J1995 gross) HP (kW)/rpm | 47.6 (35.5) / 2200 | |
| Output (SAE J1349 net) HP (kW)/rpm | 45.4 (33.8) / 2200 | |
| Displacement (cc) | 2615 | |
| Dimensions | Overall length (mm) | 5520 |
| Overall height (mm) | 2550 | |
| Overall width (mm) | 1960 | |
| Min. ground clearance (mm) | 310 | |
| Hydraulic system | Pump capacity (I/min) | 56.1 Variable x 2 / 37.0 Gear x 1 |
| Auxiliary hydraulic flow (I/min) | 37 / 75 | |
| Max. breakout force (Bucket) kgf | 4315 | |
| Max. breakout force (Arm) kgf | 2500 | |
| Drive system | Travel speed (km/h) | 2.8 / 4.9 (rubber low/high) 2.6 / 4.6 (steel low/high) |
| Max. traction force (kgf) | 6567 | |
| Tumbler distance (mm) | 1990 | |
| Crawler length (mm) | 2500 | |
| Shoe width (mm) | 400 | |
| Ground contact pressure (kgf/cm2) | – | |
| Canopy | 30.9 (0.315) / 31.4 (0.320) | |
| Cab | 31.4 (0.320) / 31.9 (0.326) | |
| Swing system | Unit swing speed (rpm) | 9.3 |
| Boom swing angle (left) (degree) | 70 | |
| Boom swing angle (right) (degree) | 55 | |
| Blade | Dimensions (width) (mm) | 1960 |
| Dimensions (height) (mm) | 410 | |
| Max. lift above ground (mm) | 440 | |
| Max. drop below ground (mm) | 405 | |
| Hydraulic oil (reservoir / system) (l/min) | 45 / 79 | |
| Fuel reservoir (l/min) | 75 | |
| Operating weight (kgs) | 5455 / 5545 | |
| Operator weight (canopy) (kgs) | 5555 / 5645 | |
