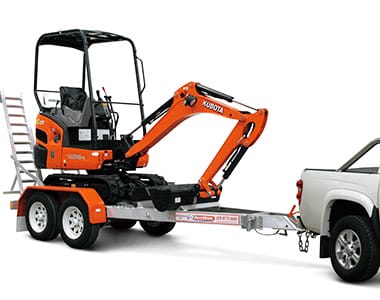

The Kubota KX016-4 excavator is compact and lightweight, designed for easy transportation and features a variable undercarriage for enhanced accessibility. At 1.5 tonne, it’s the popular choice amongst hire and rental companies as well as contractors. Powered by a reliable Kubota 13HP engine, the Kubota KX016-4 features ground-breaking performance and versatility in a compact design with powerful digging force to get the job done.
| KX016-4 | ||
|---|---|---|
| Type of ROPS | Canopy | |
| Type of tracks | Rubber | |
| Engine | Model | Kubota D722-E3 |
| Output (SAE J1995 gross) HP (kW)/rpm | 10.3 (7.7) / 2050 | |
| Output (SAE J1349 net) HP (kW)/rpm | 10.1 (7.5) / 2050 | |
| Displacement (cc) | 719 | |
| Dimensions | Overall length (mm) | 3710 |
| Overall height (mm) | 2330 | |
| Overall width (mm) | 1240 / 990 | |
| Min. ground clearance (mm) | 160 | |
| Hydraulic system | Pump capacity (I/min) | 16.6 x 2 / 10.4 x 1 / 6.2 x 1 |
| Auxiliary hydraulic flow (I/min) | 27 | |

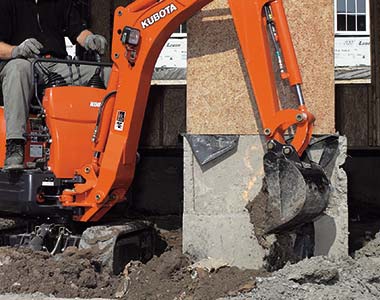

| Max. breakout force (Bucket) kgf | 1370 | |
| Max. breakout force (Arm) kgf | 740 | |
| Drive system | Travel speed (km/h) | 2.1 / 3.8 |
| Max. traction force (kgf) | 2115 | |
| Tumbler distance (mm) | 1090 | |
| Crawler length (mm) | 1450 | |
| Shoe width (mm) | 230 | |
| Ground contact pressure (kgf/cm2) | 0.26 | |
| Canopy | – | |
| Cab | – | |
| Swing system | Unit swing speed (rpm) | 9.1 |
| Boom swing angle (left) (degree) | 75 | |
| Boom swing angle (right) (degree) | 60 | |
| Blade | Dimensions (width) (mm) | 1240 / 990 |
| Dimensions (height) (mm) | 230 | |
| Max. lift above ground (mm) | 240 | |
| Max. drop below ground (mm) | 230 | |
| Hydraulic oil (reservoir / system) (l/min) | 15.5 / 28 | |
| Fuel reservoir (l/min) | 21 | |
| Operating weight (kgs) | 1570 | |
| Operator weight (canopy) (kgs) | – | |
