PERFORMANCE

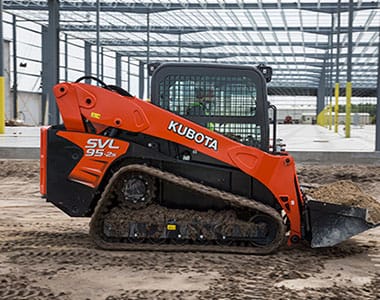

DRIVE

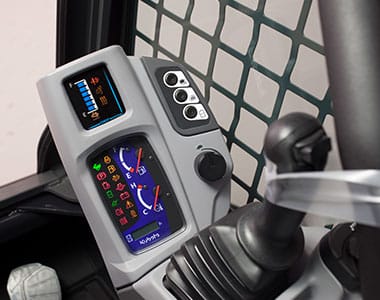

COMFORT
MAINTENANCE
DURABILITY
VERSATILITY

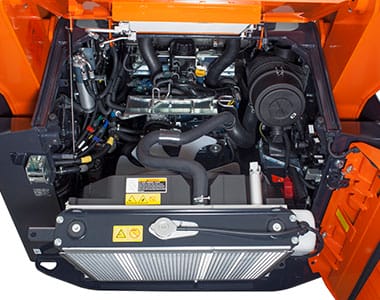

ENGINE & DPF
SVL75-2 | SVL95-2s | ||
---|---|---|---|
Type of operator station | Open CAB / Closed CAB | Open CAB / Closed CAB | |
Engine | Model | V3307-CR-TE4 | V3800-TIEF4 |
Emission Certification | Tier 4 | Tier 4 | |
Gross HP (SAE J1995) HP (kW)/rpm | 74.3 (55.4)/2400 | 96.4 (71.9)/ 2400 | |
Net HP (SAE J1349) HP (kW)/rpm | 68.8 (51.3)/2400 | 87.0 (64.9)/ 2400 | |
Displacement (cc) | 3331 | 3769 | |
Cylinders | 4 | 4 | |
Bore Stroke (mm) | 94 × 120 | 100 × 120 | |
Aspiration | Turbocharged | Turbocharged | |
Loader Performance | Rated operating capacity-35% tipping load (kg) | 1043 | 1451 |
Rated operating capacity-50% tipping load (kg) | 1490 | 2074 | |
Tipping load (kg) | 2980 | 4147 | |
Breakout force (Bucket) (kg) | 2814 | 3611 | |
Breakout force (Lift Arm) (kg) | 2162 | 3058 | |
Lift arm path | Vertical | Vertical | |
Undercarriage | Track Width (Standard) (mm) | 320 | 450 |
Track Width (Wide) (mm) | 380 | N/A | |
Ground pressure with standard track (psi) | 5.6 / 5.8 | 4.4 / 4.5 | |
Ground pressure with wide track (psi) | 4.7 / 4.9 | N/A | |
Track rollers (per side) | 4 | 5 | |
Track ground contact length (mm) | 1436 | 1667 | |
Travel speed Low (km/h) | 7.5 | 8 | |
Travel speed High (km/h) | 11.5 | 11.7 | |
Traction force (kg) | 4390 | 5524 | |
Min. ground clearance (mm) | 296 | 293 | |
Hydraulic System | Aux. hydraulic flow (Std/High) (/min.) | 66.0 / 110.9 | 87.6 / 152 |
Aux. hydraulic pressure (kgf/cm2) | 224.0 | 249.8 | |
Service Refill Capacities | Hydraulic system (L) | 60 | 68 |
Hydraulic tank (L) | 35 | 38.1 | |
Fuel tank (L) | 93 | 109 | |
DEF Tank | N/A | 18.8 | |
Operating weight (Include operator weight @ 75 kg) (kg) | 4100 / 4225 | 5250 |
