M Series Kubota M7040 M6040 M8540 M9540
Simple to operate yet incredibly powerful, the economical M Series tractor range is ideal for a wide variety of applications from property maintenance to commercial landscaping and farming applications.
M6040DH/DHC
Premium CAB Tractor
The Kubota M6040DHC features a 62HP E-CDIS engine, offering more durability, power and fuel efficiency than other models in its class. The CAB model is equipped with hydraulic shuttle shift to make forward and reverse manoeuvers quick and smooth. Standard specification includes Creep Speed and Autohitch plus a fully air conditioned cab for outstanding operator comfort.

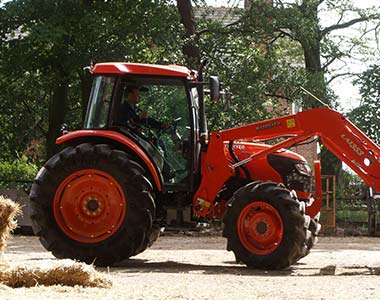

Performance
- Kubota’s revolutionary new centre direct injection system (E-CDIS) engines offer more durability, power and fuel efficiency.
- Synchronized four speeds of the main shift and a high/low range supply tractors with 12 Forward and 12 Reverse speeds, including 4 creep speed.
- Standard with a 540/540E hydraulic independent PTO, to increase productivity.
- Category I & II 3-point hitches provide fast and simple attachment of rear-mounted implements. Two external hydraulic cylinders provide equal lifting force and smooth transfer of hydraulic power for easy operation.
- M-Series hydraulic pumps are located on the side case instead of on the engine, shortening the oil flow path and increasing efficiency.Shifting between forward and reverse is seamless and smooth with Kubota’s new and improved hydraulic shuttle. A column-mounted lever with left-hand operation makes shifting simple.
- Bevel-gear front axle provides the M40 series with better all around manoeuvrability, especially for jobs in tight spaces.

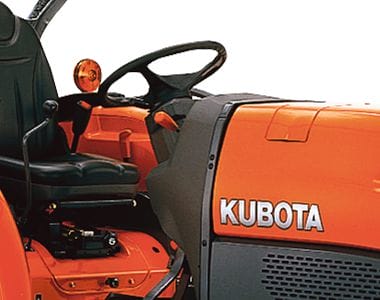

Comfort

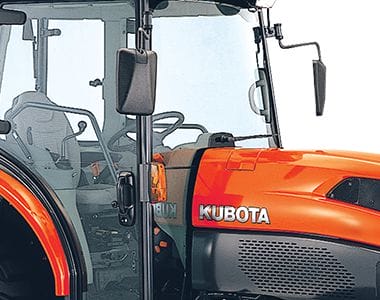

- Rounded glass on the cab gives the operator more room and greater visibility. The height of the cab offers plenty of headroom and most levers and switches are placed to the right side console for easy access.
- Reclining, weight-adjusted seats come standard, designed to absorb shock and significantly reduce operator fatigue.
- Digital LED panel makes viewing vital functions on this tractor clear and easy.

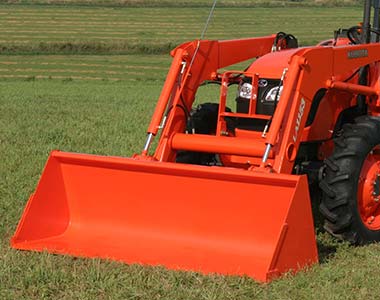

Front End Loader
- Optional LA854 Kubota front end loader offers increased lifting power that’s perfect for farm use, and a fully integrated design with slanted boom to match the tractor’s hood. This sleek design also increases visibility and clearer sight lines to the bucket and loader sides.
- Sturdy, thick steel frame features no braces or connectors, making it quick and easy to attach the loader as well as offering increased visibility.
- Hydraulic tubes are neatly tucked inside the loader boom, better protecting the tractor hydraulics and offering increased operator visibility.
- Attach or detach the front loader in moments without the use of tools. The boom stands and mounting pins make this task a snap, allowing an extra measure of productivity and tractor versatility.

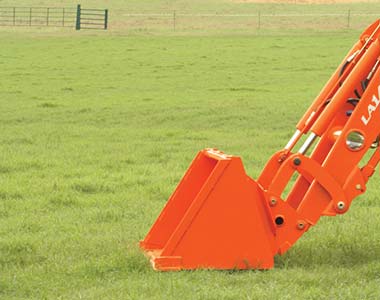

- Hydraulic self-levelling valve allows the operator to raise or lower the loader boom while keeping the bucket level to the ground. This helps prevent spills when carrying soil or sand and also makes pallet handling smooth and easy.
- Keep the bucket level to the ground with the optional Kubota QVX26 Mechanical Self Level Loader.
M6040 Specifications
|
M6040DH |
M6040DHC |
| Engine |
|
V3307-DI |
V3307-DI |
| Make |
Kubota |
Kubota |
| Type |
E-CDIS, Direct Injection |
E-CDIS, Direct Injection |
| No. of cylinders |
4 |
4 |
| Aspiration |
Natural |
Natural |
| Engine net power HP (kW) |
62 (46.3) |
62 (46.3) |
| PTO power HP (kW) |
55 (41.0) |
55 (41.0) |
| Total displacement (cc) |
3331 |
3331 |
| Engine rpm |
2600 |
2600 |
| Fuel tank capacity (L) |
70 |
110 |
| Alternator |
45 Amp |
60 Amp |
| Transmission |
No. of speeds |
F12 / R12 (w/creep) |
F12 / R12 (w/creep) |
| Main gear shift (8 speeds) |
Fully synchronized |
Fully synchronized |
| Hydraulic shuttle |
Standard, Dash-mounted lever |
Standard, Column-mounted lever |
| Max. travelling speed @ max. engine RPM Km/h |
30 |
30 |
| Main clutch type |
Multiple wet disc |
Multiple wet disc |
| Brake type |
Mechanical wet disc |
Mechanical wet disc |
| Mechanical differential lock |
Rear standard |
Rear standard |
| 4WD clutch type |
Mechanical |
Mechanical |
| PTO |
Type |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
| Speed (rpm) |
540 / 540E |
540 / 540E |
| Hydraulics |
Pump capacity (3-Point Hitch) (L/min) |
41.6 |
41.6 |
| 3-Point Hitch |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic lower link ends, Telescopic stabilizers |
| 3-Point Hitch Category |
I / II |
I / II |
| 3-Point Hitch Control system |
Position, draft (top link sensing) & mixed control |
Position, draft (top link sensing) & mixed control |
| 3-Point Hitch Lift capacity at 24 in. behind lift point (kg) |
1500 |
1500 |
| Cylinder type |
Two external cylinders |
Two external cylinders |
| No. of standard remote valves |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
| Other features |
4WD drive system |
Bevel gear type |
Bevel gear type |
| Steering |
Hydraulic power steering |
Hydraulic power steering |
| Tilt steering |
Standard |
Standard |
| Hood type |
Full open, slanted type |
Full open, slanted type |
| Pedal type |
Hanging type |
Hanging type |
| Deck type (ISO-mounted w/ rubber mat) |
Semi-flat |
Full-flat |
| Panel type |
Electronic |
Electronic |
| Fender shape |
Wide, round |
Wide, round |
| Standard tyre size |
Standard Front |
9.5 x 24 |
9.5 x 24 |
| Standard Rear |
14.9 x 28 |
14.9 x 28 |
| Option Front |
280/85R20 |
280/85R20 |
| Option Rear |
380/70R28 |
380/70R28 |
| Option (vineyard) Front |
– |
– |
| Option (vineyard) Rear |
– |
– |
| Dimensions & weight |
Overall length (mm) |
3445 |
3445 |
| Overall height (top of ROPS/CAB) (mm) |
2460 |
2535 |
| Overall width (Minimum, ROPS/CAB) (mm) |
1860 |
1860 |
| Wheelbase (mm) |
2050 |
2110 |
| Crop clearance (Front Axle) |
420 |
420 |
| Front tread width (mm) |
1330-1430 |
1330-1430 |
| Rear tread width (mm) |
1420-1720 |
1420-1720 |
| Turning Radius (w/o brake) (m) |
3.6 |
3.6 |
| Tractor weight (kg) |
2170 |
2430 |
M6040 Loader Specifications
|
LA1153 |
| Tractor applications |
|
M6040 & M7040 |
| Boom Cylinder Fulcrum |
|
Height position | Power position |
| Maximum Lift Height (Pivot pin) (mm) |
|
3370 | 2977 |
| Clearance w/Attachment Dump (mm) |
|
2577 | 2172 |
| Reach @ Maximum Height (mm) |
|
357 | 811 |
| Maximum Drop Angle (degrees) |
|
43 | 60 |
| Reach w/Attachment on Ground (mm) |
|
1947 |
| Maximum Rollback Angle (degrees) |
|
43 |
| Digging Depth (When Bucket is Level) (mm) |
|
134 | 111 |
| Overall Height in Carry Position (mm) |
|
1573 |
| Material Bucket Width/capacity (Heaped) (m³) |
|
0.55 |
| Lift Capacity (Bucket Centre) (kg) |
|
1055 | 1150 |
| Raising Time to Full Height w/out Load (seconds) |
|
4.7 |
| Lowering time w/out Load (powerdown) (seconds) |
|
3.5 |
| Attachment Rollback Time (seconds) |
|
3.0 |
| Attachment Dumping Time (seconds) |
|
2.7 |
Premium ROPS Tractor
The Kubota M7040DH features a 68HP E-CDIS engine, offering more durability, power and fuel efficiency than other models in its class. The ROPS model is equipped with hydraulic shuttle shift to make forward and reverse manoeuvers quick and smooth. Standard specifications includes Creep Speed and Autohitch.
Performance
- Kubota’s revolutionary new centre direct injection system (E-CDIS) engines offer more durability, power and fuel efficiency
- Synchronized four speeds of the main shift and a high/low range supply tractors with 12 Forward and 12 Reverse speeds, including 4 creep speed.
- Standard with a 540/540E hydraulic independent PTO, to increase productivity.
- Category I & II 3-point hitches provide fast and simple attachment of rear-mounted implements. Two external hydraulic cylinders provide equal lifting force and smooth transfer of hydraulic power for easy operation.
- M-Series hydraulic pumps are located on the side case instead of on the engine, shortening the oil flow path and increasing efficiency. Shifting between forward and reverse is seamless and smooth with Kubota’s new and improved hydraulic shuttle. A column-mounted lever with left-hand operation makes shifting simple.
- Bevel-gear front axle provides the M40 series with better all around manoeuvrability, especially for jobs in tight spaces.
Comfort
- Reclining, weight-adjusted seats come standard, designed to absorb shock and significantly reduce operator fatigue.
- Digital LED panel makes viewing vital functions on this tractor clear and easy.

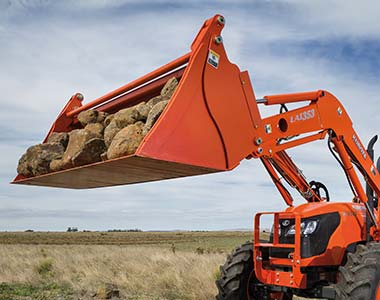

- Optional LA1153E Kubota front end loader offers increased lifting power that’s perfect for farm use, and a fully integrated design with slanted boom to match the tractor’s hood. This sleek design also increases visibility and clearer sight lines to the bucket and loader sides.
- Sturdy, thick steel frame features no braces or connectors, making it quick and easy to attach the loader as well as offering increased visibility.
- Hydraulic tubes are neatly tucked inside the loader boom, better protecting the tractor hydraulics and offering increased operator visibility.
- Attach or detach the front loader in moments without the use of tools. The boom stands and mounting pins make this task a snap, allowing an extra measure of productivity and tractor versatility.
- Hydraulic self-levelling valve allows the operator to raise or lower the loader boom while keeping the bucket level to the ground. This helps prevent spills when carrying soil or sand and also makes pallet handling smooth and easy.
- QVX26 Mechanical Self Level Loader option available enabling the operator to keep the bucket level to the ground.
M7040 Specifications
|
M7040DH |
M7040DHC |
M7040SUHD |
| Engine |
|
V3307-DI |
V3307-DI |
V3307 |
| Make |
Kubota |
Kubota |
Kubota |
| Type |
E-CDIS, Direct Injection |
E-CDIS, Direct Injection |
E-CDIS, Direct injection, liquid cooled diesel |
| No. of cylinders |
4 |
4 |
4 |
| Aspiration |
Natural |
Natural |
Natural |
| Engine net power HP (kW) |
35 (50.7) |
35 (50.7) |
68 (50.7) |
| PTO power HP (kW) |
62 (46.3) |
62 (46.3) |
62 (46.2) |
| Total displacement (cc) |
3331 |
3331 |
3331 |
| Engine rpm |
2600 |
2600 |
2600 |
| Fuel tank capacity (L) |
90 |
110 |
70 |
| Alternator |
45 Amp |
60 Amp |
45 Amp |
| Transmission |
No. of speeds |
F12 / R12 (w/creep) |
F12 / R12 (w/creep) |
8F/8R |
| Main gear shift (8 speeds) |
Fully synchronized |
Fully synchronized |
Fully synchronized (4 speed) |
| Hydraulic shuttle |
Standard, Dash-mounted |
Standard, Column mounted lever |
Standard |
| Max. travelling speed @ max. engine RPM Km/h |
31 |
31 |
– |
| Main clutch type |
Multiple wet disc |
Multiple wet disc |
Multiple wet discs |
| Brake type |
Mechanical wet disc |
Mechanical wet disc |
Mechanical multi-plate wet disc |
| Mechanical differential lock |
Rear standard & front Limited Slip Differential |
Rear standard & front Limited Slip Differential |
Rear standard |
| 4WD clutch type |
Mechanical |
Mechanical |
– |
| Final drive |
– |
– |
Inboard Planetary |
| PTO |
Type |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, hydraulic PTO with PTO brake, multi-plate wet clutch |
| Speed (rpm) |
540 / 540E |
540 / 540E |
540 |
| Hydraulics |
Pump capacity (3-Point Hitch) (L/min) |
41.6 |
41.6 |
43.9 |
| 3-Point Hitch |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic stabilizers, turn-buckle-type lift rod |
| 3-Point Hitch Category |
I / II |
I / II |
I / II |
| 3-Point Hitch Control system |
Position, draft (top link sensing) & mixed control |
Position, draft (top link sensing) & mixed control |
Position |
| 3-Point Hitch Lift capacity at 24 in. behind lift point (kg) |
1500 |
1500 |
1500 |
| Cylinder type |
Two external cylinders |
Two external cylinders |
– |
| No. of standard remote valves |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
1 (2nd, 3rd optional) |
| Other features |
4WD drive system |
Bevel gear type |
Bevel gear type |
– |
| Steering |
Hydraulic power steering |
Hydraulic power steering |
Hydrostatic power steering |
| Tilt steering |
Standard |
Standard |
– |
| Hood type |
Full open, slanted type |
Full open, slanted type |
– |
| Pedal type |
Hanging type |
Hanging type |
– |
| Deck type (ISO-mounted w/ rubber mat) |
Semi-flat |
Full-flat |
Semi-flat |
| Panel type |
Electronic |
Electronic |
– |
| Fender shape |
Wide, round |
Wide, round |
– |
| Standard tyre size |
Standard Front |
9.5 x 24 |
9.5 x 24 |
9.5-24 R1 |
| Standard Rear |
16.9 x 30 |
16.9 x 30 |
16.9-30 R1 |
| Option Front |
280/85R24 |
280/85R24 |
– |
| Option Rear |
280/84R30 |
280/84R30 |
– |
| Option (vineyard) Front |
– |
– |
– |
| Option (vineyard) Rear |
– |
– |
– |
| Dimensions & weight |
Overall length (mm) |
3445 |
3445 |
3500 |
| Overall height (top of ROPS/CAB) (mm) |
2470 |
2545 |
2470 |
| Overall width (Minimum, ROPS/CAB) (mm) |
1860 |
1860 |
1860 |
| Wheelbase (mm) |
2050 |
2110 |
2050 |
| Crop clearance (Front Axle) |
430 |
430 |
500 |
| Front tread width (mm) |
1420-1520 |
1420-1520 |
1420,1520 |
| Rear tread width (mm) |
1420-1720 |
1420-1720 |
1420-1720 |
| Turning Radius (w/o brake) (m) |
3.6 |
3.6 |
3.7 |
| Tractor weight (kg) |
2180 |
2440 |
2090 |
M7040 Loader Specifications
|
LA1153 |
| Tractor applications |
|
M6040 & M7040 |
| Boom Cylinder Fulcrum |
|
Height position | Power position |
| Maximum Lift Height (Pivot pin) (mm) |
|
3370 | 2977 |
| Clearance w/Attachment Dump (mm) |
|
2577 | 2172 |
| Reach @ Maximum Height (mm) |
|
357 | 811 |
| Maximum Drop Angle (degrees) |
|
43 | 60 |
| Reach w/Attachment on Ground (mm) |
|
1947 |
| Maximum Rollback Angle (degrees) |
|
43 |
| Digging Depth (When Bucket is Level) (mm) |
|
134 | 111 |
| Overall Height in Carry Position (mm) |
|
1573 |
| Material Bucket Width/capacity (Heaped) (m³) |
|
0.55 |
| Lift Capacity (Bucket Centre) (kg) |
|
1055 | 1150 |
| Raising Time to Full Height w/out Load (seconds) |
|
4.7 |
| Lowering time w/out Load (powerdown) (seconds) |
|
3.5 |
| Attachment Rollback Time (seconds) |
|
3.0 |
| Attachment Dumping Time (seconds) |
|
2.7 |
Kubota M7040DHC
Premium CAB Tractor
The Kubota M7040DHC features a 68HP E-CDIS engine, offering more durability, power and fuel efficiency than other models in its class. The CAB model is equipped with hydraulic shuttle shift to make forward and reverse manoeuvers quick and smooth. Standard specification includes Creep Speed and Autohitch plus a fully air conditioned cab for outstanding operator comfort.
Performance
- Kubota’s revolutionary new centre direct injection system (E-CDIS) engines offer more durability, power and fuel efficiency.
- Synchronized four speeds of the main shift and a high/low range supply tractors with 12 Forward and 12 Reverse speeds, including 4 creep speed.
- Standard with a 540/540E hydraulic independent PTO, to increase productivity.
- Category I & II 3-point hitches provide fast and simple attachment of rear-mounted implements. Two external hydraulic cylinders provide equal lifting force and smooth transfer of hydraulic power for easy operation.
- M-Series hydraulic pumps are located on the side case instead of on the engine, shortening the oil flow path and increasing efficiency.Shifting between forward and reverse is seamless and smooth with Kubota’s new and improved hydraulic shuttle. A column-mounted lever with left-hand operation makes shifting simple.
- Bevel-gear front axle provides the M40 series with better all around manoeuvrability, especially for jobs in tight spaces.
Comfort
- Rounded glass on the cab gives the operator more room and greater visibility. The height of the cab offers plenty of headroom and most levers and switches are placed to the right side console for easy access.
- Reclining, weight-adjusted seats come standard, designed to absorb shock and significantly reduce operator fatigue.
- Digital LED panel makes viewing vital functions on this tractor clear and easy.
Front End Loader
- Optional LA1153E Kubota front end loader offers increased lifting power that’s perfect for farm use, and a fully integrated design with slanted boom to match the tractor’s hood. This sleek design also increases visibility and clearer sight lines to the bucket and loader sides.
- Sturdy, thick steel frame features no braces or connectors, making it quick and easy to attach the loader as well as offering increased visibility.
- Hydraulic tubes are neatly tucked inside the loader boom, better protecting the tractor hydraulics and offering increased operator visibility.
- Attach or detach the front loader in moments without the use of tools. The boom stands and mounting pins make this task a snap, allowing an extra measure of productivity and tractor versatility.
- Hydraulic self-levelling valve allows the operator to raise or lower the loader boom while keeping the bucket level to the ground. This helps prevent spills when carrying soil or sand and also makes pallet handling smooth and easy.
- QVX26 Mechanical Self Level Loader option available enabling the operator to keep the bucket level to the ground.
M7040 Specifications
|
M7040DH |
M7040DHC |
M7040SUHD |
| Engine |
|
V3307-DI |
V3307-DI |
V3307 |
| Make |
Kubota |
Kubota |
Kubota |
| Type |
E-CDIS, Direct Injection |
E-CDIS, Direct Injection |
E-CDIS, Direct injection, liquid cooled diesel |
| No. of cylinders |
4 |
4 |
4 |
| Aspiration |
Natural |
Natural |
Natural |
| Engine net power HP (kW) |
35 (50.7) |
35 (50.7) |
68 (50.7) |
| PTO power HP (kW) |
62 (46.3) |
62 (46.3) |
62 (46.2) |
| Total displacement (cc) |
3331 |
3331 |
3331 |
| Engine rpm |
2600 |
2600 |
2600 |
| Fuel tank capacity (L) |
90 |
110 |
70 |
| Alternator |
45 Amp |
60 Amp |
45 Amp |
| Transmission |
No. of speeds |
F12 / R12 (w/creep) |
F12 / R12 (w/creep) |
8F/8R |
| Main gear shift (8 speeds) |
Fully synchronized |
Fully synchronized |
Fully synchronized (4 speed) |
| Hydraulic shuttle |
Standard, Dash-mounted |
Standard, Column mounted lever |
Standard |
| Max. travelling speed @ max. engine RPM Km/h |
31 |
31 |
– |
| Main clutch type |
Multiple wet disc |
Multiple wet disc |
Multiple wet discs |
| Brake type |
Mechanical wet disc |
Mechanical wet disc |
Mechanical multi-plate wet disc |
| Mechanical differential lock |
Rear standard & front Limited Slip Differential |
Rear standard & front Limited Slip Differential |
Rear standard |
| 4WD clutch type |
Mechanical |
Mechanical |
– |
| Final drive |
– |
– |
Inboard Planetary |
| PTO |
Type |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, hydraulic PTO with PTO brake, multi-plate wet clutch |
| Speed (rpm) |
540 / 540E |
540 / 540E |
540 |
| Hydraulics |
Pump capacity (3-Point Hitch) (L/min) |
41.6 |
41.6 |
43.9 |
| 3-Point Hitch |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic stabilizers, turn-buckle-type lift rod |
| 3-Point Hitch Category |
I / II |
I / II |
I / II |
| 3-Point Hitch Control system |
Position, draft (top link sensing) & mixed control |
Position, draft (top link sensing) & mixed control |
Position |
| 3-Point Hitch Lift capacity at 24 in. behind lift point (kg) |
1500 |
1500 |
1500 |
| Cylinder type |
Two external cylinders |
Two external cylinders |
– |
| No. of standard remote valves |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
1 (2nd, 3rd optional) |
| Other features |
4WD drive system |
Bevel gear type |
Bevel gear type |
– |
| Steering |
Hydraulic power steering |
Hydraulic power steering |
Hydrostatic power steering |
| Tilt steering |
Standard |
Standard |
– |
| Hood type |
Full open, slanted type |
Full open, slanted type |
– |
| Pedal type |
Hanging type |
Hanging type |
– |
| Deck type (ISO-mounted w/ rubber mat) |
Semi-flat |
Full-flat |
Semi-flat |
| Panel type |
Electronic |
Electronic |
– |
| Fender shape |
Wide, round |
Wide, round |
– |
| Standard tyre size |
Standard Front |
9.5 x 24 |
9.5 x 24 |
9.5-24 R1 |
| Standard Rear |
16.9 x 30 |
16.9 x 30 |
16.9-30 R1 |
| Option Front |
280/85R24 |
280/85R24 |
– |
| Option Rear |
280/84R30 |
280/84R30 |
– |
| Option (vineyard) Front |
– |
– |
– |
| Option (vineyard) Rear |
– |
– |
– |
| Dimensions & weight |
Overall length (mm) |
3445 |
3445 |
3500 |
| Overall height (top of ROPS/CAB) (mm) |
2470 |
2545 |
2470 |
| Overall width (Minimum, ROPS/CAB) (mm) |
1860 |
1860 |
1860 |
| Wheelbase (mm) |
2050 |
2110 |
2050 |
| Crop clearance (Front Axle) |
430 |
430 |
500 |
| Front tread width (mm) |
1420-1520 |
1420-1520 |
1420,1520 |
| Rear tread width (mm) |
1420-1720 |
1420-1720 |
1420-1720 |
| Turning Radius (w/o brake) (m) |
3.6 |
3.6 |
3.7 |
| Tractor weight (kg) |
2180 |
2440 |
2090 |
M7040 Loader Specifications
|
LA1153 |
| Tractor applications |
|
M6040 & M7040 |
| Boom Cylinder Fulcrum |
|
Height position | Power position |
| Maximum Lift Height (Pivot pin) (mm) |
|
3370 | 2977 |
| Clearance w/Attachment Dump (mm) |
|
2577 | 2172 |
| Reach @ Maximum Height (mm) |
|
357 | 811 |
| Maximum Drop Angle (degrees) |
|
43 | 60 |
| Reach w/Attachment on Ground (mm) |
|
1947 |
| Maximum Rollback Angle (degrees) |
|
43 |
| Digging Depth (When Bucket is Level) (mm) |
|
134 | 111 |
| Overall Height in Carry Position (mm) |
|
1573 |
| Material Bucket Width/capacity (Heaped) (m³) |
|
0.55 |
| Lift Capacity (Bucket Centre) (kg) |
|
1055 | 1150 |
| Raising Time to Full Height w/out Load (seconds) |
|
4.7 |
| Lowering time w/out Load (powerdown) (seconds) |
|
3.5 |
| Attachment Rollback Time (seconds) |
|
3.0 |
| Attachment Dumping Time (seconds) |
|
2.7 |
M7040SUHD
Premium ROPS Utility Tractor
The Kubota M7040SUHD features a 68HP E-CDIS engine, offering more durability, power and fuel efficiency than other models in its class. The ROPS utility model is equipped with hydraulic shuttle shift to make forward and reverse manoeuvers quick and smooth. Standard specifications includes Creep Speed and Autohitch.
Performance
- Kubota’s revolutionary new centre direct injection system (E-CDIS) engines offer more durability, power and fuel efficiency.
- Range shift lever provides quick and easy shifting between high and low gears, providing 8 forward and 8 reverse speeds (8F/8R), allowing the operator to choose the right gear for the task.
- Standard with a 540/540E hydraulic independent PTO, to increase productivity.
- Category I & II 3-point hitches provide fast and simple attachment of rear-mounted implements. Two external hydraulic cylinders provide equal lifting force and smooth transfer of hydraulic power for easy operation.
- M-Series hydraulic pumps are located on the side case instead of on the engine, shortening the oil flow path and increasing efficiency. Shifting between forward and reverse is seamless and smooth with Kubota’s new and improved hydraulic shuttle. A column-mounted lever with left-hand operation makes shifting simple.
- Bevel-gear front axle provides the M40 series with better all around manoeuvrability, especially for jobs in tight spaces.
Comfort
- Reclining, weight-adjusted seats come standard, designed to absorb shock and significantly reduce operator fatigue.
- Digital LED panel makes viewing vital functions on this tractor clear and easy.
Front End Loader
- Optional LA1153E Kubota front end loader offers increased lifting power that’s perfect for farm use, and a fully integrated design with slanted boom to match the tractor’s hood. This sleek design also increases visibility and clearer sight lines to the bucket and loader sides.
- Sturdy, thick steel frame features no braces or connectors, making it quick and easy to attach the loader as well as offering increased visibility.
- Hydraulic tubes are neatly tucked inside the loader boom, better protecting the tractor hydraulics and offering increased operator visibility.
- Attach or detach the front loader in moments without the use of tools. The boom stands and mounting pins make this task a snap, allowing an extra measure of productivity and tractor versatility.
- Hydraulic self-levelling valve allows the operator to raise or lower the loader boom while keeping the bucket level to the ground. This helps prevent spills when carrying soil or sand and also makes pallet handling smooth and easy.
- QVX26 Mechanical Self Level Loader option available enabling the operator to keep the bucket level to the ground.
M7040 Specifications
|
M7040DH |
M7040DHC |
M7040SUHD |
| Engine |
|
V3307-DI |
V3307-DI |
V3307 |
| Make |
Kubota |
Kubota |
Kubota |
| Type |
E-CDIS, Direct Injection |
E-CDIS, Direct Injection |
E-CDIS, Direct injection, liquid cooled diesel |
| No. of cylinders |
4 |
4 |
4 |
| Aspiration |
Natural |
Natural |
Natural |
| Engine net power HP (kW) |
35 (50.7) |
35 (50.7) |
68 (50.7) |
| PTO power HP (kW) |
62 (46.3) |
62 (46.3) |
62 (46.2) |
| Total displacement (cc) |
3331 |
3331 |
3331 |
| Engine rpm |
2600 |
2600 |
2600 |
| Fuel tank capacity (L) |
90 |
110 |
70 |
| Alternator |
45 Amp |
60 Amp |
45 Amp |
| Transmission |
No. of speeds |
F12 / R12 (w/creep) |
F12 / R12 (w/creep) |
8F/8R |
| Main gear shift (8 speeds) |
Fully synchronized |
Fully synchronized |
Fully synchronized (4 speed) |
| Hydraulic shuttle |
Standard, Dash-mounted |
Standard, Column mounted lever |
Standard |
| Max. travelling speed @ max. engine RPM Km/h |
31 |
31 |
– |
| Main clutch type |
Multiple wet disc |
Multiple wet disc |
Multiple wet discs |
| Brake type |
Mechanical wet disc |
Mechanical wet disc |
Mechanical multi-plate wet disc |
| Mechanical differential lock |
Rear standard & front Limited Slip Differential |
Rear standard & front Limited Slip Differential |
Rear standard |
| 4WD clutch type |
Mechanical |
Mechanical |
– |
| Final drive |
– |
– |
Inboard Planetary |
| PTO |
Type |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, hydraulic PTO with PTO brake, multi-plate wet clutch |
| Speed (rpm) |
540 / 540E |
540 / 540E |
540 |
| Hydraulics |
Pump capacity (3-Point Hitch) (L/min) |
41.6 |
41.6 |
43.9 |
| 3-Point Hitch |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic stabilizers, turn-buckle-type lift rod |
| 3-Point Hitch Category |
I / II |
I / II |
I / II |
| 3-Point Hitch Control system |
Position, draft (top link sensing) & mixed control |
Position, draft (top link sensing) & mixed control |
Position |
| 3-Point Hitch Lift capacity at 24 in. behind lift point (kg) |
1500 |
1500 |
1500 |
| Cylinder type |
Two external cylinders |
Two external cylinders |
– |
| No. of standard remote valves |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
1 (2nd, 3rd optional) |
| Other features |
4WD drive system |
Bevel gear type |
Bevel gear type |
– |
| Steering |
Hydraulic power steering |
Hydraulic power steering |
Hydrostatic power steering |
| Tilt steering |
Standard |
Standard |
– |
| Hood type |
Full open, slanted type |
Full open, slanted type |
– |
| Pedal type |
Hanging type |
Hanging type |
– |
| Deck type (ISO-mounted w/ rubber mat) |
Semi-flat |
Full-flat |
Semi-flat |
| Panel type |
Electronic |
Electronic |
– |
| Fender shape |
Wide, round |
Wide, round |
– |
| Standard tyre size |
Standard Front |
9.5 x 24 |
9.5 x 24 |
9.5-24 R1 |
| Standard Rear |
16.9 x 30 |
16.9 x 30 |
16.9-30 R1 |
| Option Front |
280/85R24 |
280/85R24 |
– |
| Option Rear |
280/84R30 |
280/84R30 |
– |
| Option (vineyard) Front |
– |
– |
– |
| Option (vineyard) Rear |
– |
– |
– |
| Dimensions & weight |
Overall length (mm) |
3445 |
3445 |
3500 |
| Overall height (top of ROPS/CAB) (mm) |
2470 |
2545 |
2470 |
| Overall width (Minimum, ROPS/CAB) (mm) |
1860 |
1860 |
1860 |
| Wheelbase (mm) |
2050 |
2110 |
2050 |
| Crop clearance (Front Axle) |
430 |
430 |
500 |
| Front tread width (mm) |
1420-1520 |
1420-1520 |
1420,1520 |
| Rear tread width (mm) |
1420-1720 |
1420-1720 |
1420-1720 |
| Turning Radius (w/o brake) (m) |
3.6 |
3.6 |
3.7 |
| Tractor weight (kg) |
2180 |
2440 |
2090 |
M7040 Loader Specifications
|
LA1153 |
| Tractor applications |
|
M6040 & M7040 |
| Boom Cylinder Fulcrum |
|
Height position | Power position |
| Maximum Lift Height (Pivot pin) (mm) |
|
3370 | 2977 |
| Clearance w/Attachment Dump (mm) |
|
2577 | 2172 |
| Reach @ Maximum Height (mm) |
|
357 | 811 |
| Maximum Drop Angle (degrees) |
|
43 | 60 |
| Reach w/Attachment on Ground (mm) |
|
1947 |
| Maximum Rollback Angle (degrees) |
|
43 |
| Digging Depth (When Bucket is Level) (mm) |
|
134 | 111 |
| Overall Height in Carry Position (mm) |
|
1573 |
| Material Bucket Width/capacity (Heaped) (m³) |
|
0.55 |
| Lift Capacity (Bucket Centre) (kg) |
|
1055 | 1150 |
| Raising Time to Full Height w/out Load (seconds) |
|
4.7 |
| Lowering time w/out Load (powerdown) (seconds) |
|
3.5 |
| Attachment Rollback Time (seconds) |
|
3.0 |
| Attachment Dumping Time (seconds) |
|
2.7 |
M8540DH
Premium ROPS Tractor
Kubota’s M8540DH utility tractor offers powerful performance with a 84HP, 4-cylinder turbo charged, E-CDIS engine. Designed for heavy duty work, this ROPS model is equipped with hydraulic shuttle, Creep Speed and Autohitch for more productive and practical operation. Available with a variety of attachments.
Performance
- Kubota’s revolutionary new centre direct injection system (E-CDIS) engines offer more durability, power and fuel efficiency.
- For heavy-duty work such as ploughing, hay work and heavy trailer applications, the M8540 is equipped with an F18/R18 transmission. This transmission features six speeds of the main shift and high/ low/creep ranges.
- Standard with a 540/540E hydraulic independent PTO, to increase productivity.
- Category I & II 3-point hitches provide fast and simple attachment of rear-mounted implements. Two external hydraulic cylinders provide equal lifting force and smooth transfer of hydraulic power for easy operation.
- M-Series hydraulic pumps are located on the side case instead of on the engine, shortening the oil flow path and increasing efficiency. Shifting between forward and reverse is seamless and smooth with Kubota’s new and improved hydraulic shuttle. A column-mounted lever with left-hand operation makes shifting simple.
- Bevel-gear front axle provides the M40 series with better all around manoeuvrability, especially for jobs in tight spaces.
- Reclining, weight-adjusted seats come standard, designed to absorb shock and significantly reduce operator fatigue.
- Digital LED panel makes viewing vital functions on this tractor clear and easy.
Front End Loader
- Optional LA1353E Kubota front end loader offers increased lifting power that’s perfect for farm use, and a fully integrated design with slanted boom to match the tractor’s hood. This sleek design also increases visibility and clearer sight lines to the bucket and loader sides.
- Sturdy, thick steel frame features no braces or connectors, making it quick and easy to attach the loader as well as offering increased visibility.
- Hydraulic tubes are neatly tucked inside the loader boom, better protecting the tractor hydraulics and offering increased operator visibility.
- Attach or detach the front loader in moments without the use of tools. The boom stands and mounting pins make this task a snap, allowing an extra measure of productivity and tractor versatility.
- Hydraulic self-levelling valve allows the operator to raise or lower the loader boom while keeping the bucket level to the ground. This helps prevent spills when carrying soil or sand and also makes pallet handling smooth and easy.
- QVX36 Mechanical Self Level Loader option available enabling the operator to keep the bucket level to the ground.
M8540 Specifications
|
M8540DH |
M8540DHC |
| Engine |
|
V3800DI-T |
V3800DI-T |
| Make |
Kubota |
Kubota |
| Type |
E-CDIS, Direct Injection |
E-CDIS, Direct Injection |
| No. of cylinders |
4 |
4 |
| Aspiration |
Turbocharged |
Turbocharged |
| Engine net power HP (kW) |
84.6 (63.1) |
84.6 (63.1) |
| PTO power HP (kW) |
75 (56.0) |
75 (56.0) |
| Total displacement (cc) |
3769 |
3769 |
| Engine rpm |
2600 |
2600 |
| Fuel tank capacity (L) |
90 |
110 |
| Alternator |
45 Amp |
60 Amp |
| Transmission |
No. of speeds |
F18 / R18 (w/creep) |
F18 / R18 (w/creep) |
| Main gear shift (8 speeds) |
Fully synchronized |
Fully synchronized |
| Hydraulic shuttle |
Standard, Dash-mounted |
Standard, Column-mounted |
| Max. travelling speed @ max. engine RPM Km/h |
35 |
35 |
| Main clutch type |
Multiple wet disc |
Multiple wet disc |
| Brake type |
Hydraulic wet disc |
Hydraulic wet disc |
| Mechanical differential lock |
Rear standard & front Limited Slip Differential |
Rear standard & front Limited Slip Differential |
| 4WD clutch type |
Mechanical |
Mechanical |
| PTO |
Type |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
| Speed (rpm) |
540 / 540E |
540 / 540E |
| Hydraulics |
Pump capacity (3-Point Hitch) (L/min) |
64.3 |
64.3 |
| 3-Point Hitch |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic lower link ends, Telescopic stabilizers |
| 3-Point Hitch Category |
II |
II |
| 3-Point Hitch Control system |
Position, draft (top link sensing) & mixed control |
Position, draft (top link sensing) & mixed control |
| 3-Point Hitch Lift capacity at 24 in. behind lift point (kg) |
3200 |
3200 |
| Cylinder type |
Two external cylinders |
Two external cylinders |
| No. of standard remote valves |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
| Other features |
4WD drive system |
Bevel gear type |
Bevel gear type |
| Steering |
Hydraulic power steering |
Hydraulic power steering |
| Tilt steering |
Standard |
Standard |
| Hood type |
Full open, slanted type |
Full open, slanted type |
| Pedal type |
Hanging type |
Hanging type |
| Deck type (ISO-mounted w/ rubber mat) |
Semi-flat |
Full-flat |
| Panel type |
Electronic |
Electronic |
| Fender shape |
Wide, round |
Wide, round |
| Standard tyre size |
Standard Front |
320/85R24 |
320/85R24 |
| Standard Rear |
460/85R30 |
460/85R30 |
| Option Front |
320/85R24 |
320/85R24 |
| Option Rear |
420/85R34 |
420/85R34 |
| Option (vineyard) Front |
335/80R20 |
335/80R20 |
| Option (vineyard) Rear |
380/85R30 |
380/85R30 |
| Dimensions & weight |
Overall length (mm) |
3760 |
3760 |
| Overall height (top of ROPS/CAB) (mm) |
2465 |
2545 |
| Overall width (Minimum, ROPS/CAB) (mm) |
1980 |
1980 |
| Wheelbase (mm) |
2250 |
2250 |
| Crop clearance (Front Axle) (mm) |
465 |
465 |
| Front tread width (mm) |
1420 – 1520 |
1420 – 1520 |
| Rear tread width (mm) |
1520 – 1920 |
1420 – 1520 |
| Turning Radius (w/o brake) (m) |
4.2 |
4.2 |
| Tractor weight (kg) |
2450 |
2740 |
M8540 Loader Specifications
|
LA1353 |
| Tractor applications |
|
M8540 & M9540 |
| Boom Cylinder Fulcrum |
|
Height position | Power position |
| Maximum Lift Height (Pivot pin) (mm) |
|
3720 | 3390 |
| Clearance w/Attachment Dump (mm) |
|
2880 | 2545 |
| Reach @ Maximum Height (mm) |
|
536 | 927 |
| Maximum Drop Angle (degrees) |
|
49 | 60 |
| Reach w/Attachment on Ground (mm) |
|
2230 |
| Maximum Rollback Angle (degrees) |
|
40 |
| Digging Depth (When Bucket is Level) (mm) |
|
120 | 105 |
| Overall Height in Carry Position (mm) |
|
1716 |
| Material Bucket Width/capacity (Heaped) (m³) |
|
0.64 |
| Lift Capacity (Bucket Centre) (kg) |
|
1230 | 1350 |
| Raising Time to Full Height w/out Load (seconds) |
|
4.1 |
| Lowering time w/out Load (powerdown) (seconds) |
|
3.0 |
| Attachment Rollback Time (seconds) |
|
2.1 |
| Attachment Dumping Time (seconds) |
|
1.8 |
M8540DHC
Premium CAB Tractor
Kubota’s M8540DHC utility tractor offers powerful performance with a 84HP, 4-cylinder turbo charged, E-CDIS engine. Designed for heavy duty work and equipped with hydraulic shuttle, Creep Speed and Autohitch for a more productive and practical operation. Features rounded glass windows for increased CAB space and greater visibility. Available with a variety of attachments.
Performance
- Kubota’s revolutionary new centre direct injection system (E-CDIS) engines offer more durability, power and fuel efficiency.
- For heavy-duty work such as ploughing, hay work and heavy trailer applications, the M8540 is equipped with an F18/R18 transmission. This transmission features six speeds of the main shift and high/low/creep ranges.
- Standard with a 540/540E hydraulic independent PTO, to increase productivity.
- Category I & II 3-point hitches provide fast and simple attachment of rear-mounted implements. Two external hydraulic cylinders provide equal lifting force and smooth transfer of hydraulic power for easy operation.
- M-Series hydraulic pumps are located on the side case instead of on the engine, shortening the oil flow path and increasing efficiency. Shifting between forward and reverse is seamless and smooth with Kubota’s new and improved hydraulic shuttle. A column-mounted lever with left-hand operation makes shifting simple.
- Bevel-gear front axle provides the M40 series with better all around manoeuvrability, especially for jobs in tight spaces.
Comfort
- Rounded glass on the cab gives the operator more room and greater visibility. The height of the cab offers plenty of headroom and most levers and switches are placed to the right side console for easy access.
- Reclining, weight-adjusted seats come standard, designed to absorb shock and significantly reduce operator fatigue.
- Digital LED panel makes viewing vital functions on this tractor clear and easy.
Front End Loader
- Optional LA1353E Kubota front end loader offers increased lifting power that’s perfect for farm use, and a fully integrated design with slanted boom to match the tractor’s hood. This sleek design also increases visibility and clearer sight lines to the bucket and loader sides.
- Sturdy, thick steel frame features no braces or connectors, making it quick and easy to attach the loader as well as offering increased visibility.
- Hydraulic tubes are neatly tucked inside the loader boom, better protecting the tractor hydraulics and offering increased operator visibility.
- Attach or detach the front loader in moments without the use of tools. The boom stands and mounting pins make this task a snap, allowing an extra measure of productivity and tractor versatility.
- Hydraulic self-levelling valve allows the operator to raise or lower the loader boom while keeping the bucket level to the ground. This helps prevent spills when carrying soil or sand and also makes pallet handling smooth and easy.
- QVX36 Mechanical Self Level Loader option available enabling the operator to keep the bucket level to the ground.
M8540 Specifications
|
M8540DH |
M8540DHC |
| Engine |
|
V3800DI-T |
V3800DI-T |
| Make |
Kubota |
Kubota |
| Type |
E-CDIS, Direct Injection |
E-CDIS, Direct Injection |
| No. of cylinders |
4 |
4 |
| Aspiration |
Turbocharged |
Turbocharged |
| Engine net power HP (kW) |
84.6 (63.1) |
84.6 (63.1) |
| PTO power HP (kW) |
75 (56.0) |
75 (56.0) |
| Total displacement (cc) |
3769 |
3769 |
| Engine rpm |
2600 |
2600 |
| Fuel tank capacity (L) |
90 |
110 |
| Alternator |
45 Amp |
60 Amp |
| Transmission |
No. of speeds |
F18 / R18 (w/creep) |
F18 / R18 (w/creep) |
| Main gear shift (8 speeds) |
Fully synchronized |
Fully synchronized |
| Hydraulic shuttle |
Standard, Dash-mounted |
Standard, Column-mounted |
| Max. travelling speed @ max. engine RPM Km/h |
35 |
35 |
| Main clutch type |
Multiple wet disc |
Multiple wet disc |
| Brake type |
Hydraulic wet disc |
Hydraulic wet disc |
| Mechanical differential lock |
Rear standard & front Limited Slip Differential |
Rear standard & front Limited Slip Differential |
| 4WD clutch type |
Mechanical |
Mechanical |
| PTO |
Type |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
| Speed (rpm) |
540 / 540E |
540 / 540E |
| Hydraulics |
Pump capacity (3-Point Hitch) (L/min) |
64.3 |
64.3 |
| 3-Point Hitch |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic lower link ends, Telescopic stabilizers |
| 3-Point Hitch Category |
II |
II |
| 3-Point Hitch Control system |
Position, draft (top link sensing) & mixed control |
Position, draft (top link sensing) & mixed control |
| 3-Point Hitch Lift capacity at 24 in. behind lift point (kg) |
3200 |
3200 |
| Cylinder type |
Two external cylinders |
Two external cylinders |
| No. of standard remote valves |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
| Other features |
4WD drive system |
Bevel gear type |
Bevel gear type |
| Steering |
Hydraulic power steering |
Hydraulic power steering |
| Tilt steering |
Standard |
Standard |
| Hood type |
Full open, slanted type |
Full open, slanted type |
| Pedal type |
Hanging type |
Hanging type |
| Deck type (ISO-mounted w/ rubber mat) |
Semi-flat |
Full-flat |
| Panel type |
Electronic |
Electronic |
| Fender shape |
Wide, round |
Wide, round |
| Standard tyre size |
Standard Front |
320/85R24 |
320/85R24 |
| Standard Rear |
460/85R30 |
460/85R30 |
| Option Front |
320/85R24 |
320/85R24 |
| Option Rear |
420/85R34 |
420/85R34 |
| Option (vineyard) Front |
335/80R20 |
335/80R20 |
| Option (vineyard) Rear |
380/85R30 |
380/85R30 |
| Dimensions & weight |
Overall length (mm) |
3760 |
3760 |
| Overall height (top of ROPS/CAB) (mm) |
2465 |
2545 |
| Overall width (Minimum, ROPS/CAB) (mm) |
1980 |
1980 |
| Wheelbase (mm) |
2250 |
2250 |
| Crop clearance (Front Axle) (mm) |
465 |
465 |
| Front tread width (mm) |
1420 – 1520 |
1420 – 1520 |
| Rear tread width (mm) |
1520 – 1920 |
1420 – 1520 |
| Turning Radius (w/o brake) (m) |
4.2 |
4.2 |
| Tractor weight (kg) |
2450 |
2740 |
M8540 Loader Specifications
|
LA1353 |
| Tractor applications |
|
M8540 & M9540 |
| Boom Cylinder Fulcrum |
|
Height position | Power position |
| Maximum Lift Height (Pivot pin) (mm) |
|
3720 | 3390 |
| Clearance w/Attachment Dump (mm) |
|
2880 | 2545 |
| Reach @ Maximum Height (mm) |
|
536 | 927 |
| Maximum Drop Angle (degrees) |
|
49 | 60 |
| Reach w/Attachment on Ground (mm) |
|
2230 |
| Maximum Rollback Angle (degrees) |
|
40 |
| Digging Depth (When Bucket is Level) (mm) |
|
120 | 105 |
| Overall Height in Carry Position (mm) |
|
1716 |
| Material Bucket Width/capacity (Heaped) (m³) |
|
0.64 |
| Lift Capacity (Bucket Centre) (kg) |
|
1230 | 1350 |
| Raising Time to Full Height w/out Load (seconds) |
|
4.1 |
| Lowering time w/out Load (powerdown) (seconds) |
|
3.0 |
| Attachment Rollback Time (seconds) |
|
2.1 |
| Attachment Dumping Time (seconds) |
|
1.8 |
M9540DH
Premium ROPS Tractor
Kubota’s M9540DH utility tractor offers powerful performance with a 95HP, 4-cylinder turbo charged, E-CDIS engine. Designed for heavy duty work and equipped with hydraulic shuttle, Creep Speed and Autohitch for a more productive and practical operation. Available with a variety of attachments.
Performance
- Kubota’s revolutionary new centre direct injection system (E-CDIS) engines offer more durability, power and fuel efficiency.
- For heavy-duty work such as ploughing, hay work and heavy trailer applications, the M9540 is equipped with an F18/R18 transmission. This transmission features six speeds of the main shift and high/low/creep ranges.
- Standard with a 540/540E hydraulic independent PTO, to increase productivity.
- Category I & II 3-point hitches provide fast and simple attachment of rear-mounted implements. Two external hydraulic cylinders provide equal lifting force and smooth transfer of hydraulic power for easy operation.
- M-Series hydraulic pumps are located on the side case instead of on the engine, shortening the oil flow path and increasing efficiency. Shifting between forward and reverse is seamless and smooth with Kubota’s new and improved hydraulic shuttle. A column-mounted lever with left-hand operation makes shifting simple.
- Bevel-gear front axle provides the M40 series with better all around manoeuvrability, especially for jobs in tight spaces.
Comfort
- Reclining, weight-adjusted seats come standard, designed to absorb shock and significantly reduce operator fatigue.
- Digital LED panel makes viewing vital functions on this tractor clear and easy.
Front End Loader
- Optional LA1353E Kubota front end loader offers increased lifting power that’s perfect for farm use, and a fully integrated design with slanted boom to match the tractor’s hood. This sleek design also increases visibility and clearer sight lines to the bucket and loader sides.
- Sturdy, thick steel frame features no braces or connectors, making it quick and easy to attach the loader as well as offering increased visibility.
- Hydraulic tubes are neatly tucked inside the loader boom, better protecting the tractor hydraulics and offering increased operator visibility.
- Attach or detach the front loader in moments without the use of tools. The boom stands and mounting pins make this task a snap, allowing an extra measure of productivity and tractor versatility.
- Hydraulic self-leveling valve allows the operator to raise or lower the loader boom while keeping the bucket level to the ground. This helps prevent spills when carrying soil or sand and also makes pallet handling smooth and easy.
- QVX36 Mechanical Self Level Loader option available enabling the operator to keep the bucket level to the ground.
M9540 Specifications
|
M9540DH |
M9540DHC |
M9540DHC-DS |
| Engine |
|
V3800DI-T |
V3800DI-T |
V3800DI-TE3 |
| Make |
Kubota |
Kubota |
Kubota |
| Type |
E-CDIS, Direct Injection |
E-CDIS, Direct Injection |
E-CDIS, Direct Injection |
| No. of cylinders |
4 |
4 |
4 |
| Aspiration |
Turbocharged |
Turbocharged |
Turbocharged |
| Engine net power HP (kW) |
94.5 (70.5) |
94.5 (70.5) |
95 (70.8) |
| PTO power HP (kW) |
84 (62.7) |
84 (62.7) |
84 (62.7) |
| Total displacement (cc) |
3769 |
3769 |
3769 |
| Engine rpm |
2600 |
2600 |
2600 |
| Fuel tank capacity (L) |
90 |
110 |
110 |
| Alternator |
45 Amp |
60 Amp |
60 Amp |
| Transmission |
No. of speeds |
F18 / R18 (w/creep) |
F18 / R18 (w/creep) |
F36 / R36 (w/creep and Dual Speed) |
| Main gear shift (8 speeds) |
Fully synchronized |
Fully synchronized |
Fully synchronized |
| Hydraulic shuttle |
Standard, Dash-mounted |
Standard, Column-mounted lever |
Standard, Column-mounted lever |
| Max. travelling speed @ max. engine RPM Km/h |
35 |
35 |
39 |
| Main clutch type |
Multiple wet disc |
Multiple wet disc |
Multiple wet disc |
| Brake type |
Hydraulic wet disc |
Hydraulic wet disc |
4 wheel hydraulic wet disc |
| Mechanical differential lock |
Rear standard & front Limited Slip Differential |
Rear standard & front Limited Slip Differential |
Rear standard & front Limited Slip Differential |
| 4WD clutch type |
Mechanical |
Mechanical |
Electric over hydraulic |
| PTO |
Type |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, electric over hydraulic PTO |
| Speed (rpm) |
540 / 540E |
540 / 540E |
540 / 540E |
| Hydraulics |
Pump capacity (3-Point Hitch) (L/min) |
64.3 |
64.3 |
64.3 |
| 3-Point Hitch |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic lower link ends, Telescopic stabilizers |
| 3-Point Hitch Category |
II |
II |
II |
| 3-Point Hitch Control system |
Position, draft (top link sensing) & mixed control |
Position, draft (top link sensing) & mixed control |
Position, draft (top link sensing) & mixed control |
| 3-Point Hitch Lift capacity at 24 in. behind lift point (kg) |
3200 |
3200 |
3300 |
| Cylinder type |
Two external cylinders |
Two external cylinders |
Two external cylinders |
| No. of standard remote valves |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
| Other features |
4WD drive system |
Bevel gear type |
Bevel gear type |
Bevel gear type |
| Steering |
Hydraulic power steering |
Hydraulic power steering |
Hydraulic power steering |
| Tilt steering |
Standard |
Standard |
Standard |
| Hood type |
Full open, slanted type |
Full open, slanted type |
Full open, slanted type |
| Pedal type |
Hanging type |
Hanging type |
Hanging type |
| Deck type (ISO-mounted w/ rubber mat) |
Semi-flat |
Full-flat |
Full-flat |
| Panel type |
Electronic |
Electronic |
Electronic |
| Fender shape |
Wide, round |
Wide, round |
Wide, round |
| Standard tyre size |
Standard Front |
320/85R24 |
320/85R24 |
360/70R24 |
| Standard Rear |
460/85R30 |
460/85R30 |
480/70R34 |
| Option Front |
320/85R24 |
320/85R24 |
320/85R24 |
| Option Rear |
420/85R34 |
420/85R34 |
460/85R30 |
| Option (vineyard) Front |
335/80R20 |
335/80R20 |
335/80R20 |
| Option (vineyard) Rear |
380/85R30 |
380/85R30 |
380/85R30 |
| Dimensions & weight |
Overall length (mm) |
3760 |
3760 |
3955 |
| Overall height (top of ROPS/CAB) (mm) |
2490 |
2570 |
2650 |
| Overall width (Minimum, ROPS/CAB) (mm) |
1980 |
1980 |
2010 |
| Wheelbase (mm) |
2250 |
2250 |
2250 |
| Crop clearance (Front Axle) |
465 |
465 |
456 |
| Front tread width (mm) |
1520 – 1620 |
1520 – 1620 |
1540 – 1660 |
| Rear tread width (mm) |
1520 – 1920 |
1520 – 1920 |
1500 – 1698 |
| Turning Radius (w/o brake) (m) |
4.2 |
4.2 |
5.8 |
| Tractor weight (kg) |
2500 |
2800 |
3305 |
M9540 Loader Specifications
|
LA1353 |
| Tractor applications |
|
M8540 & M9540 |
| Boom Cylinder Fulcrum |
|
Height position | Power position |
| Maximum Lift Height (Pivot pin) (mm) |
|
3720 | 3390 |
| Clearance w/Attachment Dump (mm) |
|
2880 | 2545 |
| Reach @ Maximum Height (mm) |
|
536 | 927 |
| Maximum Drop Angle (degrees) |
|
49 | 60 |
| Reach w/Attachment on Ground (mm) |
|
2230 |
| Maximum Rollback Angle (degrees) |
|
40 |
| Digging Depth (When Bucket is Level) (mm) |
|
120 | 105 |
| Overall Height in Carry Position (mm) |
|
1716 |
| Material Bucket Width/capacity (Heaped) (m³) |
|
0.64 |
| Lift Capacity (Bucket Centre) (kg) |
|
1230 | 1350 |
| Raising Time to Full Height w/out Load (seconds) |
|
4.1 |
| Lowering time w/out Load (powerdown) (seconds) |
|
3.0 |
| Attachment Rollback Time (seconds) |
|
2.1 |
| Attachment Dumping Time (seconds) |
|
1.8 |
M9540DHC
Premium CAB Tractor
Kubota’s M9540DHC utility tractor offers powerful performance with a 95HP, 4-cylinder turbo charged, E-CDIS engine. Designed for heavy duty work and equipped with hydraulic shuttle, Creep Speed and Autohitch for a more productive and practical operation. Features rounded glass for increased CAB space and greater visibility. Available with a variety of attachments.
Performance
- Kubota’s revolutionary new centre direct injection system (E-CDIS) engines offer more durability, power and fuel efficiency.
- For heavy-duty work such as ploughing, hay work and heavy trailer applications, the M9540 is equipped with an F18/R18 transmission. This transmission features six speeds of the main shift and high/low/creep ranges.
- Standard with a 540/540E hydraulic independent PTO, to increase productivity.
- Category I & II 3-point hitches provide fast and simple attachment of rear-mounted implements. Two external hydraulic cylinders provide equal lifting force and smooth transfer of hydraulic power for easy operation.
- M-Series hydraulic pumps are located on the side case instead of on the engine, shortening the oil flow path and increasing efficiency. Shifting between forward and reverse is seamless and smooth with Kubota’s new and improved hydraulic shuttle. A column-mounted lever with left-hand operation makes shifting simple.
- Bevel-gear front axle provides the M40 series with better all around manoeuvrability, especially for jobs in tight spaces.
Comfort
- Rounded glass on the cab gives the operator more room and greater visibility. The height of the cab offers plenty of headroom and most levers and switches are placed to the right side console for easy access.
- Reclining, weight-adjusted seats come standard, designed to absorb shock and significantly reduce operator fatigue.
- Digital LED panel makes viewing vital functions on this tractor clear and easy.
Front End Loader
- Optional LA1353E Kubota front end loader offers increased lifting power that’s perfect for farm use, and a fully integrated design with slanted boom to match the tractor’s hood. This sleek design also increases visibility and clearer sight lines to the bucket and loader sides.
- Sturdy, thick steel frame features no braces or connectors, making it quick and easy to attach the loader as well as offering increased visibility.
- Hydraulic tubes are neatly tucked inside the loader boom, better protecting the tractor hydraulics and offering increased operator visibility.
- Attach or detach the front loader in moments without the use of tools. The boom stands and mounting pins make this task a snap, allowing an extra measure of productivity and tractor versatility.
- Hydraulic self-levelling valve allows the operator to raise or lower the loader boom while keeping the bucket level to the ground. This helps prevent spills when carrying soil or sand and also makes pallet handling smooth and easy.
- QVX36 Mechanical Self Level Loader option available enabling the operator to keep the bucket level to the ground.
M9540 Specifications
|
M9540DH |
M9540DHC |
M9540DHC-DS |
| Engine |
|
V3800DI-T |
V3800DI-T |
V3800DI-TE3 |
| Make |
Kubota |
Kubota |
Kubota |
| Type |
E-CDIS, Direct Injection |
E-CDIS, Direct Injection |
E-CDIS, Direct Injection |
| No. of cylinders |
4 |
4 |
4 |
| Aspiration |
Turbocharged |
Turbocharged |
Turbocharged |
| Engine net power HP (kW) |
94.5 (70.5) |
94.5 (70.5) |
95 (70.8) |
| PTO power HP (kW) |
84 (62.7) |
84 (62.7) |
84 (62.7) |
| Total displacement (cc) |
3769 |
3769 |
3769 |
| Engine rpm |
2600 |
2600 |
2600 |
| Fuel tank capacity (L) |
90 |
110 |
110 |
| Alternator |
45 Amp |
60 Amp |
60 Amp |
| Transmission |
No. of speeds |
F18 / R18 (w/creep) |
F18 / R18 (w/creep) |
F36 / R36 (w/creep and Dual Speed) |
| Main gear shift (8 speeds) |
Fully synchronized |
Fully synchronized |
Fully synchronized |
| Hydraulic shuttle |
Standard, Dash-mounted |
Standard, Column-mounted lever |
Standard, Column-mounted lever |
| Max. travelling speed @ max. engine RPM Km/h |
35 |
35 |
39 |
| Main clutch type |
Multiple wet disc |
Multiple wet disc |
Multiple wet disc |
| Brake type |
Hydraulic wet disc |
Hydraulic wet disc |
4 wheel hydraulic wet disc |
| Mechanical differential lock |
Rear standard & front Limited Slip Differential |
Rear standard & front Limited Slip Differential |
Rear standard & front Limited Slip Differential |
| 4WD clutch type |
Mechanical |
Mechanical |
Electric over hydraulic |
| PTO |
Type |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, electric over hydraulic PTO |
| Speed (rpm) |
540 / 540E |
540 / 540E |
540 / 540E |
| Hydraulics |
Pump capacity (3-Point Hitch) (L/min) |
64.3 |
64.3 |
64.3 |
| 3-Point Hitch |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic lower link ends, Telescopic stabilizers |
| 3-Point Hitch Category |
II |
II |
II |
| 3-Point Hitch Control system |
Position, draft (top link sensing) & mixed control |
Position, draft (top link sensing) & mixed control |
Position, draft (top link sensing) & mixed control |
| 3-Point Hitch Lift capacity at 24 in. behind lift point (kg) |
3200 |
3200 |
3300 |
| Cylinder type |
Two external cylinders |
Two external cylinders |
Two external cylinders |
| No. of standard remote valves |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
| Other features |
4WD drive system |
Bevel gear type |
Bevel gear type |
Bevel gear type |
| Steering |
Hydraulic power steering |
Hydraulic power steering |
Hydraulic power steering |
| Tilt steering |
Standard |
Standard |
Standard |
| Hood type |
Full open, slanted type |
Full open, slanted type |
Full open, slanted type |
| Pedal type |
Hanging type |
Hanging type |
Hanging type |
| Deck type (ISO-mounted w/ rubber mat) |
Semi-flat |
Full-flat |
Full-flat |
| Panel type |
Electronic |
Electronic |
Electronic |
| Fender shape |
Wide, round |
Wide, round |
Wide, round |
| Standard tyre size |
Standard Front |
320/85R24 |
320/85R24 |
360/70R24 |
| Standard Rear |
460/85R30 |
460/85R30 |
480/70R34 |
| Option Front |
320/85R24 |
320/85R24 |
320/85R24 |
| Option Rear |
420/85R34 |
420/85R34 |
460/85R30 |
| Option (vineyard) Front |
335/80R20 |
335/80R20 |
335/80R20 |
| Option (vineyard) Rear |
380/85R30 |
380/85R30 |
380/85R30 |
| Dimensions & weight |
Overall length (mm) |
3760 |
3760 |
3955 |
| Overall height (top of ROPS/CAB) (mm) |
2490 |
2570 |
2650 |
| Overall width (Minimum, ROPS/CAB) (mm) |
1980 |
1980 |
2010 |
| Wheelbase (mm) |
2250 |
2250 |
2250 |
| Crop clearance (Front Axle) |
465 |
465 |
456 |
| Front tread width (mm) |
1520 – 1620 |
1520 – 1620 |
1540 – 1660 |
| Rear tread width (mm) |
1520 – 1920 |
1520 – 1920 |
1500 – 1698 |
| Turning Radius (w/o brake) (m) |
4.2 |
4.2 |
5.8 |
| Tractor weight (kg) |
2500 |
2800 |
3305 |
M9540 Loader Specifications
|
LA1353 |
| Tractor applications |
|
M8540 & M9540 |
| Boom Cylinder Fulcrum |
|
Height position | Power position |
| Maximum Lift Height (Pivot pin) (mm) |
|
3720 | 3390 |
| Clearance w/Attachment Dump (mm) |
|
2880 | 2545 |
| Reach @ Maximum Height (mm) |
|
536 | 927 |
| Maximum Drop Angle (degrees) |
|
49 | 60 |
| Reach w/Attachment on Ground (mm) |
|
2230 |
| Maximum Rollback Angle (degrees) |
|
40 |
| Digging Depth (When Bucket is Level) (mm) |
|
120 | 105 |
| Overall Height in Carry Position (mm) |
|
1716 |
| Material Bucket Width/capacity (Heaped) (m³) |
|
0.64 |
| Lift Capacity (Bucket Centre) (kg) |
|
1230 | 1350 |
| Raising Time to Full Height w/out Load (seconds) |
|
4.1 |
| Lowering time w/out Load (powerdown) (seconds) |
|
3.0 |
| Attachment Rollback Time (seconds) |
|
2.1 |
| Attachment Dumping Time (seconds) |
|
1.8 |
M9540DHC-DS
Premium CAB Dual Speed Tractor
Kubota’s M9540DHC-DS utility tractor offers powerful performance with a 95HP, 4-cylinder turbo charged, E-CDIS engine. Designed for heavy duty work and equipped with hydraulic shuttle, Creep Speed and Autohitch for a more productive and practical operation. Features rounded glass for increased CAB space and greater visibility. Available with a variety of attachments.
Performance
- Kubota’s revolutionary new centre direct injection system (E-CDIS) engines offer more durability, power and fuel efficiency.
- Hydraulic Dual Speed, which further enhances the working capacity of the tractor, is included as standard on the M9540 DHC-DS.
- Standard with a 540/540E hydraulic independent PTO, to increase productivity.
- Category I & II 3-point hitches provide fast and simple attachment of rear-mounted implements. Two external hydraulic cylinders provide equal lifting force and smooth transfer of hydraulic power for easy operation.
- M-Series hydraulic pumps are located on the side case instead of on the engine, shortening the oil flow path and increasing efficiency. Shifting between forward and reverse is seamless and smooth with Kubota’s new and improved hydraulic shuttle. A column-mounted lever with left-hand operation makes shifting simple.
- Bevel-gear front axle provides the M40 series with better all around manoeuvrability, especially for jobs in tight spaces.
Comfort
- Rounded glass on the cab gives the operator more room and greater visibility. The height of the cab offers plenty of headroom and most levers and switches are placed to the right side console for easy access.
- Reclining, weight-adjusted seats come standard, designed to absorb shock and significantly reduce operator fatigue.
- Digital LED panel makes viewing vital functions on this tractor clear and easy.
Front End Loader
- Optional LA1353E Kubota front end loader offers increased lifting power that’s perfect for farm use, and a fully integrated design with slanted boom to match the tractor’s hood. This sleek design also increases visibility and clearer sight lines to the bucket and loader sides.
- Sturdy, thick steel frame features no braces or connectors, making it quick and easy to attach the loader as well as offering increased visibility.
- Hydraulic tubes are neatly tucked inside the loader boom, better protecting the tractor hydraulics and offering increased operator visibility.
- Attach or detach the front loader in moments without the use of tools. The boom stands and mounting pins make this task a snap, allowing an extra measure of productivity and tractor versatility.
- Hydraulic self-levelling valve allows the operator to raise or lower the loader boom while keeping the bucket level to the ground. This helps prevent spills when carrying soil or sand and also makes pallet handling smooth and easy.
- QVX36 Mechanical Self Level Loader option available enabling the operator to keep the bucket level to the ground.
M9540 Specifications
|
M9540DH |
M9540DHC |
M9540DHC-DS |
| Engine |
|
V3800DI-T |
V3800DI-T |
V3800DI-TE3 |
| Make |
Kubota |
Kubota |
Kubota |
| Type |
E-CDIS, Direct Injection |
E-CDIS, Direct Injection |
E-CDIS, Direct Injection |
| No. of cylinders |
4 |
4 |
4 |
| Aspiration |
Turbocharged |
Turbocharged |
Turbocharged |
| Engine net power HP (kW) |
94.5 (70.5) |
94.5 (70.5) |
95 (70.8) |
| PTO power HP (kW) |
84 (62.7) |
84 (62.7) |
84 (62.7) |
| Total displacement (cc) |
3769 |
3769 |
3769 |
| Engine rpm |
2600 |
2600 |
2600 |
| Fuel tank capacity (L) |
90 |
110 |
110 |
| Alternator |
45 Amp |
60 Amp |
60 Amp |
| Transmission |
No. of speeds |
F18 / R18 (w/creep) |
F18 / R18 (w/creep) |
F36 / R36 (w/creep and Dual Speed) |
| Main gear shift (8 speeds) |
Fully synchronized |
Fully synchronized |
Fully synchronized |
| Hydraulic shuttle |
Standard, Dash-mounted |
Standard, Column-mounted lever |
Standard, Column-mounted lever |
| Max. travelling speed @ max. engine RPM Km/h |
35 |
35 |
39 |
| Main clutch type |
Multiple wet disc |
Multiple wet disc |
Multiple wet disc |
| Brake type |
Hydraulic wet disc |
Hydraulic wet disc |
4 wheel hydraulic wet disc |
| Mechanical differential lock |
Rear standard & front Limited Slip Differential |
Rear standard & front Limited Slip Differential |
Rear standard & front Limited Slip Differential |
| 4WD clutch type |
Mechanical |
Mechanical |
Electric over hydraulic |
| PTO |
Type |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, hydraulic PTO with PTO brake, wet clutch |
Live-independent, electric over hydraulic PTO |
| Speed (rpm) |
540 / 540E |
540 / 540E |
540 / 540E |
| Hydraulics |
Pump capacity (3-Point Hitch) (L/min) |
64.3 |
64.3 |
64.3 |
| 3-Point Hitch |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic lower link ends, Telescopic stabilizers |
Telescopic lower link ends, Telescopic stabilizers |
| 3-Point Hitch Category |
II |
II |
II |
| 3-Point Hitch Control system |
Position, draft (top link sensing) & mixed control |
Position, draft (top link sensing) & mixed control |
Position, draft (top link sensing) & mixed control |
| 3-Point Hitch Lift capacity at 24 in. behind lift point (kg) |
3200 |
3200 |
3300 |
| Cylinder type |
Two external cylinders |
Two external cylinders |
Two external cylinders |
| No. of standard remote valves |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
2 (SCD, S/D Acting), 3rd & flow control valve optional |
| Other features |
4WD drive system |
Bevel gear type |
Bevel gear type |
Bevel gear type |
| Steering |
Hydraulic power steering |
Hydraulic power steering |
Hydraulic power steering |
| Tilt steering |
Standard |
Standard |
Standard |
| Hood type |
Full open, slanted type |
Full open, slanted type |
Full open, slanted type |
| Pedal type |
Hanging type |
Hanging type |
Hanging type |
| Deck type (ISO-mounted w/ rubber mat) |
Semi-flat |
Full-flat |
Full-flat |
| Panel type |
Electronic |
Electronic |
Electronic |
| Fender shape |
Wide, round |
Wide, round |
Wide, round |
| Standard tyre size |
Standard Front |
320/85R24 |
320/85R24 |
360/70R24 |
| Standard Rear |
460/85R30 |
460/85R30 |
480/70R34 |
| Option Front |
320/85R24 |
320/85R24 |
320/85R24 |
| Option Rear |
420/85R34 |
420/85R34 |
460/85R30 |
| Option (vineyard) Front |
335/80R20 |
335/80R20 |
335/80R20 |
| Option (vineyard) Rear |
380/85R30 |
380/85R30 |
380/85R30 |
| Dimensions & weight |
Overall length (mm) |
3760 |
3760 |
3955 |
| Overall height (top of ROPS/CAB) (mm) |
2490 |
2570 |
2650 |
| Overall width (Minimum, ROPS/CAB) (mm) |
1980 |
1980 |
2010 |
| Wheelbase (mm) |
2250 |
2250 |
2250 |
| Crop clearance (Front Axle) |
465 |
465 |
456 |
| Front tread width (mm) |
1520 – 1620 |
1520 – 1620 |
1540 – 1660 |
| Rear tread width (mm) |
1520 – 1920 |
1520 – 1920 |
1500 – 1698 |
| Turning Radius (w/o brake) (m) |
4.2 |
4.2 |
5.8 |
| Tractor weight (kg) |
2500 |
2800 |
3305 |
M9540 Loader Specifications
|
LA1353 |
| Tractor applications |
|
M8540 & M9540 |
| Boom Cylinder Fulcrum |
|
Height position | Power position |
| Maximum Lift Height (Pivot pin) (mm) |
|
3720 | 3390 |
| Clearance w/Attachment Dump (mm) |
|
2880 | 2545 |
| Reach @ Maximum Height (mm) |
|
536 | 927 |
| Maximum Drop Angle (degrees) |
|
49 | 60 |
| Reach w/Attachment on Ground (mm) |
|
2230 |
| Maximum Rollback Angle (degrees) |
|
40 |
| Digging Depth (When Bucket is Level) (mm) |
|
120 | 105 |
| Overall Height in Carry Position (mm) |
|
1716 |
| Material Bucket Width/capacity (Heaped) (m³) |
|
0.64 |
| Lift Capacity (Bucket Centre) (kg) |
|
1230 | 1350 |
| Raising Time to Full Height w/out Load (seconds) |
|
4.1 |
| Lowering time w/out Load (powerdown) (seconds) |
|
3.0 |
| Attachment Rollback Time (seconds) |
|
2.1 |
| Attachment Dumping Time (seconds) |
|
1.8 |
Ongmac Trading uses the IP2Location LITE database for IP geolocation.
