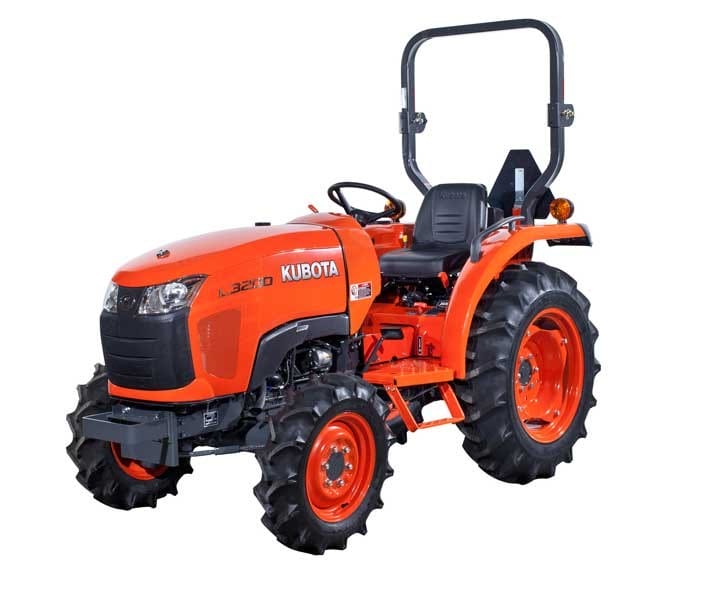

Kubota L3200 / Kubota L3800

Front Features

Powerful Engines

The Kubota L3200 gear-drive model provides 26.7 PTO horsepower (HST
model: 25.2 PTO horsepower), while the Kubota L3800 gear-drive model
provides 31.5 PTO horsepower (HST model: 30.3 PTO horsepower).

HYDROSTATIC TRANSMISSION (HST MODEL)

3-range Shift for Optimal Speed Selection

An in-line shifting pattern enables easy range shifting from low to medium to high. The shift is also conveniently located on the left side of the operator’s seat for simple operation.

Cruise Control (optional)

To keep your working speed constant, simply set the infinite, mechanical cruise control lever on either the L32OO or Kubota L3800 HST models to your desired speed—and go.

GEAR-DRIVE TRANSMISSION (GEAR MODEL)

Powerful and Versatile Means Getting the Job Done Faster.
You’ll finish the big jobs easily with the mechanical shuttle transmission featuring inline shifting in the low and reverse ranges for faster direction changes. Moreover, the transmission offers 8 forward and 4 reverse speeds (8F/4R), enabling you to select the right speed for higher productivity.

Slide-out Radiator Screen / Gas-strut Open Bonnet

The sleek and slanted bonnet provides a greater field of vision, which becomes handy for front loader operations. Visibility is also enhanced with new multiple headlamps that are useful in dark and inclement conditions. Furthermore, the one-piece front bonnet can be fully opened for easier access to the engine to make routine inspections and maintenance a breeze.

Spacious Operator’s Deck

To provide maximum comfort, the L3200 and Kubota L3800 feature a spacious operator platform. Its semi-flat design also makes getting on and off the tractors easier.

Suspension Seat

The suspension seat offers a high level of comfort. This contoured seat is ergonomically designed to reduce fatigue, even after long workdays.

Smooth Power Steering
To reduce fatigue, these tractors come equipped with a smooth, easy-turn, integral power steering.

Choice Of Tyres

Tyres designed for specific jobs enable the L3200 and Kubota L3800 to perform even better. Select from AG, Industrial, and Turf.

Large Fuel Tank
An ample 38-litres fuel tank lets you fill up with more fuel so you can operate longer.

Rear Features

Live Continuous-running PTO & 3-point Hitch*

The L3200/L3800 HST models and the L3800 gear-drive model include a live, continuous-running rear PTO for easier operation. The HST models also feature an over-running clutch on the PTO shaft to protect the transmission. Finally, a stationary PTO feature enables the use of various implements, such as pumps. *Telescopic stabilizer is optional.

Conveniently Located PTO Lever

To further enhance access and entry/exit, the PTO lever is located on the right side of the operator’s seat (HST models), or to the right side of the deck center cover (gear-drive models).

Wet-disc Brakes

Responsive and smooth, our long-life wet-disc brakes are immersed in oil, and require only the slightest foot pressure to activate.

Roll-Over Protective Structure (ROPS)

For maximum protection, all models come with foldable ROPS as a standard feature.

Cup/Mug Holder

This convenient holder securely fits a cup or a mug so you can always quench your thirst.

L4600

FRONT FEATURES

New Engine

Known for its reliability and power, the new Kubota E-TVCS diesel
engine generates 38.3 PTO horsepower* to let you tackle most jobs.
The rugged power plant delivers dynamic output and high torque, while
significantly reducing vibration and noise with a built-in balancer. It also
produces clean emissions to meet the EPA’s latest Interim Tier 4 regula-
tions. Plus, it includes the advanced Operator Presence Control (OPC),
engine key-stop, and much more.
*HST model: 36.8 horsepower

NEW GEAR-DRIVE TRANSMISSION
8×8 Synchro Shuttle Transmission

This new transmission offers 8 forward and 8 reverse speeds (8F/8R),
enabling you to select the right speed for higher productivity. Moreover, the synchro shuttle shift lever is conveniently located at the left side of the seat allowing you to quickly and easily switch between forward and reverse. It’s particularly handy when performing tasks that require repetitive forward/reverse motions, like front loader work.

Feather-Step HST (Hydraulic servo mechanism)

Kubota’s 44.5cc Feather-Step HST features a hydraulic servo system that increases pedal responsiveness, providing easy pedal-shifting operation for smoother performance and improved control, regardless of load size. Now, forward and reverse directional changes are easier. The HST also reduces shock, vibration, noise and fatigue to improve tractor performance and operator comfort. Plus, it features a hand-operated, step-less cruise control, which keeps your working speed constant.

Cruise Control Lever

The cruise control lever is conveniently located on the left side of the operator’s seat for easier access. Simpler than button and pedal combination systems, our lever lets you select and maintain the right travel speed to help reduce operator fatigue.

Gas-strut Open Bonnet / Slide-out Radiator Screen

The new one-piece front bonnet can be fully opened for easier access to the engine, as well as easy removal of the radiator screen from either side to simplify cleaning.

Bevel Gear Front Axle

A superior feature that delivers an extremely tight turning radius with full power transfer to the wheels at every steering angle.

Smooth Power Steering

To reduce fatigue, 4-wheel drive models come equipped with a smooth, easy-turn, integral power steering.

Long Wheelbase

The L46OO maximises both power and stability, thanks to its long 1845 mm wheelbase.

Large Fuel Tank

You’ll spend more time working and less time refueling with our large-capacity 48 litres fuel tank.

REAR FEATURES

User-friendly Hydraulic Independent PTO & 3-point Hitch

This convenient feature lets you operate the hydraulic independent PTO without using a clutch. Engaging and disengaging the PTO is simple. Other features include a flip-up type PTO shield, top link holder, and telescopic stabilisers.

Electric PTO Switch

Our new PTO switch makes PTO operation easier than ever.
Conveniently located on the side console, one turn starts and stops the PTO.

Wet-disc Brakes

Responsive and smooth, our long-life wet-disc brakes are immersed in oil, and require only the slightest foot pressure to activate.
