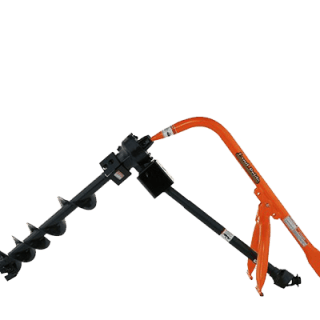

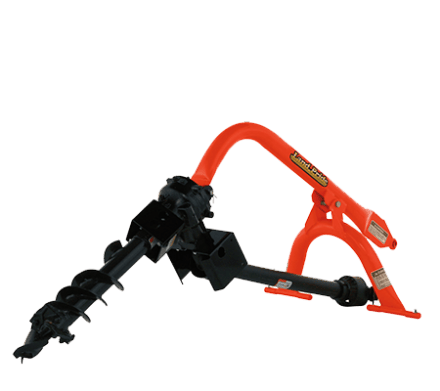

The PD10 Series Post Hole Digger is just right for 3-point attachment to Cat. 1 subcompact utility tractors. These units offer a 30″ auger length and a choice of 6″, 9″, & 12″ auger flights with cast steel fishtail tips for quick piloting and faster hole starting. Landscapers, rental yards, contractors, farmers, ranchers, and homeowner will find that the PD10 meets their general duty needs and applications.

---

SPECIFICATIONS



		PD10
Horsepower		15-30 HP
Hitch		Cat. 1
Yoke (mm)		2-7/8″ (73) Tubing
Boom (mm)		2-7/8″ (73) Tubing
Output Shaft (mm)		2″ (50)
Input RPM		520 Tractor at 300 RPM
Driveline		Cat. 2
Component Protection		Shear-Bolt
Max Auger RPM		96
Auger Length (mm)		30″ (76)
Auger Sies (mm)		6″, 9″ or 12″ (152, 228 or 305)
Flighting Thickness (mm)		1/4″ (6.4)
Options		Storage Stand
