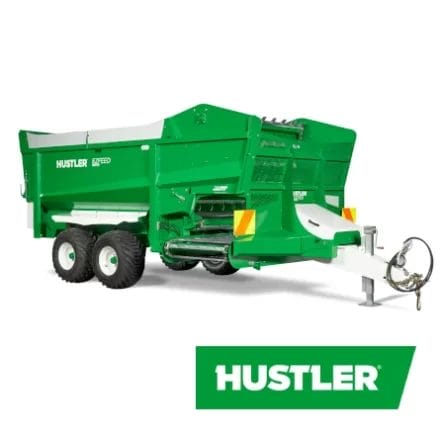

With a slew of innovative features, the new EzFeed silage wagons have the stats to make you hungry for more. Strength, reliability and simplicity combine to make these the best silage wagons money can buy.
The most simple, reliable silage wagon on the market designed for farmers who simply cannot afford downtime and rely solely on silage as the supplementary feed of choice. Ideal for trough feeding, feeding under a wire, feeding along a fence line avoid trampling and general pasture feeding.

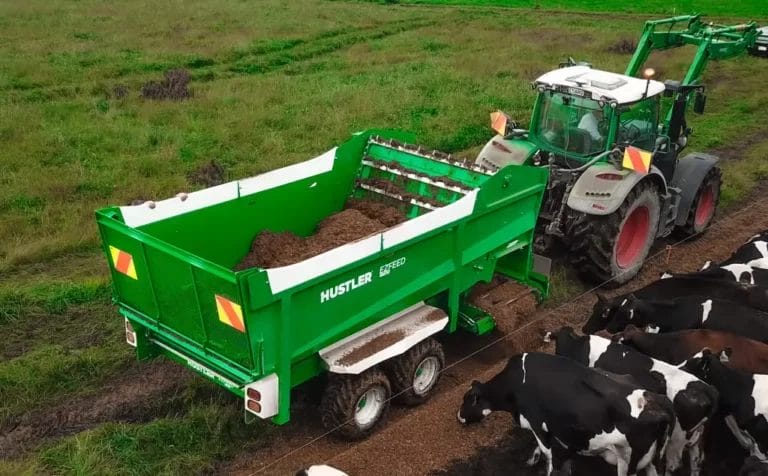

With EzFeed gone are the days of trouble-some link chains and conveyor belts which require constant adjustment, fine-tuning and are often slipping or breaking disrupting your feeding program. EzFeed is the first wagon on the market to run a 100% roller-chain design to overcome this.
High-impact resistant and rotational moulded, our replaceable Hungry Boards can take a beating from your front-loader without turning to splinters and making your nice new EzFeed silage wagon look all dinged up. Another industry first from Hustler.
The first silage wagon to feature left or right hand feed discharge for more feeding versatility. And with 5 positions for the discharge floor allows for easy setup when feeding into troughs. Coming soon is an electric in-cab controller option for on the fly feed direction change and hydraulic side-shift.
As the name suggests EzFeed makes feeding silage easier than ever before. As standard only one set of hydraulics is all it takes to connect and power the whole machine and our clever adjustable load-sensing hydraulics takes care of the rest making EzFeed the ideal wagon for low-skilled staff.
Built utilising our proven Combi wagon platform EzFeed has the toughest axle design on the market by a country mile, large suspension travel, comes scale ready for our industry first FeedLink feed management system which weighs on both the jack/skid and drawbar, impact resistant puck-board floors, toughest bars and more.
| Round Bales (single layer): | 3-6 |
| Medium Squares: | 6-8 |
| Large Squares (8ft long): | 6-8 |
| Loose Silage (load-level): | 14m3 |
| Loose Silage (heaped load): | 16.5m3 |
| Maximum Load: | 10,000kg |
| Overall Width: | 2950mm |
| Overall Length: | 6750mm |
| Overall Height/Loading Height: | 2430mm |
| Standard Tyres: | 400 / 60 x 15.5 Flotation Grip Tread |
| Axle: | Tandem Walking Beam |
| Brakes | Optional 2 or 4 wheel braking |
| Weigh Scales: | Optional Feedlink weighing and feed management system |
| Floors (Bed Floor / Cross Floor): | 15mm HD Puck Board / 12mm HD Puck Board |
| Chains (Bed / X floor / Elevator): | Chainless / Twin 12,000lb Roller Chains / Twin 12,000lb Roller Chains |
| Feed bars (Bed / X Floor / Elevator): | Twin Hydraulic Rams / 65 x 35 RHS / 40 x 40 RHS |
| Joystick: | In-cab Electric Control w/ Bales and Silage Mode |
| Hydraulics required: | 2 pair double acting |
| Elevator width: | 1645mm wide chain/slat |
| Jack: | 80mm 2 speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand |
| Towing Eye | 50mm swiveling forged eye |
| Overall Length | 7050 mm (277.56”) |
| Overall Width | 2800 mm (110.236”) |
| Height | 2710 mm (106.693”) |
| Loading Height | 2600 mm (102.362”) |
| Loose Silage (load-level) | 13 m3 (17 yd3) |
| Loose Silage (heaped load) | 14 m3 (18.31 yd3) |
| Maximum Load | 10,000 kg (22,046 lbs) |
| Tyres | 400 / 60 x 15.5 Flotation Grip Tread |
| Axle | Tandem Walking Beam |
| Brakes | Optional 2 wheel braking |
| Guards | Standard removable HD guards |
| Remote greasing | Standard |
| Ladder | Standard |
| Weigh Scales | Optional Feedlink weighing and feed management system |
| Floors (Bed Floor / Cross Floor) | 15mm (0.6”) HD Puck Board / 15mm (0.6”) HD Puck Board |
| Chains (Bed / Elevator / Conveyor) | Twin 5,443kg (12,000lb) Roller Chains / Twin 5,443kg (12,000lb) Roller Chains / Twin 5,443kg (12,000lb) Roller Chains |
| Feed bars (Bed / Elevator / Conveyor) | 65 x 35 RHS / 65 x 35 RHS / 50 x 25 RHS |
| Drive system (Bed / Elevator / Conveyor) | Sealed Reduction Gearbox / Direct Drive / Direct Drive |
| Hydraulics required | 1 x double acting, 50-60 litres/min (11-13 gallons / min), 2250-3000 psi |
| Conveyor | TwinFeed LH & RH side discharge, 1000mm (39.4”) wide chain/slat |
| Jack | 80mm (3.15”) 2 speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand |
| Towing Eye Size | 50mm (2”) |
