RSH/HP Stone Crusher 360-500hp

RSH/HP Stone Crusher for PTO tractors with fixed teeth rotor
from 360 to 500 hp

The top of the FAE range of professional stone crushers.

The RSH/HP is the ultimate FAE stone crusher, the ideal solution for crushing rock slabs and stones up to 50 cm in diameter at a depth of up to 50 cm.

It is compatible with tractors between 360 and 500 hp and has a working width up 210 to 260 cm.

The RSH/HP is recommended for challenging agricultural conversion operations, where the land contains rock and stones of significant dimensions, in order to prepare the soil for agricultural use.

The wide opening and the counter blade allow large material to be guided towards the rotor, as well as to maintain consistent performance while working the land.

The optional rear grill holds back larger materials, releasing it only when it has reached its optimum granulometry.

For an excellent, even distribution of the crushed material, the RSH/HP can be fitted with an adjustable steel dosing blade upon request.

The side reduction gears with an oil-cooling system guarantee efficiency, reliability and reduced maintenance requirements.

The gear transmissions guarantee optimum power transfer and, as a result, a longer lifespan for the components.

The use of high-resistance, anti-wear steels for the frame, the interchangeable internal and external guards, and the forged-steel tooth-holder with heat treatment all guarantee the RSH/HP a robust construction that has nothing to fear from even the most challenging tasks.

The RSH/HP stone crusher is available with two types of rotor: type “R” holds teeth with a round tang and is ideal for crushing loose stones and rock; while type “G” is ideal for lands where stones emerge.

Both rotors come with side teeth which allow the crushing chamber to be kept clean at all times.

The offer is completed by 4 different types of teeth, to be chosen based on the nature of the work and the rotor attached.

Fits Tractor

from 360 to 500 hp

Shredding Diameter

50 cm max

Working Depth

50 cm max

Most Important Features

Wide Opening

to efficiently process more material

Steel structural frame

maximum strength and durability in heavy duty operations

Interchangeable Hardox anti-wear plates

quick and easy maintenance

Side reduction gears and central gearbox with oil-cooling system
maximum productivity and efficiency maintained in all conditionshttps://www.youtube.com/watch?v=MgfPn9me8Gw

APPLICATIONS

• AGRICULTURE
• ROCK CRUSHING
• SLAB/ROCK CRUSHING
• LAND CONVERSION AND RECLAMATION

STANDARD EQUIPMENT

• Hydraulic rear hood
• Interchangeable inner antiwear plates in Hardox®
• Enclosed machine body
• Inside lateral protection
• Protection chains
• Adjustable Hardox® counter-blade
• Transmission with side gearbox
• Side gearbox with oil cooling system
• Gearbox with freewheel
• PTO shaft
• Friction clutches
• Bolt-on rotor shafts (in forged steel)
• Penetration skids

TEETH

DESIGNED TO BE INCOMPARABLE

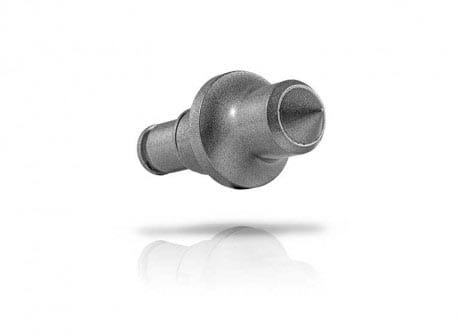

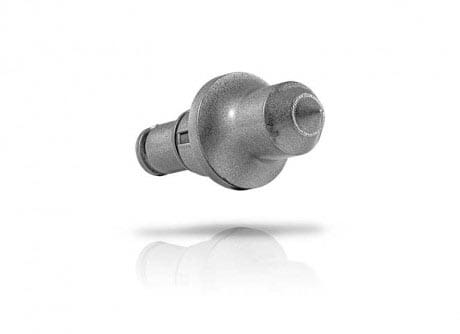

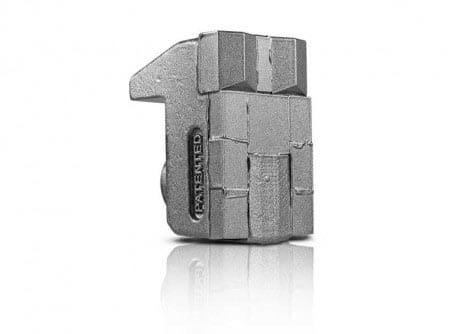

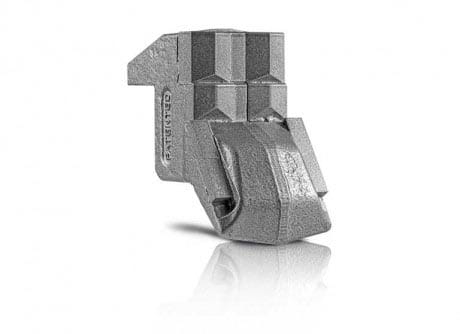

Ideal for: buried stumps, peaty soil, bituminous road, low rock content Teeth G/3STANDARD Ideal for: buried stumps, peaty soil, bituminous road, low rock content Teeth G/3 HDOPTIONAL Ideal for: Peaty soil, low rock content Teeth R65OPTIONAL Ideal for: Peaty soil, low rock content, paved roads, stone slabs Teeth R/HD 65OPTIONAL Ideal for: peaty soil, rocks Side scraper STC/FPSTANDARD Ideal for: peaty soil, rocks Side scraper STC/3/FPSTANDARD Previous Next

OPTIONS

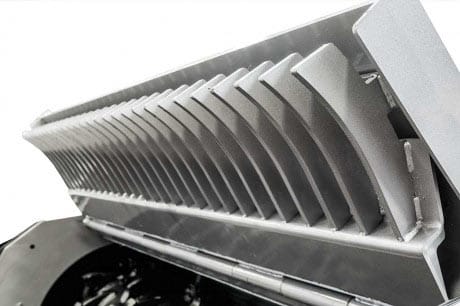

Bolted grid on rear hood

Multiple tooth options

Hydraulic top link

Dozing blade
