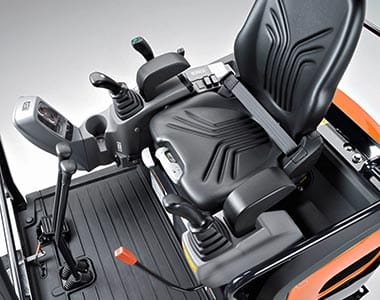

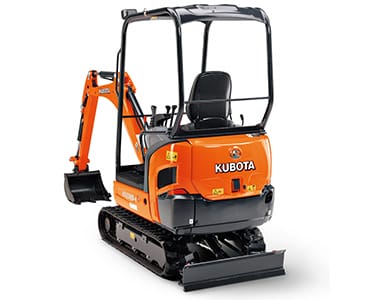

Setting the benchmark for mini excavators, the premium Kubota KX018-4 is engineered to handle the heaviest of loads in the tightest of places.With a roomy operators area, the Kubota KX018-4 is jam packed with features to increase productivity and comfort. Powered by a reliable Kubota 17HP engine, experience powerful digging force and a wider working range then ever before.
KX018-4 | ||
---|---|---|
Type of ROPS | Canopy | |
Type of tracks | Rubber | |
Engine | Model | Kubota D902-BH |
Output (SAE J1995 gross) HP (kW)/rpm | 17.0 (12.7) / 2300 | |
Output (SAE J1349 net) HP (kW)/rpm | 15.2 (11.3) / 2300 | |
Displacement (cc) | 898 | |
Dimensions | Overall length (mm) | 3710 |
Overall height (mm) | 2330 | |
Overall width (mm) | 1300 / 990 | |
Min. ground clearance (mm) | 160 | |
Hydraulic system | Pump capacity (I/min) | 17.3 x 2 / 10.4 x 1 / 6.2 x 1 |
Auxiliary hydraulic flow (I/min) | 27.7 | |
Max. breakout force (Bucket) kgf | 1630 | |
Max. breakout force (Arm) kgf | 840 | |
Drive system | Travel speed (km/h) | 2.2 / 4.0 |
Max. traction force (kgf) | 2230 | |
Tumbler distance (mm) | 1230 | |
Crawler length (mm) | 1585 | |
Shoe width (mm) | 230 | |
Ground contact pressure (kgf/cm2) | 0.26 | |
Canopy | – | |
Cab | – | |
Swing system | Unit swing speed (rpm) | 9.1 |
Boom swing angle (left) (degree) | 75 | |
Boom swing angle (right) (degree) | 60 | |
Blade | Dimensions (width) (mm) | 1300 / 990 |
Dimensions (height) (mm) | 230 | |
Max. lift above ground (mm) | 230 | |
Max. drop below ground (mm) | 230 | |
Hydraulic oil (reservoir / system) (l/min) | 15.5 / 28 | |
Fuel reservoir (l/min) | 21 | |
Operating weight (kgs) | 1700 | |
Operator weight (canopy) (kgs) | – |
