3.0 TONNE
The Kubota 3-ton class KX033-4 excavator is designed for efficiency, built for stability and created for comfort. With a strong breakout force and exceptional power the KX033-4 offers a level of performance to handle a wide variety of tough excavating jobs with speed and efficiency.

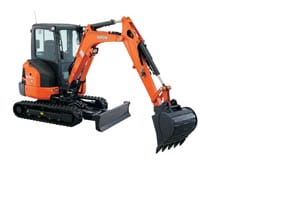

PERFORMANCE

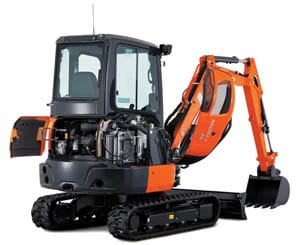

MAINTENANCE

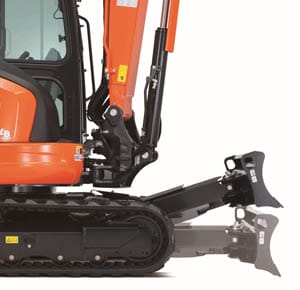

VERSATILITY

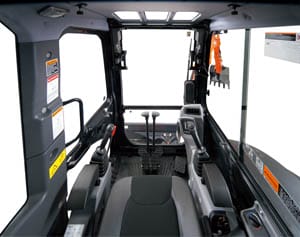

COMFORT
Model | KX033-4 | |
---|---|---|
Type of ROPS | Canopy / Cab | |
Type of tracks | Rubber / Steel | |
Engine | Model | Kubota D1703M-DI-E4 |
Output (SAE J1995 gross) HP (kW)/rpm | 24.8 (18.5) / 2200 | |
Output (SAE J1349 net) HP (kW)/rpm | 23.2 (17.3) / 2200 | |
Displacement (cc) | 1647 | |
Dimensions | Overall length (mm) | 4730 |
Overall height (mm) | 2480 / 2470 | |
Overall width (mm) | 1550 | |
Min. ground clearance (mm) | 290 | |
Boom offset – Right / Left | 410 / 450 | |
Blade lift – Upper / Low | 365 / 375 | |
Hydraulic system | Pump capacity (I/min) | 39.6 × 2 / 20.9 × 1 |
Auxiliary hydraulic flow (I/min) | 60 | |
Max. breakout force – Bucket / Arm (kgf) | 3694 / 1756 | |
Drive system | Travel speed (km/h) | 3.0 / 4.6 |
Max. traction force (kgf) | 2763 | |
Tumbler distance (mm) | 1665 | |
Crawler length (mm) | 2100 | |
Shoe width (mm) | 300 | |
Ground contact pressure | Canopy – Rubber / Steel (kgf/cm2) | 0.307 / 0.315 |
Cab – Rubber / Steel | 0.321 / 0.329 | |
Swing system | Unit swing speed (rpm) | 8.9 |
Boom swing angle (left) (degree) | 70 | |
Boom swing angle (right) (degree) | 48 | |
Blade | Dimensions (width) (mm) | 1550 |
Dimensions (height) (mm) | 345 | |
Max. lift above ground (mm) | 365 | |
Max. drop below ground (mm) | 375 | |
Angle – Left / right | – | |
Hydraulic oil (reservoir / system) (l/min) | 42 / 74 | |
Fuel reservoir (l/min) | 46.9 | |
Operating weight – inc operator weight @ 75kg | Canopy – Rubber / Steel (kgs) | 3365 / 3454 |
Operating weight – inc operator weight @ 75kg | Cab – Rubber / Steel (kgs) | 3511 / 3600 |
