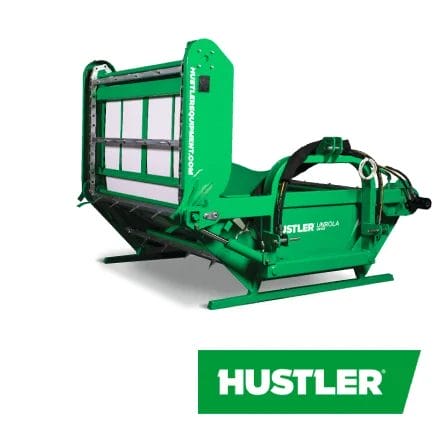

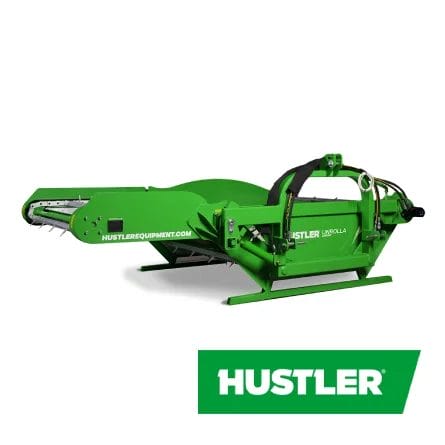

A self-loading 3-point-linkage mounted trough feeder suitable for feeding out into troughs, feed bunkers, over fences or onto feed pads a wide variety of mainly round bales and silage along with some square bales when using the optional sidebars. The LM105T feedlot bale unroller is suited for farms feeding out 50-800 bales each year.
| Bale round sizes: | 4’ X 4’ – 6’ X 5’ |
| Bale weight: | Up to 1000kg |
| Unit weight: | 690kg |
| Capacity: | 1x bale (round or square) |
| Hydraulics required: | 2 X double-acting, 30-60 litres/min, 2250-3000 psi |
| Loading: | Self loading |
| Chains: | 24,000lbs load rated roller chains |
| Size (L x W x H) with elevator in down position: | 1979 x 2990 x 1084 mm |
| Size (L x W x H) with elevator in up position: | 1979 x 2191 x 2151 mm |
| Size (L x W x H) with elevator in 45° position: | 1979 x 2766 x 1363 mm |
