Great Plains Rigid Vertical Tillage SS0300/1300 SUBSOILER

Designed for deep vertical tillage, the Great Plains Inline Sub-Soiler shatters yield-robbing compaction layers created by horizontal tillage tools such as plows, disks, and sweep implements. With a working depth of 12″ to 16″ (30cm – 40cm), this autumn tillage tool resets the soil profile and maintains uniform soil density with minimal topsoil disturbance and no residue burial. The Sub-Soiler’s frame features high-tensile, 3/8″ (9.53mm) wall tubing for added strength and durability. The SS0300 is available in 3, 5 or 6 shank with spacing of 75cm, 68cm or 54cm. The ¾” (19mm) no-till shank and no-till point provide maximum shatter with minimum surface disturbance. To achieve the full benefits of vertical tillage, it is important to select a point design that promotes horizontal fracture without blowout. The Sub-Soiler is offered with several different point options to fit a variety of conditions and needs.

SPECIFICATIONS



	SS0300	SS1300	SS1800	SSH (SubSoiler Hitch)
Shank Spacing	27.5″, 29.5″ (70cm, 75cm)	24″, 30″ (61cm, 76cm)	30″, 36″, 38″, 40″ (76, 91, 96, 101cm)	—
Tractor Attachment	3 Point Linakage	3 Point Linakage	3 Point Linakage	Drawbar
Tires	20.5 x 8 10-ply (gauge wheels)	20.5 x 8 10-ply (gauge wheels)	20.5 x 8 10-ply (gauge wheels)	12.5L x 15″
Weight (Approx. lb (kg) No-Till Shank – Auto-Reset	2030 – 4300 lbs (921 – 1950kg)	2,339 – 3,778 lbs ( 1061 – 1714kg)	4,850 – 5,125 lbs (4850 – 5125kg)	3040 (1379kg)
PTO H.P Req (Min)	150+	150+	300+	—
Tillage Width	6′ 9″ – 9′ 9″ (2.1m – 3.5m)	7′ 6″ – 16′ (2.3m – 3.01m)	17″ 6′ – 20′ (5.36m – 6.09m)	—

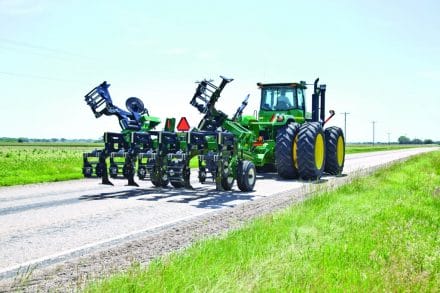

Transport Width	9′ 10″ (3m)	11′ 2″ – 16′ 5″ (3.4 – 4.87m)	12′ 9″ – 13′ 1″ (3.9m – 4m)	—
Transport Height	—	—	—	—
Length	—	—	—	14′ (4.27m)
Standard Factory Equipment
2 Bar Frame of 4x6x3/8” wall tubing	✔	✔	✔	—
2 Bar Frame of 4x6x3/8” wall tubing	✔	✔	✔	—
Tillage depth from 8” to 18” 20-46cm	✔	✔	✔	—
39” (99cm) under frame shank clearance	✔	✔	✔	—
(2) 20.5 x 8 load range E 6 bolt gauge wheels	✔	✔	✔	—
Safety kit including SMV and lights	✔	✔	✔	—
Cat. 3 & 3N pin	✔	✔	✔	—
Extendable Main Frame	✔	✔	✔	—
Replaceable wear shins on no-till shanks	✔	✔	✔	—
Replaceable and reversible shins on 1 ¼” (3cm) shanks	✔	✔	✔	—
(2) shank mount options: rigid or auto reset	✔	✔	✔	—
Both rigid and auto reset are shear bolt protected	✔	✔	✔	—
Adjustable Gauge Wheel w/Jack	✔	✔	✔	—
(6) tip options (at additional charge) for (3cm) 1 ¼” Shank	✔	✔	✔	—
(1) tip option (at additional charge)for No-Till Shank	✔	✔	✔	—
Large cast strap hitch adjustable for differing hitch heights	—	—	—	✔
Lift range at quick hitch: 14” to 41”	—	—	—	✔
Dual 12.5L-15 F-load rated tires on 8-bolt wheels	—	—	—	✔
Adjustable dual centers of 19 7/8” or 24 ½”	—	—	—	✔
Gauge wheel centers are adjustable from 76” to 94”	—	—	—	✔
Re-phasing hydraulic cylinders on gauge wheels: 5”x16” – master, 4 3/4”x16” slave	—	—	—	✔
Heavy turnbuckle top link	—	—	—	✔
Transport lock channels	—	—	—	✔
Can be used with tillage or drills	—	—	—	✔
Light harness extension	—	—	—	✔
Spring hose bracket on strap hitch	—	—	—	✔
Quick hitch will accommodate Category II, IIIN, or III	—	—	—	✔
Safety chain	—	—	—	✔
Jack	—	—	—	✔
Depth Stop Kit (2)	—	—	—	✔
Standard Factory Equipment
(30) 75cm shank spacing option	✔ SS0300-3	✔ SS1300-5	✔ SS1800-7	—
(52) 68cm shank spacing option	✔ SSo300-5	—	—	—
(24) 61cm shank spacing option	—	✔ SS1300-8	—	—
(50) 54cm shank spacing option	✔ SS0300-6	—	—	—
No Till Shank and Shin 2cm	✔	✔	✔	—

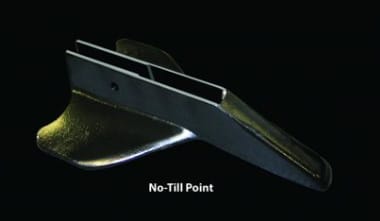

No Till Point	✔	✔	✔	—

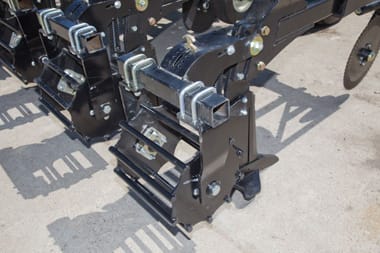

Berm Conditioner for No Till	✔	✔	✔	—
(30) Category III Hitch Links	—	—	—	✔
(71) Cast Hitch Strap Category IV	—	—	—	✔
