PICKER/R

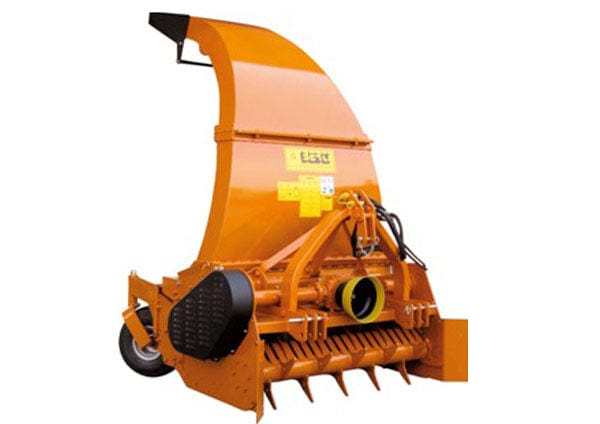

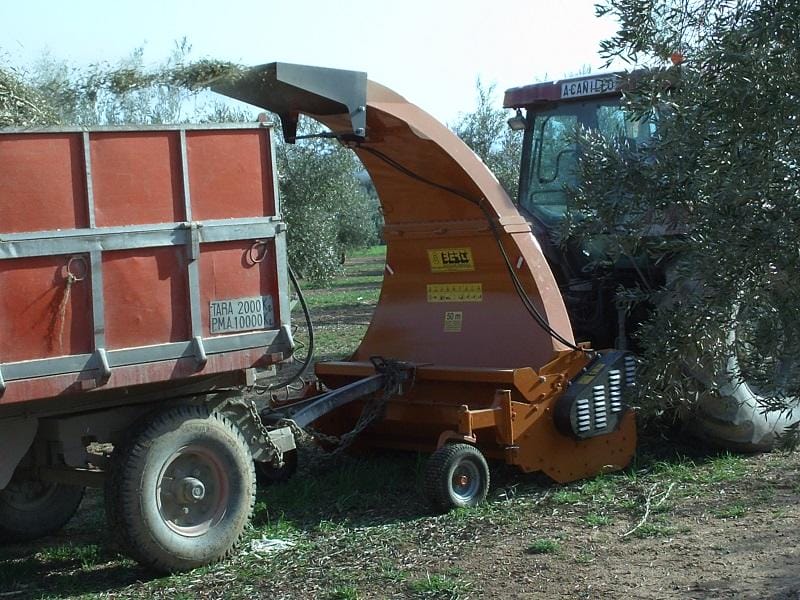

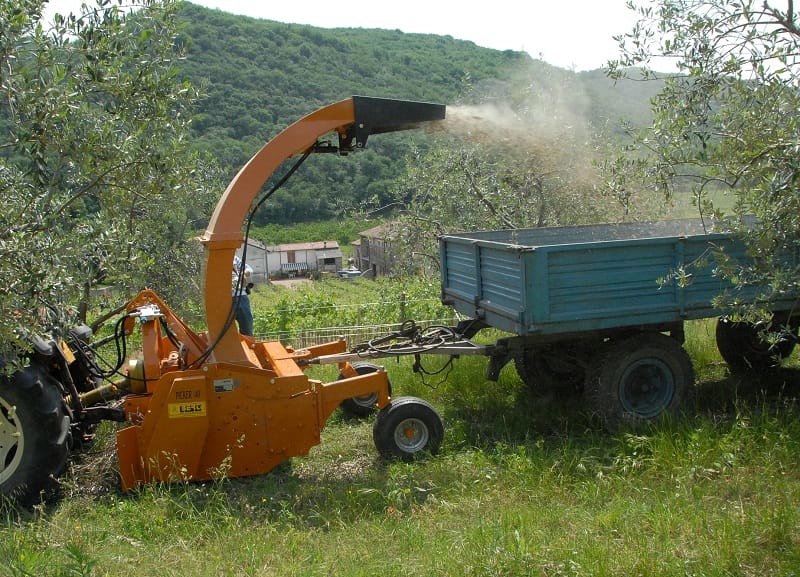

Special mulcher with pick-up rotor and “BERTI chute-conveyor”, suited for mulching wooden material such as pruning and branches (up to Ø 8 cm.), ideal for vineyards and orchards. For tractors from 60 to 140 HP. The mulched material is collected and discharged to the rear, into a trailer or alikes.

Standard equipment: fixed 3-points linkage Cat. I – II, top link tie rod, exclusive “BERTI chute-conveyor”, towards the rear, free wheel in the gearbox, “Pick-up” rotor with mechanical transmission through self-lubricating chain, special heavy-duty torque limiter slip clutch in the “Pick-up” rotor’s transmission, full automatic belts adjuster, set of pivoting wheels with height mechanical adjusting, double chassis, hook for trailer (suited for 2 axels trailers, only), counter-blades, forged and hardened BERTI, frontal conveying guards, PTO 540 rpm.

Accessories on request: hydraulic transmission of pick-up rotor with speed-adjusting valve (in lieu of mechanical transmission), kit mulching for orchards, Pick-up rotor with extra-quantity of teeth,forestry rotor (max 12 cm), centrifugal clutch, exclusive design by BERTI (recommended with forestry rotor), PTO drive shaft.
