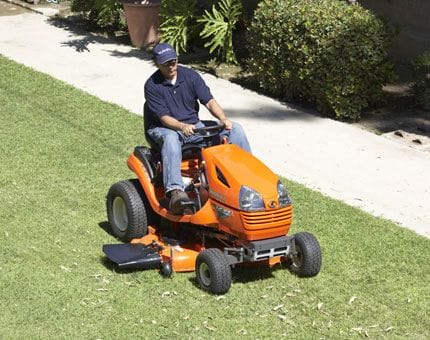

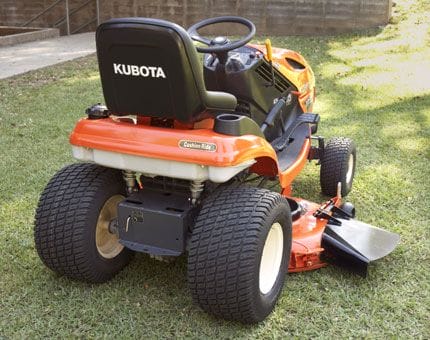

Equipped with a host of features, the T-Series can satisfy the most demanding homeowners. That’s because their hydrostatic transmission, deep mower deck, sleek design, and choice of engines make them ideal for a wide range of residential jobs.
The hydrostatic transmission (HST) makes operating the T-Series easier and more precise than ever. A single pedal controls both speed and direction changes quickly, without shifting or clutching. This system keeps your hands free for precise steering at all times, which is especially important when maneuvering around trees and shrubs or working in confined spaces.
FEATURES
Large rear tires
Quick-attach V-frame
High-back seat
Easy mower lift lever
Cushon ride suspension
Cutting height adjustment
Full-flat operator platform
Hydrostatic transmission
One-step parking brake
Cruise control
SPECIFICATIONS OVERVIEW
Model
T1880
Engine
Model
GH540V
Type
OHV air-cooled gasoline engine
Total displacement
32.6 cu. In. (535 cc)
Gross horse power
18 HP (13.4 kW)
Transmission
Hydrostatic transmission
Traveling speed
0 to 5.6 mph (0 to 9 km/h)
Model
T2080
Engine
Model
GH710V
Type
OHV air-cooled gasoline engine
Total displacement
44.2 cu. In. (725 cc)
Gross horse power
20 HP (14.9 kW)
Transmission
Hydrostatic transmission
Traveling speed
0 to 5.6 mph (0 to 9 km/h)
Model
T2380
Engine
Model
GH720V
Type
OHV air-cooled gasoline engine
Total displacement
44.2 cu. In. (725 cc)
Gross horse power
23 HP(17.2 kW)
Transmission
Hydrostatic transmission
Traveling speed
0 to 5.6 mph (0 to 9 km/h)
IMPLEMENTS

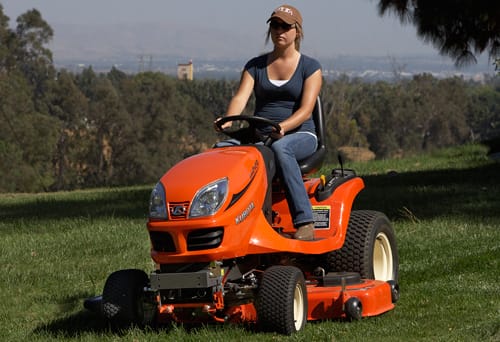

GR2120
FEATURES
Engine
3-cylinder diesel engine generating 21 HP, liquid-cooled and powered via indirect mechanical injection. Equipped with a unique E-CEDIS combustion chamber, this engine offers very low fuel consumption.
Transmission
Just one look at the undercarriage of the mower proves that the GR is a professional machine. Its mower deck is not powered by a rubber belt but by a sturdy bevel shaft. Hydrostatic drivetrain means no clutch and changing direction with a single pedal. This feature increases the operator’s comfort, as does power steering. Permanent 4×4 allows the mower to operate in difficult conditions, for example in hilly areas.
Mower deck
Standard mower deck with the width of 1220 mm guarantees fast and efficient lawn mowing. It is height adjustable between 250 and 1020 mm by means of a convenient dial. The tunnel between the mower deck and the grass container is equipped with special flaps to help the operator remove jammed grass. This can be done from the operator’s seat.
Grass container
Standard features of the mower include a 450-liter grass container with ground-level-dump. The container is operated from the operator’s seat.
SPECIFICATIONS
GR2120
ENGINE
Type
Diesel, 3-cylinder, water cooled, mechanical indirect injection
Power output
KM
21,0
Total displacement
cm3
778
Fuel tank capacity
L
18
TRANSMISSION
Transmission type
permanent 4×4, disengagement of the inside wheel during a sharp turn to achieve a better turning radius
Main gearbox
Hydrostatic
Max speed
km/h
10
Brakes
Internal expanding brake
Rear differential lock
N/A
Steering
Hydrostatic power steering
PTO
PTO type
No data
PTO clutch
Mechanical, multidisc, wet
DIMENSIONS AND WEIGHT
Total length
mm
2880
Total height
mm
1205
Total width
mm
1280
Thread
Front
mm
825
Rear
mm
820
Standard tire size
16×7,50-8 , 23×10,50-12
Turning radius
m
No data
Weight in standard spec.
kg
515
MOWER DECK SPECIFICATIONS
Number of blades
3
Mowing width
mm
1220
Mowing height
mm
250-1020
Mowing height adjustment
Dial under the operator’s seat
Mower deck attachment
Jointed shaft
Rising the mower deck
Hydraulic, with a lever
Grass evaculation
To the rear, with a flap for unblocking obstructions
Minimum radius of unmowed lawn
cm
100
GRASS CONTAINER
Container capacity
L
450
Dumping height
mm
On ground level
Container overfill sensor
Standard
FURTHER STANDARD FEATURES
Mower deck 1220 mm, grass container 450 L
OPTIONS
Rear deflector, mulching kit, side discharge mower deck
IMPLEMENTS
