GZD15 Zero Turn Mowers

FEATURES

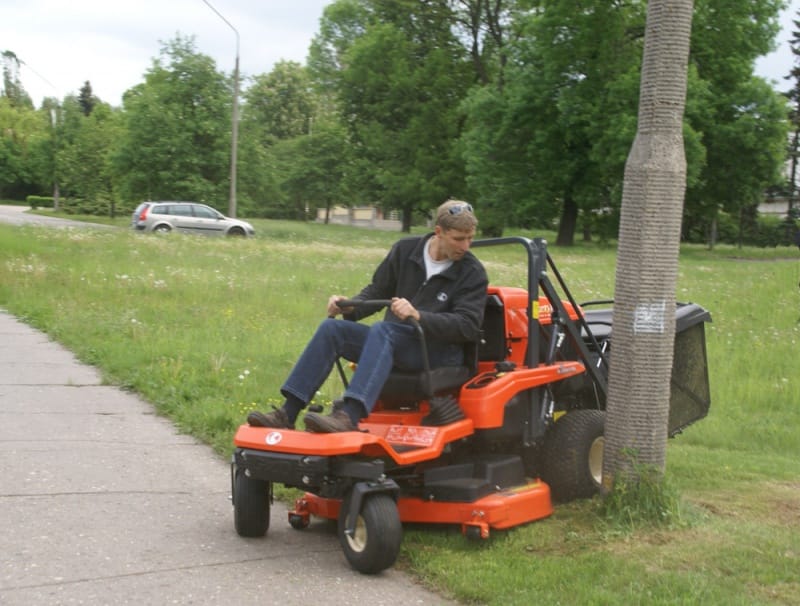

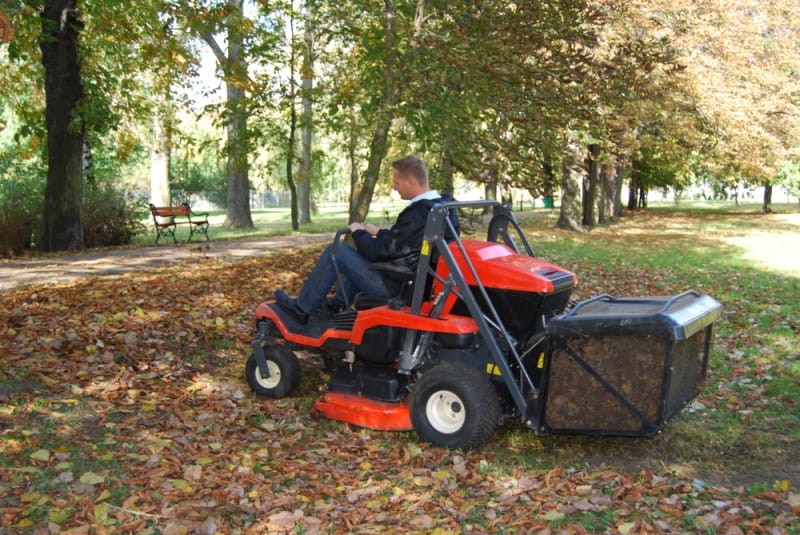

Engine 2-cylinder, liquid-cooled diesel engine generates 15 HP and high torque, and offers minimum fuel consumption of just 0,7 liter per 1 hour of work. Steering GZD15 offers a unique zero-turn steering system. It is operated by two levers and each one controls the power transmitted to one wheel. When turning, the wheels may rotate in opposite directions and that makes the mower turn in one spot. This feature becomes useful in parks and gardens. Transmission Bevel shaft powering the mower deck and bevel gear powering the rear wheels are best proofs that GZD15 is a professional machine. Sturdy hydrostatic transmission allows the operator to select the driving direction and driving speed by pushing the steering levers forward or backward. Mower deck Standard mower deck with the width of 1070 mm guarantees fast and efficient lawn mowing. It is height-adjustable between 250 and 1270 mm by means of a convenient dial. The tunnel between the mower deck and the grass container is equipped with special flaps to help the operator remove jammed grass. This can be done from the operator’s seat. Grass container As standard, the mower is equipped with a 400-litre grass container with ground-level-dump. Optionally, this model is available with a high-dump grass container that allows grass to be dumped at the height of 1,8 m, directly onto a trailer. SPECIFICATIONS

			GZD15 LD	GZD15 HD
ENGINE
Type			Diesel,2-cylinder, water cooled, mechanical and indirect injection	Diesel,2-cylinder, water cooled, mechanical and indirect injection
Power output		HP	15	15
Total displacement		cm3	599	599
Fuel tank capacity		L	20	20
TRANSMISSION
Transmission type			Rear wheel drive
Main gearbox			Hydrostatic	Hydrostatic
Max speed		km/h	13.5	13.5
Brakes			One brake – mechanical, multidisc, wet	One brake – mechanical, multidisc, wet
Rear differential lock			N/A	N/A
Steering			Hydrostatic, controlled by two levers	Hydrostatic, controlled by two levers
PTO
PTO type			Independent, equipped with a brake	Independent, equipped with a brake
PTO clutch			Multidisc, wet, hydraulically controlled	Multidisc, wet, hydraulically controlled
DIMENSIONS AND WEIGHT
Total length		mm	2785	2785
Total height		mm	1115	1345
Total width		mm	1200 (min. thread)	1200 (min. thread)
Thread	Front	mm	950	950
	Rear	mm	800	800
Standard tire size			Front: 15 x 6.00 – 6  4PR; Rear: 20 x 10,0 – 8  4PR	Front: 15 x 6.00 – 6  4PR; Rear: 20 x 10,0 – 8  4PR
Turning radius		m	0!	0!
Weight in standard spec.		kg	510	540
MOWER DECK SPECIFICATIONS
Number of blades			2	2
Mowing width		mm	1070	1070
Mowing height		mm	250-1270	250-1270
Mowing height adjustment			Dial under the operator seat, 16 height settings	Dial under the operator seat, 16 height settings
Mower deck attachment			Jointed shaft	Jointed shaft
Rising the mower deck			Hydraulically, by  a pedal	Hydraulically, by a pedal
Grass evaculation			To the rear, with a flap for unblocking obstructions	To the rear, with a flap for unblocking obstructions
GRASS CONTAINER
Container capacity		L	400	400

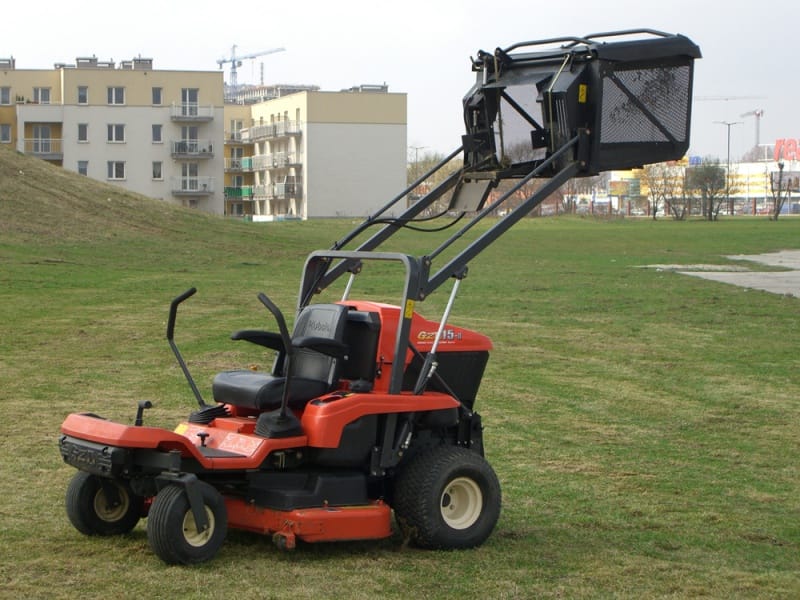

Dumping height		mm	On ground level	Max 1800
Container overfill sensor			N/A	N/A
FURTHER STANDARD FEATURES
107 cm mower deck, 400 litre grass container (LD: low dump or HD: high dump)
OPTIONS
Deflector for mowing without a grass container

---
